CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light

Basic Information
Place of Origin: China
Brand Name: HAISEN
Certification: CE
Model Number: HD401S CR
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Detail Information
Operating Voltage: 120~277 VAC 50/60Hz Switching Capacity: Max.3.0A@120Vac,Max.2.0A@277Vac
Hold Time: 5s/1min/5min/10min Daylight Threshold: 2Lux/10Lux/50Lux/Disable
Microwave Frequency: 5.8GHz±75MHz Microwave Power: <0.3mW
Interfaces: 4-pole Pluggable Clamp Terminal(L,N,N,L?for 0.75-1.5mm2 Cable Life Time: 50,000 Hours
High Light:

microwave switch occupancy sensor

,

light on off sensor


Product Description

CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light





Features:

  • HD401S CR is an innovative and active motion detector with HF system 5.8GHz.
  • It automatically switches on/off light based on motion and ambient light level.
  • Can control all kinds of lamps, for example, halogen, fluorescent and LED lights.
  • Compact size and small casing, suitable to fix within most luminaires.
  • Motion can be detected through plastic, glass and thin non-metal materials.

CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light 0
Detailed Product Description

   Operating voltage    120~277 VAC 50/60Hz
   Switching capacity    Max.3.0A@120Vac,Max.2.0A@277Vac
   Stand-by power    <1W
   Detection area    10%/50%/75%/100%
   Hold time    5s/1min/5min/10min
   Daylight threshold    2Lux/10Lux/50Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Interfaces    4-pole pluggable clamp terminal(L,N,N,L?for 0.75-1.5mm2 cable
   Mounting height    Max.6m(ceiling mounted);Max.3m(wall mounted)
   Detection range    Max.ø14m(ceiling mounted);Max.10m(wall mounted)
   Detection angle    30°-150°
   Operating temperature    -20°C~+60°C
   IP rating    IP20
   Life time    50,000 hours
   Warranty    5 years

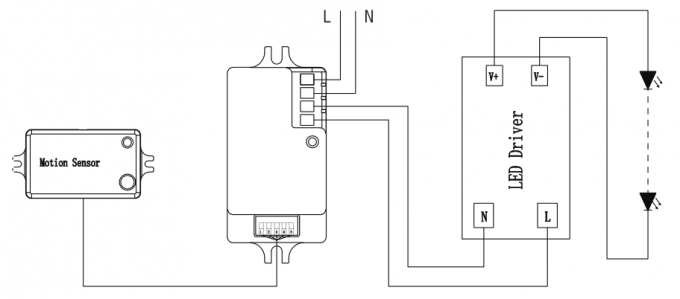

Wiring diagram

CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light 1

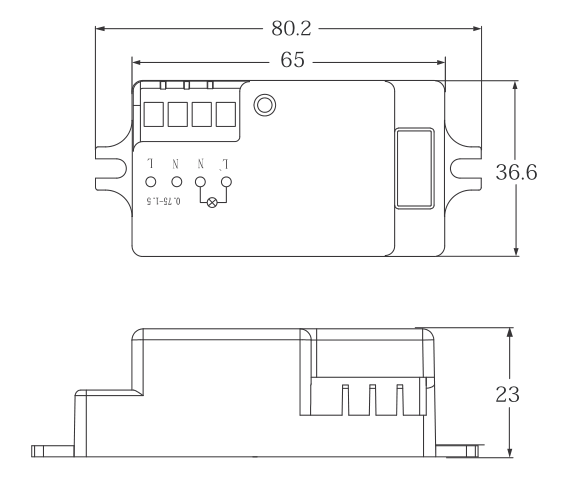

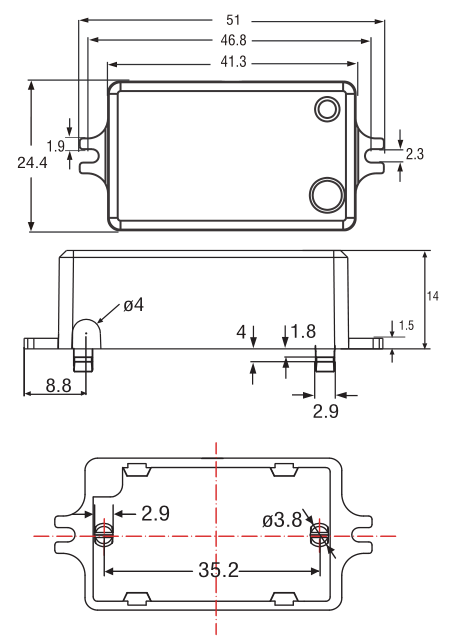

Mechanical structure(mm)


CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light 2

CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light 3

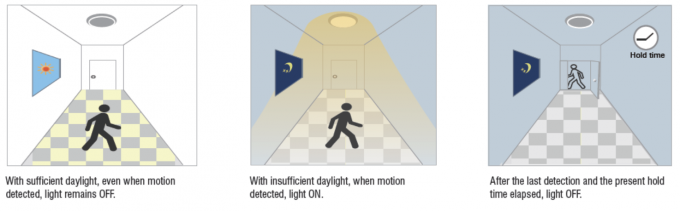

Detection coverage
CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light 4Mounting height---Max.6m(ceiling mounted);Max.3m(wall mounted)
Detection range---Max.ø14m(ceiling mounted);Max.10m(wall mounted)

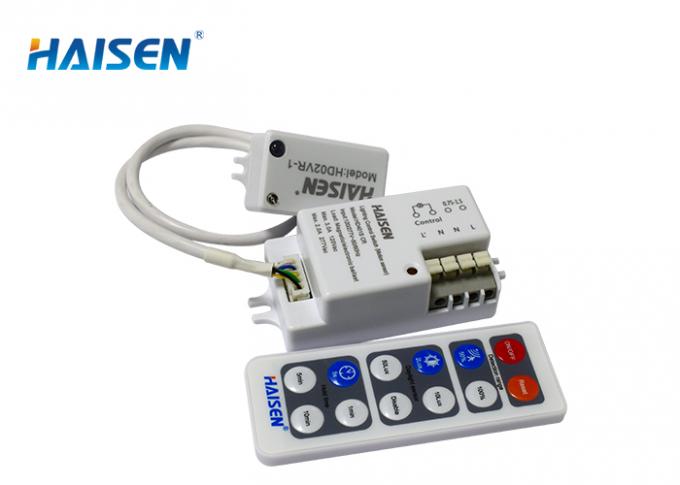

Demo

CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light 5
Note: MPlease refer to the instruction of HD02R for settings; it's only ON/OFF function, standby period and standby dimming level don't work.
HD02VR-1 Wire diameter 4mm,Standard Version Cable Length 30cm(can be customized).

Application
CE Approved On Off Switch Sensor Compact Design 120-277VAC For Ceiling Light 6
