High Frequency 100W LED Panel Motion Sensor For Lights Columnar Antenna

Basic Information
Place of Origin: China
Brand Name: HAISEN
Certification: TUV CE RED
Model Number: HD011SR
Minimum Order Quantity: 100PCS
Price: Negotiation
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: Negotiation
Supply Ability: 100000pcs per month
Contact Now
Detail Information
Microwave Frequency: 5.8GHz±75MHz Microwave Power: <1mW
Design: Columnar Antenna Design Approval: TUV CE SAA RED
Working Voltage: 220~240 VAC 50/60Hz Switching Capacity: Max.100W
Detection Angle: 30°-150° Operating Temperature: -25°C~+60°C

Product Description

High Frequency 100W Microwave Indoor Motion Sensors For Lights Columnar Antenna

Features:
1. On/ Off Function.
2. Ceiling Mounted Version.
3. Stand-by Power: ≤0.5W.
4. Max. Mounting Height: 4.5m.
5. Rod Antenna Design.
6. Suitable for ceiling/tri-proof/panel Light.
7. Fuctions such as detection area, hold time and daylight sensor can be set via Remote control.

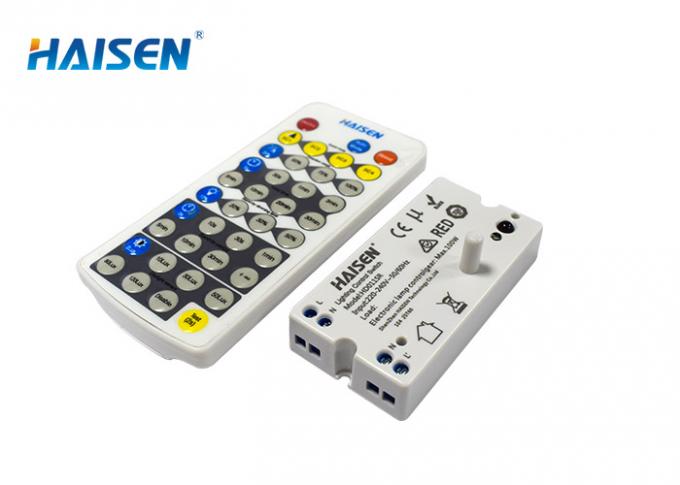

High Frequency 100W LED Panel Motion Sensor For Lights Columnar Antenna
Description:
HD011SR On/Off Control For Ceiling/Tri-panef/panel lights,Rod Antenna Design size of 76.9*39.9*27.7mm, suitable for different led fittings.Unique design with loop in and loop out, easy to instal.Detection area, hold time and daylight sensor are selectable via Remote control,5.8GHz high frequency microwave.4-pole press-in terminal (L, N,N,L′),easy assembly.Detection area, time delay and daylight threshold can be precisely set via Remote control setting.
Detailed Product Description

   Function   ON/OFF Function
   Operating voltage   220~240 VAC 50/60Hz
   Switching capacity   Max.100W
   Stand-by power   ≤0.5W
   Detection area   50%/100%
   Hold time   5s/1min/5min/10min
   Daylight threshold   2Lux/10Lux/50Lux/Disable
   Microwave frequency   5.8GHz±75MHz
   Microwave power   <1mW
   Interfaces   4-pole pluggable clamp terminal (L,N,N,L’) for 24-14AWG cable
   Mounting height   Max.4.5m(ceiling mounted)
   Detection range   Max. ø 12m(ceiling mounted)
   Detection angle   30°-150°
   Operating temperature   -25°C~+60°C
   Size   76.9*39.9*27.7mm
   IP rating   IP20
   Warranty   5 years

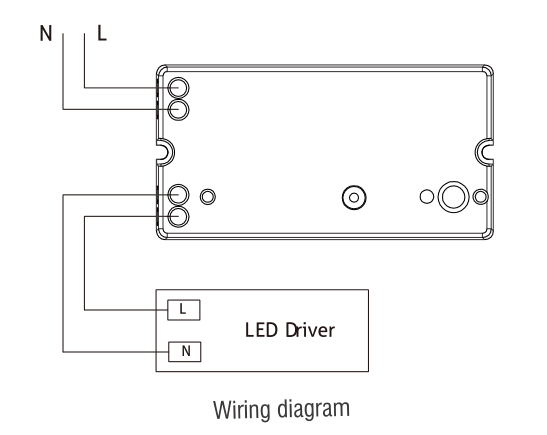

Wiring diagram
High Frequency 100W LED Panel Motion Sensor For Lights Columnar Antenna

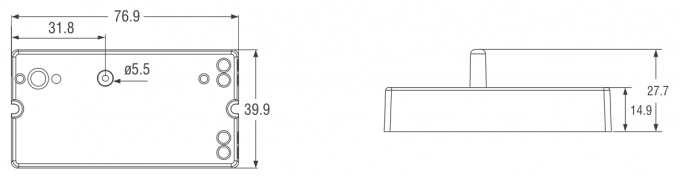

Mechanical structure(mm)
High Frequency 100W LED Panel Motion Sensor For Lights Columnar Antenna

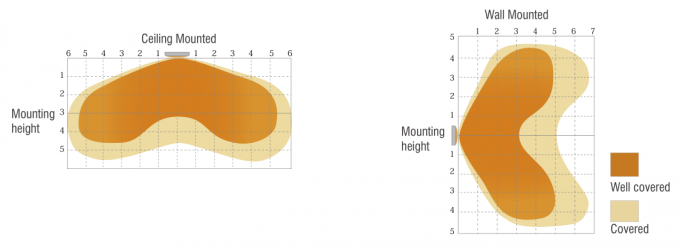

 Detection coverage
High Frequency 100W LED Panel Motion Sensor For Lights Columnar Antenna

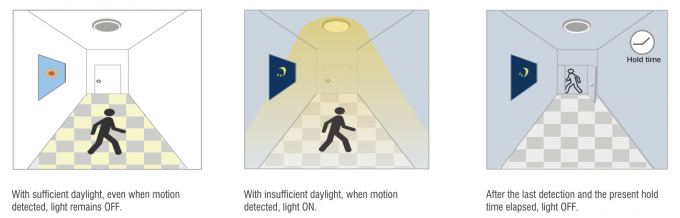

Demo
High Frequency 100W LED Panel Motion Sensor For Lights Columnar Antenna
Application
High Frequency 100W LED Panel Motion Sensor For Lights Columnar Antenna
