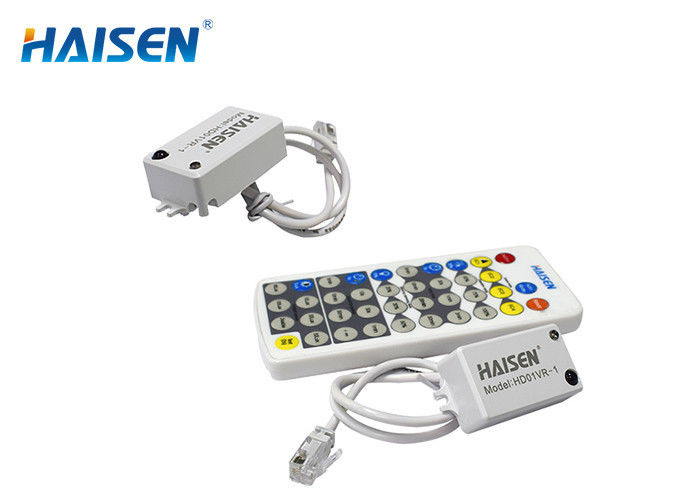

Long Range 5V TTL DC Motion Sensor Remote Control 12VDC Operated

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE RoHS
Model Number: HD01VR-1
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: USD3.7-4.5/PCS
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications Product Description Request A Quote
Specifications
Specifications
Output: 5V PWM/5V TTL
Operating Temperature: -20°C~+55°C
Operating Current: 30mA±5%
Microwave Frequency: 5.8GHz±75MHz
Operating Voltage: 12VDC
Hold Time: 5s/30s/1min/3min/5min/10min/20min/30min
High Light:

5V TTL DC Motion Sensor

,

30mA DC Motion Sensor

,

12VDC Long Distance Motion Detector

Product Description

Long Range 5V TTL DC Motion Sensor Remote Control 12VDC Operated



Long Detection Range Microwave Motion Senor Remote Control 12VDC



Features:

  • Compact design makes it suitable to fix within most lamps
  • Have passed CE RoHS certificate
  • Offer on off and dimming function
  • DC input design, With DC operation voltage from LED driver, no need extra power from line. Work with 1-10v dimmable led driver for 2-step dimming function. Particularly suitable for price sensitive luminaries.
  • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via remote control

Product Description

Safety & EMC Approval CE, ROHS
Operating Environment Operating Temperature -20°C~+55°C
Wireless Parameters Operating Frequency 5.8 GHz ±75 MHz
Output 5V PWM/5V TTL
Sensor Parameters Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
Detection angle 30°-150°
Detection Area 25%/50%/75%100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Mounting Height Max.6m/19.68ft
Detection range Max.14m/45.92ft
Input Operating voltage 12 VDC
Operating current 30mA±5%
Others Warranty 5 years
IP rating IP 20
Packaging Requirement Bubble pack, paper flat, outer carton.
Installation Installed inside lamps
