Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HAISEN |
| Certification: | TUV RED CE |
| Model Number: | HD07V-CR |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiation |
| Packaging Details: | Bubble pack, paper flat, outer carton. |
| Delivery Time: | 1-3 days for sample order, 1-2 weeks for bulk order |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |

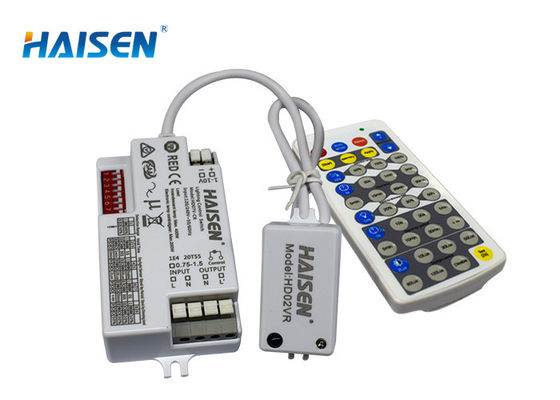

Dimming By 1-10V Microwave Movement Sensor 120-277VAC Operated 5.8GHz Frequency
Detailed Product Description
| Operating voltage | 120~277 VAC 50/60Hz |
| Switching capacity | Max.200W(Control gear) Max.400W(Incandescent lamp) |
| Stand-by power | <1W |
| Detection area | 50%/100% |
| Hold time | 5s/30s/1min/10min |
| Daylight threshold | 2Lux/10Lux/50Lux Disable |
| Stand-by period | 0s/30s/20min/+ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Interfaces | 6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-) for 0.75- 1.5mm2 cable |
| Mounting height | Max.6m(ceiling mounted);Max.3m(wall mounted) |
| Detection range | Max.ø14m(ceiling mounted);Max.10m(wall mounted) |
| Detection angle | 30°-150° |
| Operating temperature | -30°C~+70°C |
| IP rating | IP20 |
| Life time | 50,000 hours |
| Warranty | 5 years |
Wiring diagram
Mechanical structure(mm)
DIP Switch Setting
Detection coverage
Demo
Application
