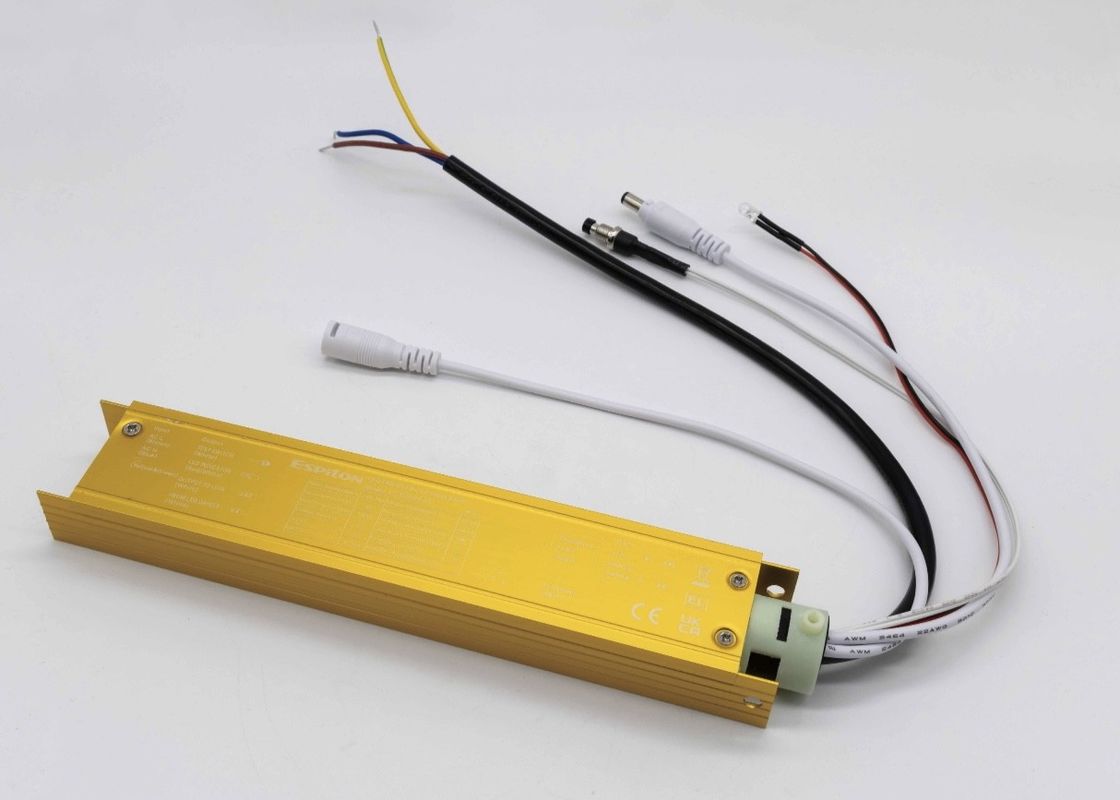

220-240Vac Led Emergency Converter Used With Ternary Lithium Battery

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE UKCA
Model Number: ES-EOF02-05-01
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time: Standard Models Within 3 Weeks
Payment Terms: D/A, D/P, T/T
Supply Ability: 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Specifications Product Description Request A Quote
Color: Yellow
Products: LED Emergency Driver
Battery Charging Current: 300mA(Max)
Battery Charging Time: <24h(Max)
Battery Specifications: Ternary Lithium Battery
IP Rating: IP20
High Light:

240Vac Led Emergency Converter


Ternary Lithium Battery Led Emergency Converter


IP20 CE Version Emergency LED Driver

Product Description

220-240 Vac Led Emergency Converter Used With Lithium Battery


  • Constant output power
  • Used with lithium battery
  • Suits forLED fitting with external LED driver
  • Accessary test switch and LED indicator
  • With multi-protection function:

​         -battery overcharge protection
         -battery over-discharge protection
         -output overload protection
         -short-circuit protection

         -Open load protection
Parameter Table

Input voltage 220-240 Vac 50/60Hz
Input Current 0.06A(Max) 230V AC
Input Power
Power Factor 0.5
Load output voltage 20-60VDC
Load output current 300-30mA
Battery charging current 200mA(Max)
Battery charging time 24h(Max)
Battery specifications Ternary lithium battery
Storage temperature 0-60℃
Maximum shell temperature
Storage temperature -20-40℃
Dielectric Voltage withstan
1.5KVac 5mA 60S (Input to the housing)
3KVac 5mA 60S (Input to output)
IP Rating IP20
LED Indication

LED Green




Model Selection table

Model No. Input voltage Output voltage Output Current Lithium battery Emergency time
Emergency power
220-240Vac 50/60Hz
20-60V DC
3Hrs 2W
220-240Vac 50/60Hz 20-60V DC
3Hrs 3W
220-240Vac 50/60Hz 20-60V DC
220-240Vac 50/60Hz 20-60V DC



Dimension (Unit:mm)

220-240Vac Led Emergency Converter Used With Ternary Lithium Battery 0

Wiring Diagram
220-240Vac Led Emergency Converter Used With Ternary Lithium Battery 1220-240Vac Led Emergency Converter Used With Ternary Lithium Battery 2


Operation Instructions

1. Connect the wires according to the wiring diagram.
2. Power on L and N, and close the switch S1. At this time, the load light will turn on, the indicator light of the emergency power supply will turn green, and the emergency power supply is charged normally. Turn off this switch S1, the load light will go out.
3. Simulated emergency: close switch S1, turn on the load light, and then press the switch (TEST SWITCH), then switch to emergency power supply mode, the green light of the emergency power indicator will go out. Then release the switch(TEST SWITCH), at this time it should be switched to external drive power supply, the green light of the emergency power indicator will light up.
4. Power failure and incoming call, the phenomenon should be the same as simulated emergency.
Battery Application Notice

1.The battery should be recharged and discharged semiannually in normal use conditions.

2.Do not connect to the circuit when the battery is not use to prevent over-discharge of the battery due to self-consumption of the circuit board.

3.Please keep the battery from the heat source when installing and using, and only be allowed to use in certain working temperature range.

4.The battery should be stored in a cool and dry environment.

5.After long time storage, the battery is cycled every 6 months as required.
