Customized Detector 20*24*6.7mm IC Sensor Microwave For LED Bulb

Place of Origin CHINA
Brand Name HAISEN
Certification CE
Model Number HD043-01S
Minimum Order Quantity 500PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 2-3 weeks
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs/Month
Product Details
Operating Voltage 12VDC±5% Operating Current ≤30mA±5%
Microwave Frequency 5.8GHz±75MHz Detection Angle 30-150°(Without The Glass)
Detection Range Max.12m X 6m(øxH) Operating Termperature -20°C~60°C
Size 20*24*6.7mm IP Rating IP20
High Light

20*24*6.7mm IC Sensor

,

30mA IC Sensor

,

20*24*6.7mm LED Bulb Motion Sensor

Leave a Message
Product Description

Customized Detector 20*24*6.7mm IC Sensor Microwave For LED Bulb



12VDC 5V PWM Customized Detector On Off Switch Sensor 20*24*6.7mm For LED Bulb



Features:

1. 12VDC ON/OFF microwave sensor without housing for built-in installation.

2. Function well under the temperature of -20°C~+60°C.

3. Super compact design for very small and designed structure of decorated light (downlight / pendant).

4. Max. 12M detection area and 6M mounting height for widely used in big space like shopping center and showroom.

5. Customized size with special parameters to meet special requirements.



Detailed Specifications:

Operating voltage 12 VDC ±5%
Operating Current ≤30mA±5%
Stand-by power <0.5W
Detection area 100% (Could be customized)
Hold time 1min (Could be customized)
Daylight threshold 30Lux (Could be customized)
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Mounting height Max.6m(ceiling mounted)
Detection range Max.12x6m(øxH) (Could be customized)
Detection angle 30°-150°
Operating temperature -20°C~+60°C
Size 20*24*6.7mm (Could be customized)
IP rating IP20
Warranty 5 years



Customized Detector 20*24*6.7mm IC Sensor Microwave For LED Bulb 0



Wiring diagram





Mechanical Structure:

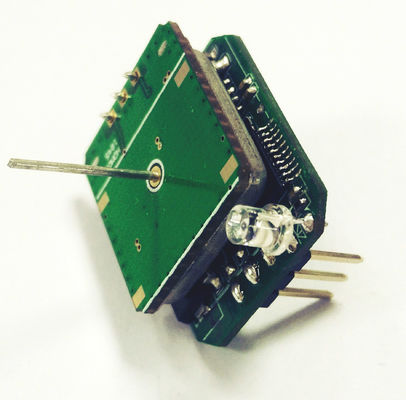

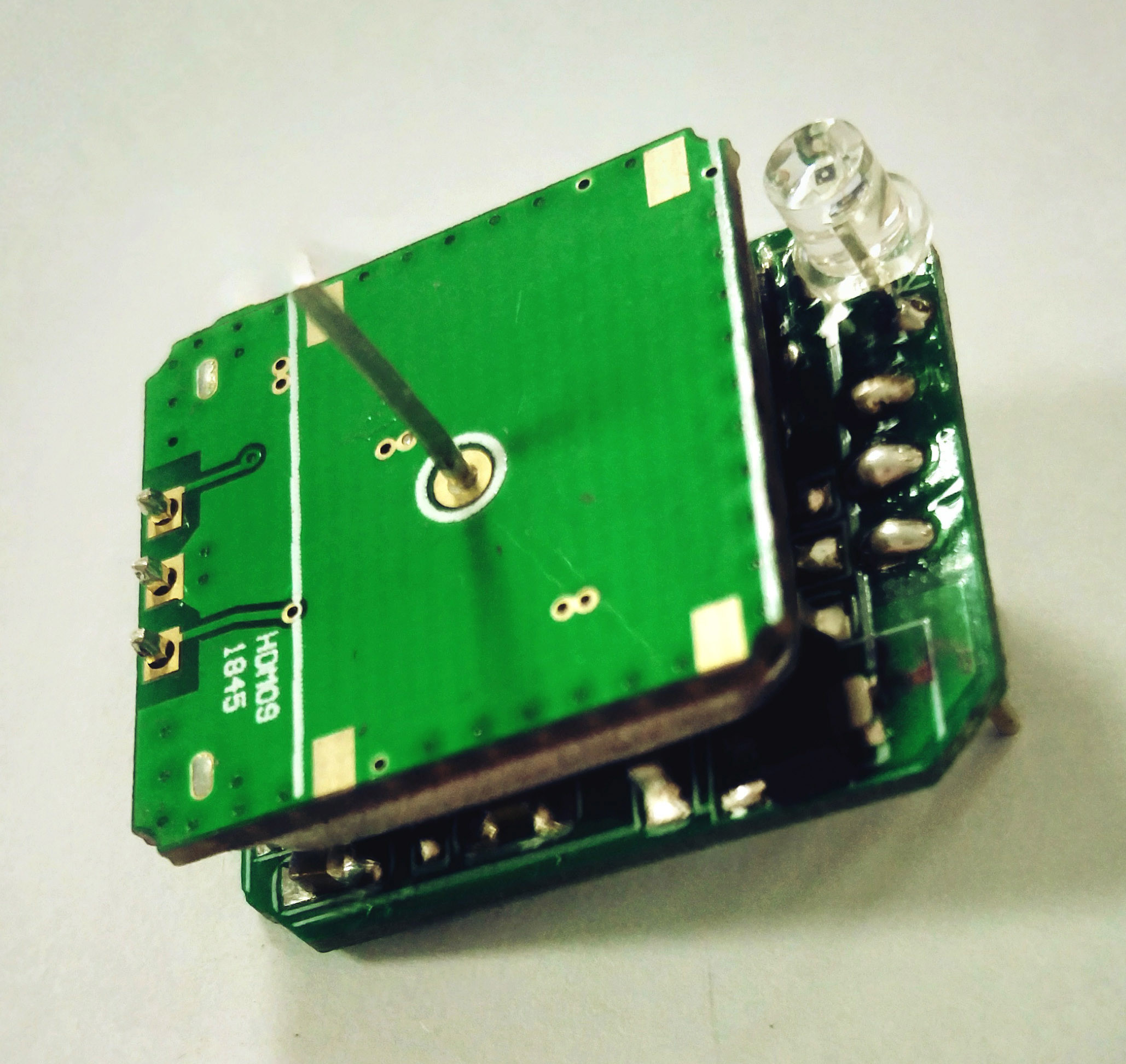

1. With the Rod Antenna, Daylight PD, The module could detect Movement and daylight to control the light automatically.

2. With the installation hole, the module could be easily installed onto the light board with a screw.





Dimensions:

Could be customized base on different requirement and lighting fixtures





Detection Area:

Could be customized base on different requirement and lighting fixtures







Application Demo:

Light keep off when ambient light is sufficient even detect movement;

Light turn on when detect movement and ambient light is insufficient;

when people leave, Light turn off after the hold on time.
