12VDC Input PWM Dimming Movement Detection Sensor ON OFF Control

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD0158-01S
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Size 20*7.5mm Detection 100%
Hold Time 1min Daylight Threshold 30Lux
Control Mode ON/OFF Output 5V PWM
Operating Current ≤30mA±5% Operating Voltage 12VDC ±5%
High Light

5V PWM Movement Detection Sensor

,

12VDC Detection Motion Sensor

,

12VDC Movement Detection Sensor

Leave a Message
Product Description

12VDC Input PWM Dimming Movement Detection Sensor ON OFF Control



12VDC Input ON/OFF Control 5V PWM Dimming Output 100% Detection Motion sensor



Features of ON/OFF Sensor:

1. 20*7.5mm super compact size

2. 3pins to be connected with LED lighting board

3. LED BULB and downlight application

4. Chip daylight PD to shorten the whole thickness

5. ON/OFF sensor applied in corridor, bathroom

6. Module & PCB Board integrated design



Dimmensions of DC Sensor:

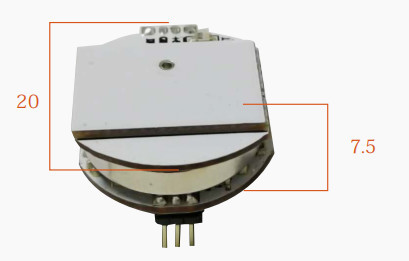

Size L*W*H:20*7.5mm
Operating temperature -20°C~+60°C
Warranty 5 years
IP grade IP 20

Detection area of DC sensor:



Motion detection 0.5~1.5m/s
Detection range Radius,2-6m (Ceiling mounted)
Mounting height Max,6m (Ceiling mounted)
Detection angle 30°-150°




Wiring diagram of DC sensor:

Operating voltage 12VDC ±5%
Operating current ≤30mA±5%
Output 5V PWM
Output 5V PWM
Control mode ON/OFF
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW



Mechanical structure of DC sensor:

Detection area 100%
Hold time 1min
Daylight threshold 30Lux
Connector Three position stitch output



Application:

With sufficient daylight,even when motion detected,light remains OFF.

With insufficient daylight,when motion detected, light ON.

After the last detection and the present hold time elapsed, light OFF.
