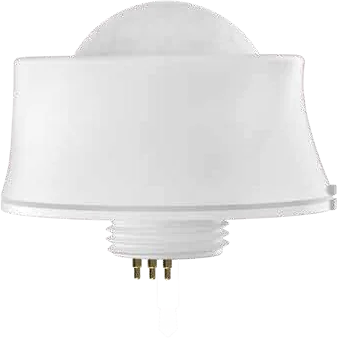

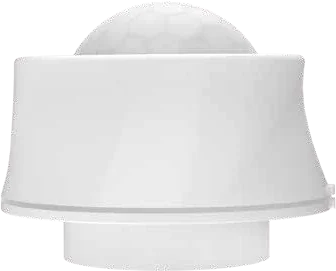

Bluetooth High-Bay PIR Sensor, 39 ft

Electrical

Input voltage

12–24 V DC

Input current

< 30 mA

Standby power

< 0.5 W at 12 V DC

Dimming

0–10 V

Detection

Sensor type

PIR

Detection angle

Ceiling-mounted 360°, wall-mounted ≤ 120° (Fresnel lens)

Max mounting height

12 m (39 ft)

Detection range

Radius 3–7 m (9.84–22.97 ft)

Bluetooth version

Control

HSE WISE app

Bluetooth range

30 m (98 ft)

Radio frequency

2.4 GHz (2402–2480 MHz)

Bluetooth version

5.4

Sensor on/off

Enable / Disable

Detection area

High / Medium / Low

Hold time

5 s / 30 s / 1–120 min (adjustment range 1 min)

Standby dimming level

1–100% (adjustment range 1%)

Standby period

0 s / 5 s / 30 s / 1–120 min (adjustment range 1 min) / ∞

Daylight threshold

Disable / 50–2000 lux (adjustment range 50 lux)

Environment

Operating temperature

−20 °C to +60 °C

IP rating

IP65

Mechanical

Connection

3-pin (-1), audio jack (-2) or Zhaga (-3)

Housing diameter

Ø 54 mm (2.13 in)

Compliance

Marks

cURus Recognized E529048 · FCC · RoHS · IP65
