AC / supply-line hook-up

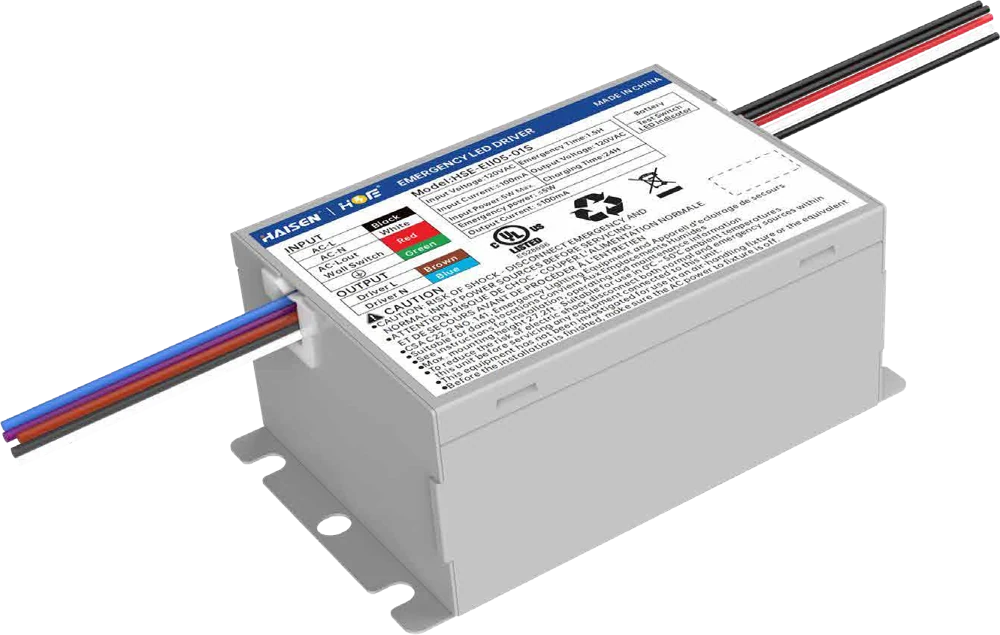

Single-Flex Emergency LED Driver, 9 / 15 W

HSE-EIH-01S · HSE-EIH-01S-B

A slim supply-line emergency LED driver, 9 or 15 W, for most 5–120 W LED luminaires, with left or right single-flex leads, in regular and Bluetooth versions.

Market: North America9 / 15 WLeft or right flexBluetooth (HSE WISE)Remote control
Buy online in the USShips from Houston, TX in 1–2 business days.

Other models and orders of 10 or more are quoted by our sales team. Get a quote

US service center, Houston TX 24 h service call 72 h on-site service
100–347 V ACInput
150–200 V DCOutput
9 / 15 WEmergency power
≥ 90 minEmergency duration

Highlights.

  • Suits most 5–120 W LED luminaires; 15–120 W luminaires need the 0/1–10 V dimming function.
  • Lithium battery.
  • Test plate with test button and LED indicator included.
  • Left or right single-flex mounting configuration.
  • Bluetooth version with infrared receiver; remote control optional.
  • Monthly and annual self-testing.

Tech specs.

HSE-EIH-01S · HSE-EIH-01S-B

Electrical

Input voltage
100–347 V AC, 50/60 Hz
Input current
0.08 A max
Input power
8 W max
Power factor
0.6 @ 100 V AC, 0.5 @ 347 V AC
LED load input
6 A max (AC)
Output voltage
150–200 V DC
Hook-up
Supply line (AC)
Compatible LED luminaires
9 W model: 9–80 W with 0–10 V dimming or 5–9 W without · 15 W model: 15–120 W with 0–10 V dimming or 5–15 W without

Battery & emergency

Emergency power
9 / 15 W
Emergency duration
≥ 90 min
Battery
Lithium
Battery capacity
9 W: 10.8 V / 2000 mAh · 15 W: 10.8 V / 3300 mAh
Recharge time
≤ 24 h
Self-test
Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months
Test switch
Test plate with test button and LED indicator
Remote control
Optional (Bluetooth version, with infrared receiver)

Environment

Ambient temperature
0–50 °C (32–122 °F)
Locations
Damp locations and plenum spaces

Mechanical

Size
22 × 1.57 × 1.06 in (560 × 40 × 27 mm)
Mounting
Left or right single flex
Wiring
AC input, AC output to the LED driver, 0/1–10 V dimming in and out, 12 V DC sensor lead
Accessories
15 wire nuts, test plate; remote control optional (Bluetooth version)

Compliance

Marks
cULus Listed (no file number printed)

Warranty

Warranty
5 years

Models & ordering

ModelRating / optionNotes / dimensions
HSE-EIH9-01SLBuy online9 W · left single flex · regular
HSE-EIH9-01SR9 W · right single flex · regular
HSE-EIH15-01SL15 W · left single flex · regular
HSE-EIH15-01SR15 W · right single flex · regular
HSE-EIH9-01SL-B9 W · left single flex · Bluetooth
HSE-EIH9-01SR-B9 W · right single flex · Bluetooth
HSE-EIH15-01SL-B15 W · left single flex · Bluetooth
HSE-EIH15-01SR-B15 W · right single flex · Bluetooth
