AC sensors, 220–240 V

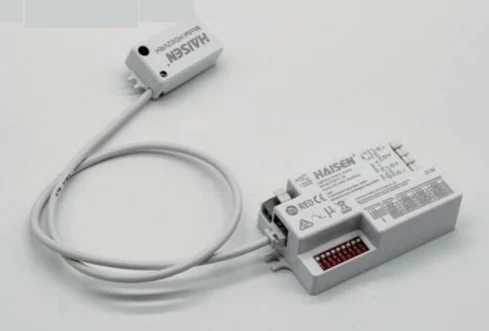

Detached Dimmable Microwave Sensor
HD05V-CRH · HD07V-CR
A detached 5.8 GHz microwave sensor with 1–10 V dimming for 120–240 V AC, set by DIP switch and remote control.
Market: EuropeMicrowave1–10 V dimmingDetachedDIP switchRemote control
120–240 V ACInput
Microwave, 5.8 GHzSensor
1–10 VDimming
7 m radiusDetection range
Highlights.
- 120–240 V AC input, 1–10 V dimmable.
- 5.8 GHz microwave motion sensor with dimming function.
- Detached design for more applications.
- Supports both DIP switch and remote control.
Tech specs.
HD05V-CRH · HD07V-CRElectrical
- Input voltage
- 120–240 V AC
- Dimming
- 1–10 V
- Control
- DIP switch and remote control
Detection
- Sensor type
- Microwave
- Frequency
- 5.8 GHz
- Installation height
- 15 m / 6 m (by version)
- Detection range
- 7 m radius
Environment
- Operating temperature
- −20 °C to +60 °C
- IP rating
- IP20
Compliance
- Marks
- TÜV · CE · RED · RoHS · IP20
Warranty
- Warranty
- 5 years
Models & ordering
| Model | Rating / option | Notes / dimensions |
|---|---|---|
| HD05V-CRH | ||
| HD07V-CR |
