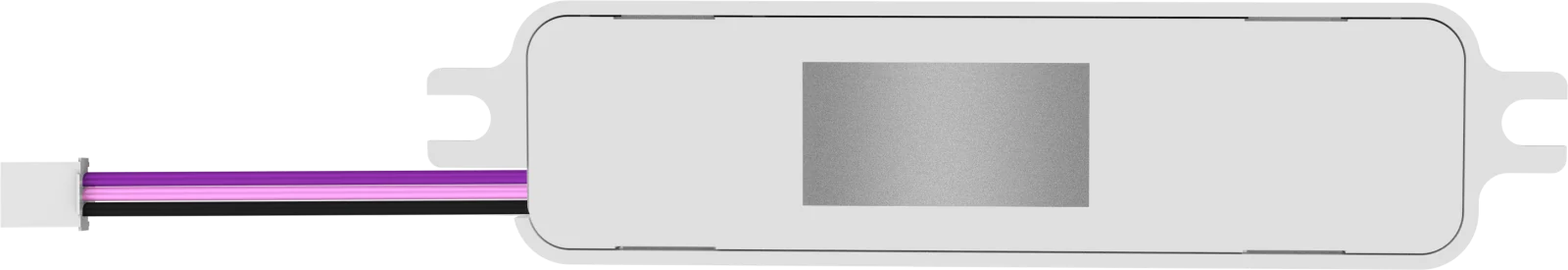

Integrated Bluetooth Microwave Sensor Module

Electrical

Input voltage

10–15 V DC

Standby power

< 0.5 W @ 10 V DC

Control method

0–10 V dimming

Detection

Sensor type

Microwave

Max mounting height

< 4 m (13 ft)

Functions

Daylight harvesting · photocell

Bluetooth version

Control

HSE WISE app

Bluetooth range

30 m (98 ft)

Radio frequency

2.4 GHz (2402–2480 MHz)

Bluetooth version

5.4

Detection area

High / Medium / Low

Max dim level

1–100%, continuously adjustable

Hold time

5 s / 30 s / 1–120 min (1 min steps)

Standby dimming level

1–100% (1% steps)

Standby period

0 s / 5 s / 30 s / 1–120 min (1 min steps) / ∞

Daylight threshold

Disable / 50–2000 lux (50 lux steps)

Manual dimming

10–100% in manual mode, 60–100% in sensor mode

Environment

Operating temperature

−25 °C to +60 °C

IP rating

IP20

Mechanical

Mounting

Magnet

Size incl. mounting tabs

79.48 × 18.5 × 14.1 mm (3.13 × 0.72 × 0.55 in)

Body length

67.38 mm (2.65 in)

Compliance

Marks

cURus Recognized E529048 · FCC · CE · RoHS · IP20
