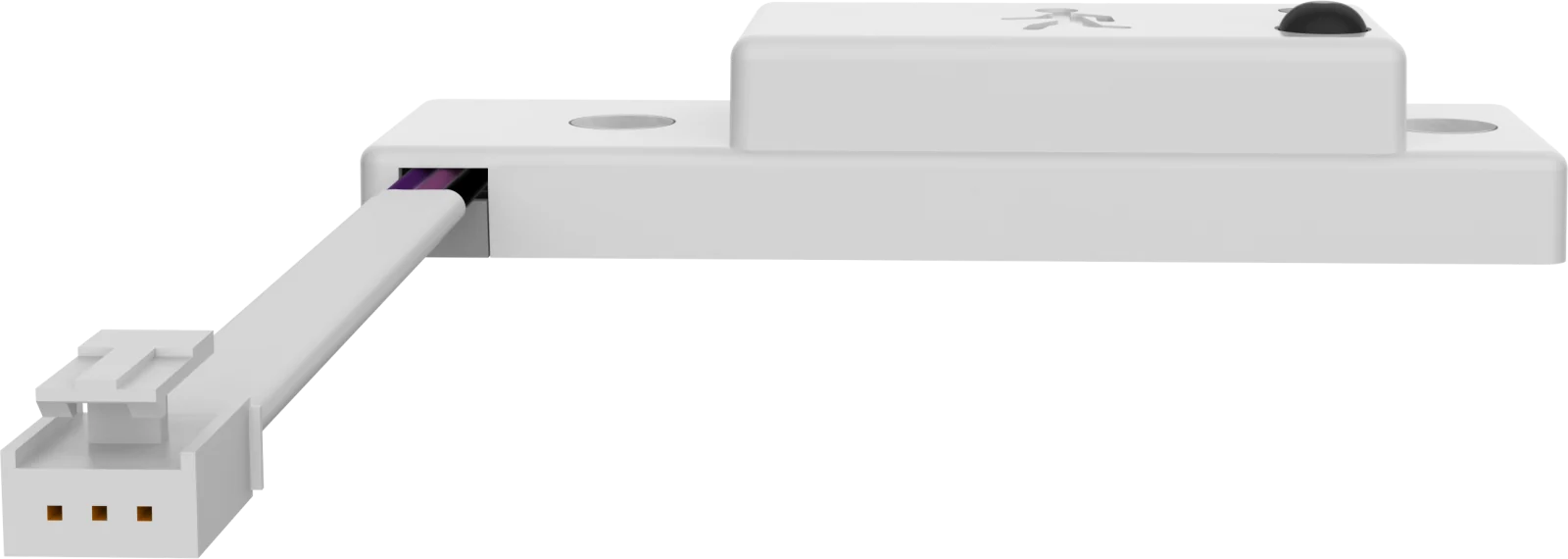

Slim Microwave Sensor, 19.68 ft

Electrical

Input voltage

12 V DC

Input current

< 30 mA

Standby power

≤ 0.5 W

Control method

0–10 V dim

Detection

Sensor type

Microwave

Frequency

5.8 GHz ± 75 MHz

Microwave power

< 0.3 mW

Detection angle

Ceiling mounted 360°, wall mounted < 150°

Max mounting height

6 m (19.68 ft), ceiling mounted

Detection range

Max. radius 8 m (26.24 ft), ceiling mounted

Settings — regular version

Control device

HD06R remote (purchased separately)

Detection area

25% / 50% / 75% / 100%

Hold time

5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min

Daylight threshold

2 / 10 / 30 / 50 / 80 / 120 / 200 / 250 / 300 / 350 / 400 Lux / Disable

Standby period

0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞

Standby dimming level

10% / 20% / 30% / 50%

Manual dimming

Supported: 10–100% in manual mode, 60%–100% in sensor mode

Environment

Operating temperature

−40 °C to +80 °C

IP rating

IP20

Mechanical

Mounting

Square module with magnet

Connection

Quick connector to the LED driver: DIM+, GND, 12V

Compliance

Marks

cURus Recognized E529048 · FCC · CE · RoHS · IP20

Warranty

Warranty

5 years
