Integrated Microwave Sensor, 0–10 V

Name: Integrated Microwave Sensor, 0–10 V
Brand: HSE
SKU: HSE-SM20L-5

HSE-SM20L-5

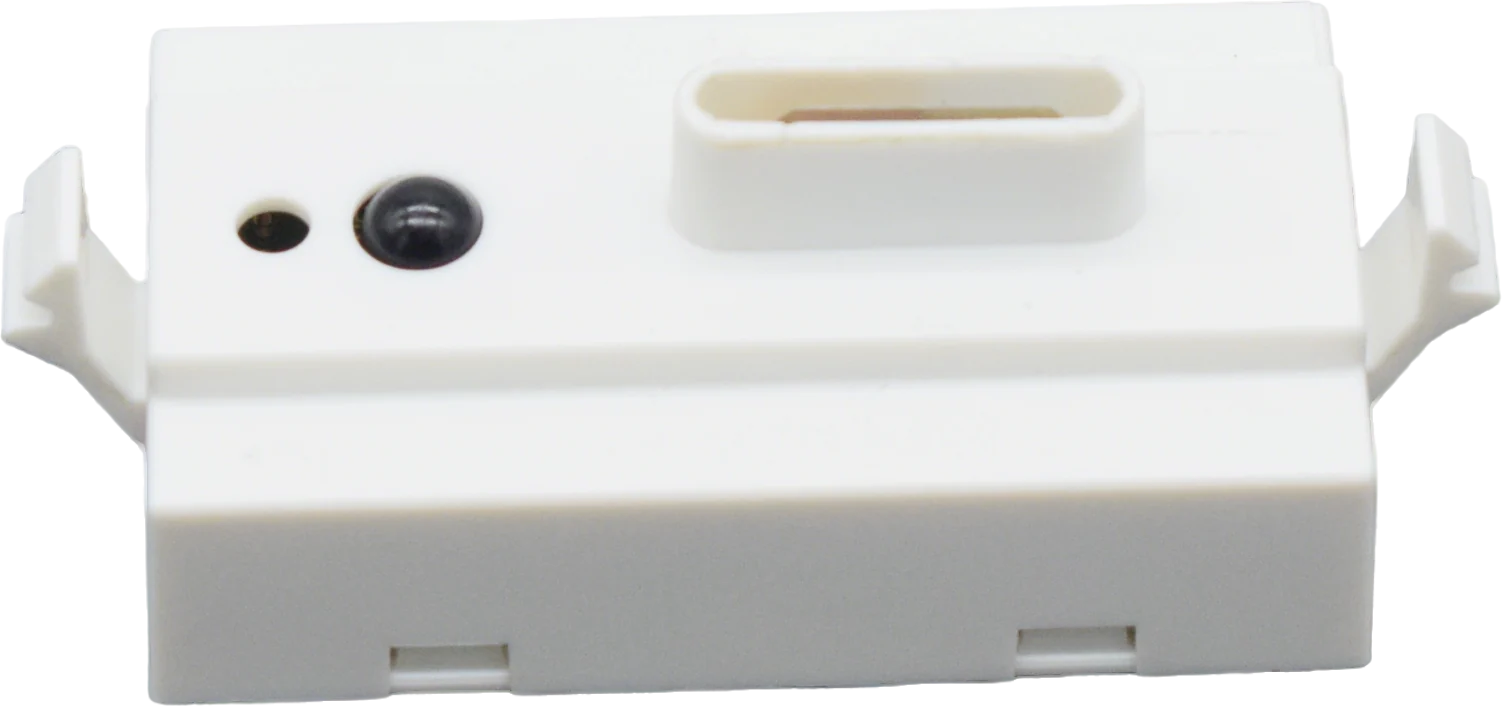

Microwave sensor module with 0–10 V dimming and automatic on/off daylight control, set with the HD06R remote or DIP switches, for panel, troffer, strip and wrap fixtures.

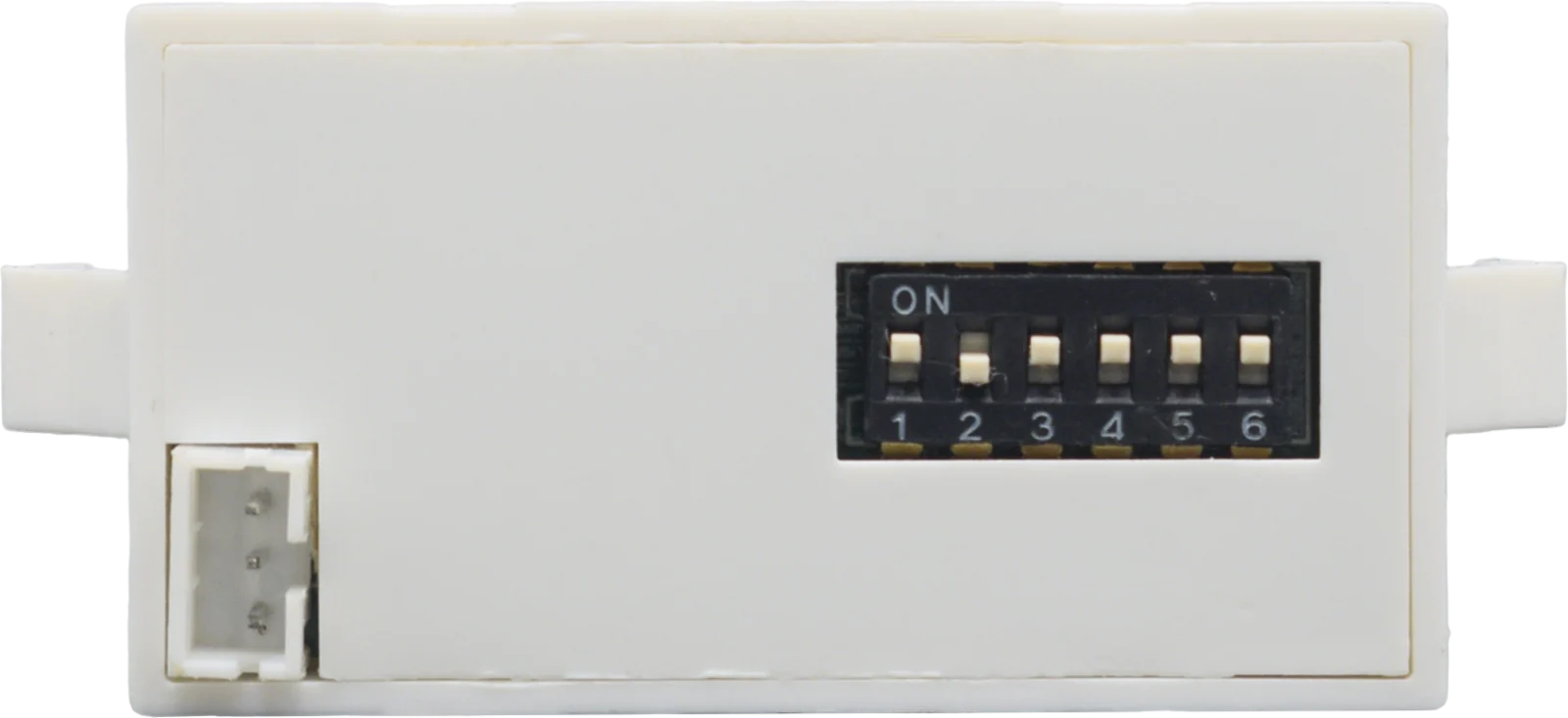

Remote or DIP switchesRemote controlDIP switch

Get a quote Order samples

US service center, Houston TX 24 h service call 72 h on-site service

10–15 V DCInput

Radius 3–6 m (9–19 ft)Detection range

360° ceiling · 150° wallDetection angle

0–10 VDimming

Highlights.

Automatic on/off control with the daylight sensor.
Selectable detection range, hold time and daylight threshold.
0–10 V dimming; set with the HD06R remote (purchased separately) or the manual DIP switches.
Standard mounting height 3 m (9 ft).
For panel, troffer, strip and wrap fixtures; 5-year limited warranty.

Tech specs.

HSE-SM20L-5

Electrical

Input voltage: 10–15 V DC
Input current: < 30 mA
Control method: 0–10 V

Detection

Sensor type: Microwave
Frequency: 5.8 GHz ± 75 MHz
Microwave power: < 0.3 mW
Detection angle: Ceiling mounted 360°, wall mounted 150°
Mounting height: Standard 3 m (9 ft)
Detection range: Radius 3–6 m (9–19 ft)

Settings — regular version

Control device: HD06R remote (purchased separately) & manual switches
Detection area: Remote: 25% / 50% / 75% / 100% · Manual: 50% / 100%
Hold time: Remote: 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min · Manual: 5 s / 30 s / 1 min / 10 min
Daylight threshold: Remote: Disable / 2 / 10 / 30 / 50 / 80 / 120 / 200 / 250 / 300 / 350 / 400 Lux · Manual: Disable / 50 Lux
Standby period: Remote: 0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / +∞ · Manual: 0 s / 1 min
Standby dimming level: Remote: 10% / 20% / 30% / 50% / 100% · Manual: 10% / 30%
