Zhaga Daylight, Microwave & PIR Sensors

Name: Zhaga Daylight, Microwave & PIR Sensors
Brand: HSE
SKU: HD06VCRH 7A

HD06VCRH 7A · HD06VCRH 7B · HD06VCRH 7C

Zhaga sensors for UFO high bays: HD06VCRH 7A daylight sensor and 7B microwave sensor (max. 15 m) with Zhaga Book 18 receptacle, and 7C PIR sensor head (max. 12 m); 0–10 V dimming.

Zhaga0–10 V dimmingIP65Remote control

Get a quote Order samples

US service center, Houston TX 24 h service call 72 h on-site service

10.5–15 V DCInput

7A daylight · 7B microwave · 7C PIRSensor

7B: 15 m (49.21 ft) · 7C: 12 m (39.37 ft)Max height

0–10 VDimming

Highlights.

HD06VCRH 7A and 7B are complete sensors: a functional module on a Zhaga Book 18 receptacle. HD06VCRH 7C is a PIR sensor head with Zhaga connection.
7A is a daylight sensor with photocell, daylight harvesting and ambient brightness learning; it does not detect motion.
7B is a 5.8 GHz microwave sensor for mounting heights up to 15 m (49.21 ft), with daylight priority (dusk/dawn) function.

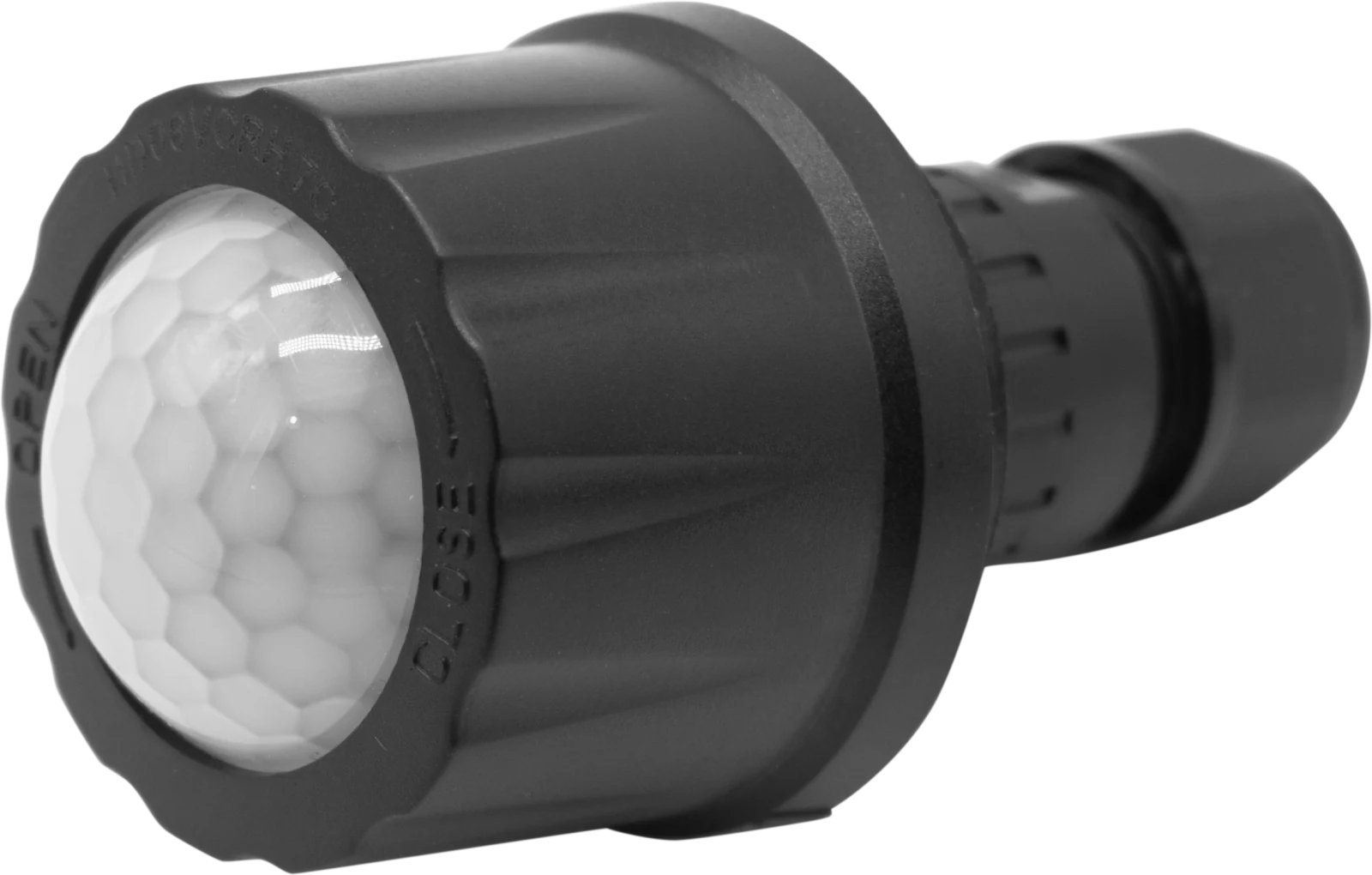

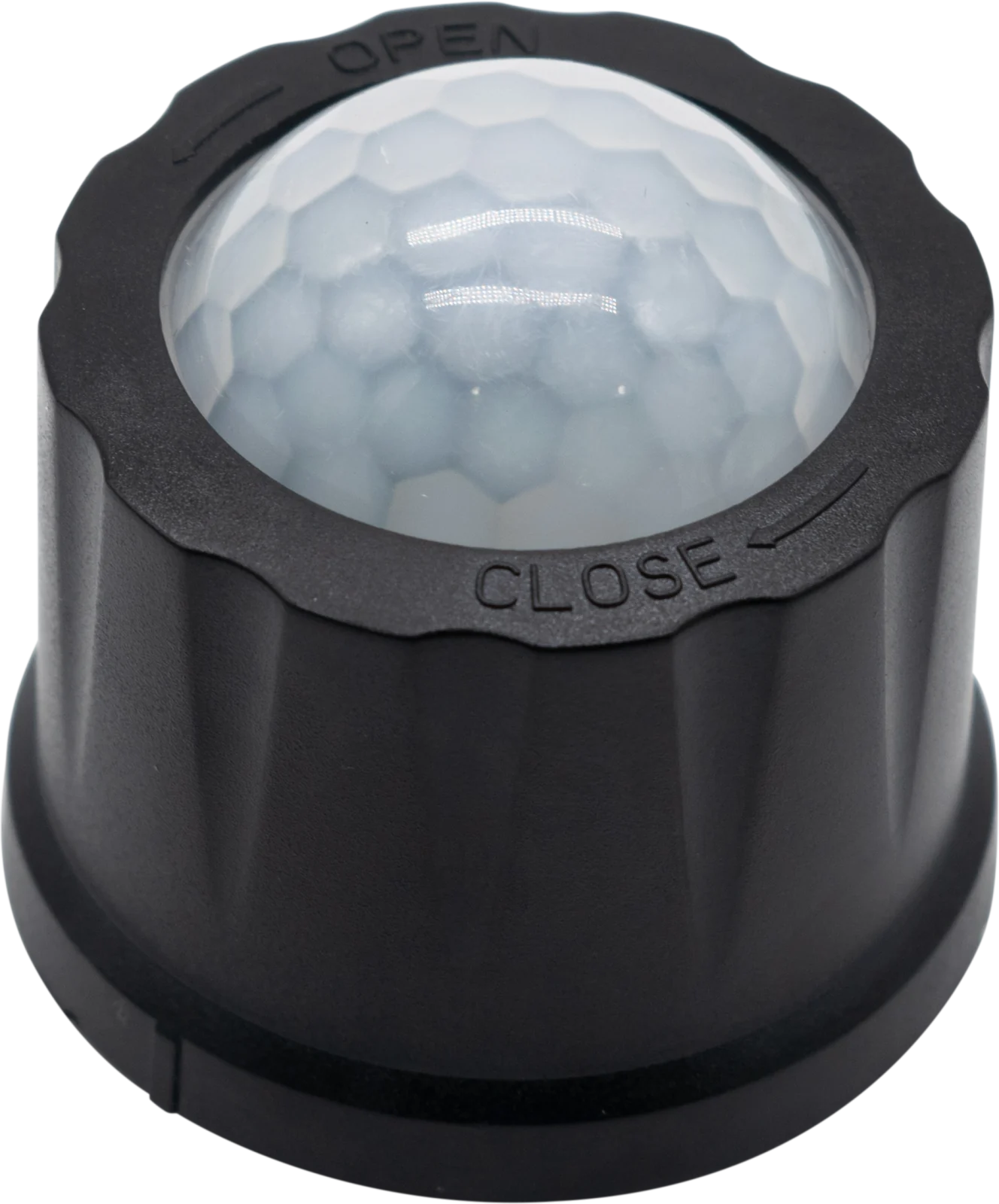

7C is a PIR sensor for mounting heights up to 12 m (39.37 ft).
0–10 V dimming; set by remote control (HD05R LCD remote on the 7A and 7B sheets).
IP65; 5-year warranty.

Tech specs.

HD06VCRH 7A · HD06VCRH 7B · HD06VCRH 7C

Electrical

Input voltage: 10.5–15 V DC
Input current: 7A: < 20 mA
Standby consumption: 7B: < 30 mA · 7C: < 15 mA
Dimming: 0–10 V

Detection

Sensor type: 7A: daylight only (does not detect motion) · 7B: microwave · 7C: PIR
Frequency: 7B: 5.8 GHz ± 75 MHz
Microwave power: 7B: < 0.3 mW
Max mounting height: 7B: 15 m (49.21 ft) · 7C: 12 m (39.37 ft); ceiling mounted
Detection range: 7B: max. Ø 16 m (52.49 ft) · 7C: radius 2–4 m; ceiling mounted
Motion detection speed: 7B: 0.5–1 m/s

Settings — regular version

Control: Remote control (HD05R LCD remote on the 7A and 7B sheets)
Detection area: 7B, 7C: 25% / 50% / 75% / 100%
Hold time: 7B, 7C: 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min
Daylight threshold: 7B: 2 / 10 / 30 / 50 / 80 / 120 lux / Disable · 7C: Disable / 400 / 350 / 300 / 250 / 200 / 120 / 80 / 50 / 30 / 10 / 2 lux
Standby period: 7B, 7C: 0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞
Standby dimming level: 7B, 7C: 10% / 20% / 30% / 50%
Photocell: 7A: 2 / 10 lux; light off when ambient brightness is 10 times the preset level
Daylight harvesting: 7A: 30 / 50 / 80 / 120 / 200 / 250 / 300 / 350 / 400 lux
Ambient brightness learning: 7A: set by remote control
Factory default: 7B: detection area 100% · hold time 5 s · daylight threshold Disable · standby period 0 s · standby dimming level 10%

Environment

Operating temperature: −20 °C to +60 °C
IP rating: IP65

Mechanical

Connection: Zhaga Book 18 receptacle (7A, 7B) · Zhaga connection (7C sensor head)
Receptacle wires: Black/White: VCC · Pink: GND/DIM− · Purple: DIM+ · Yellow: NC
Installation: Beside the UFO (7A, 7B, 7C) or inside the UFO (7B); align the base opening and twist to mount

Compliance

Marks: CE · RoHS · IP65

Warranty

Warranty: 5 years

Applications

High & low bay

Models & ordering

Model	Rating / option	Notes / dimensions
HD06VCRH 7A	Daylight sensor (photocell & daylight harvesting) · Zhaga Book 18 receptacle
HD06VCRH 7B	Microwave high-bay sensor · Zhaga Book 18 receptacle
HD06VCRH 7C	PIR high-bay sensor head · Zhaga connection
