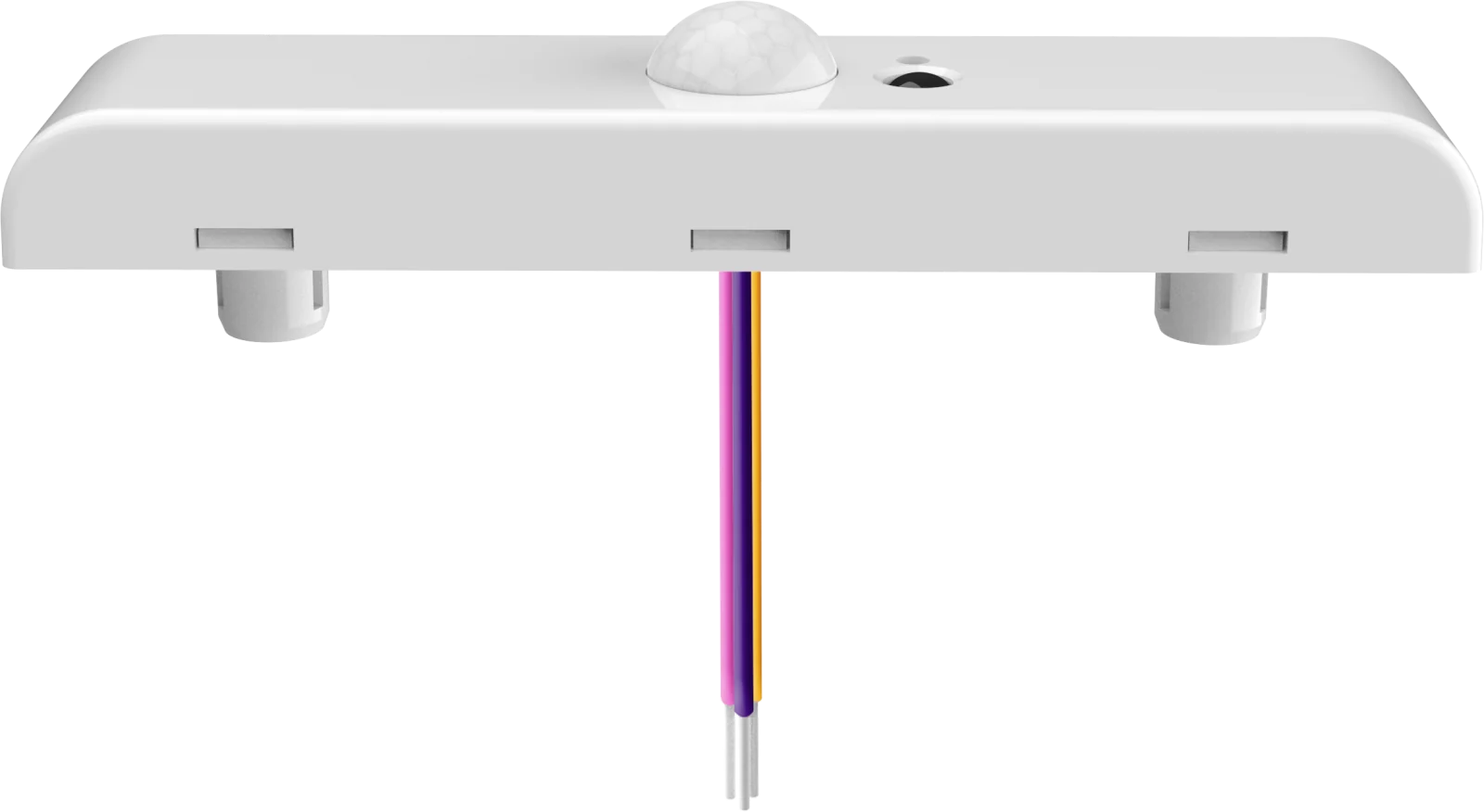

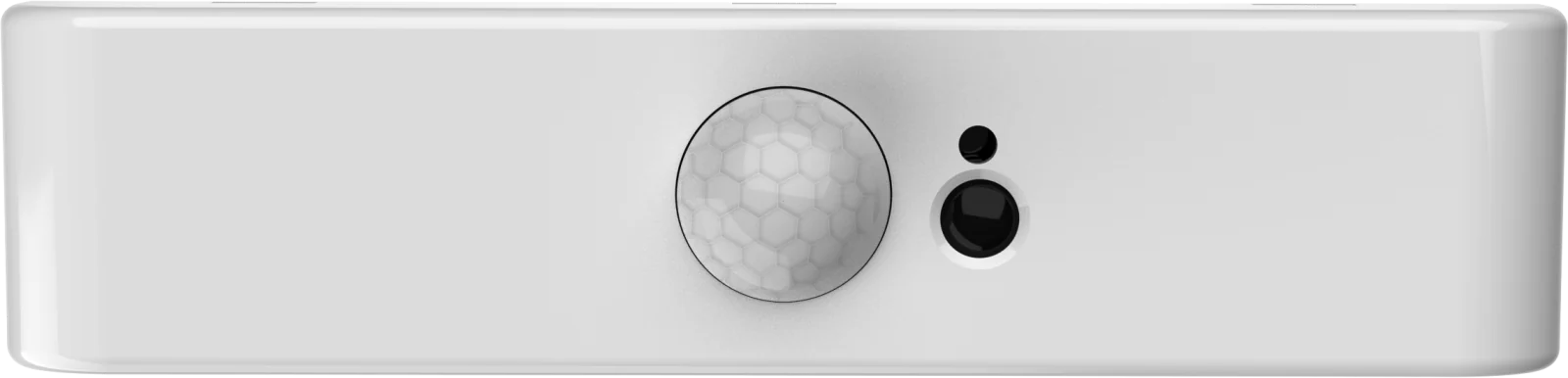

Integrated PIR Sensor, 3 m (9.84 ft)
HSE-SP12L-5 · HSE-BSP12L-5
An integrated PIR sensor for installation heights up to 3 m (9.84 ft), with daylight harvesting, a photocell function and 0–10 V dimming, in Bluetooth or regular versions.
PIRBluetooth or remoteBluetooth (HSE WISE)Remote control
10–15 V DCInput
PIRSensor
≤ 3 m (9.84 ft)Max height
≤ 120°Detection angle
Highlights.
- 0–10 V dimming.
- Installation height up to 3 m (9.84 ft).
- Daylight harvesting with PIR analog sensing technology, plus a dusk/dawn (photocell) function.
- Remote control (HD06R, purchased separately) on the regular version; HSE WISE app control on the Bluetooth version.
- Operating temperature −35 °C to +70 °C.
- 5-year warranty.
Tech specs.
HSE-SP12L-5 · HSE-BSP12L-5Electrical
- Input voltage
- 10–15 V DC
- Input current
- < 30 mA
- Standby power
- < 0.5 W @ 10 V DC
- Control method
- 0–10 V dimming
Detection
- Sensor type
- PIR
- Lens
- Fresnel lens
- Detection angle
- ≤ 120°
- Max mounting height
- ≤ 3 m (9.84 ft)
- Functions
- Daylight harvesting · dusk/dawn (photocell)
Settings — regular version
- Control device
- Remote control HD06R (purchased separately)
- Warm-up period
- 10 s
- Detection area
- 25% / 50% / 75% / 100%
- Hold time
- 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min
- Daylight threshold
- 2 lux / 10 lux / 30 lux / 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux / Disable
- Standby dimming level
- 10% / 20% / 30% / 50%
- Standby period
- 0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞
Bluetooth version
- Control
- HSE WISE app
- Bluetooth range
- 30 m (98 ft)
- Radio frequency
- 2.4 GHz (2402–2480 MHz)
- Bluetooth version
- 5.4
- Detection area
- High / Medium / Low
- Max dim level
- 1–100%, continuously adjustable
- Hold time
- 5 s / 30 s / 1–120 min (1 min steps)
- Standby dimming level
- 1–100% (1% steps)
- Standby period
- 0 s / 5 s / 30 s / 1–120 min (1 min steps) / ∞
- Daylight threshold
- Disable / 50–2000 lux (50 lux steps)
- Manual dimming
- 10–100% in manual mode, 60–100% in sensor mode
Environment
- Operating temperature
- −35 °C to +70 °C
- IP rating
- IP20
Mechanical
- Wiring
- VCC, GND/DIM−, DIM+
- Size
- 75 × 17.5 × 17.8 mm (2.95 × 0.68 × 0.7 in)
Compliance
- Marks
- cURus Recognized E529048 · FCC · CE · RoHS · IP20
Warranty
- Warranty
- 5 years
Models & ordering
| Model | Rating / option | Notes / dimensions |
|---|---|---|
| HSE-SP12L-5 | Regular · remote control | |
| HSE-BSP12L-5 | Bluetooth · HSE WISE app |
