New

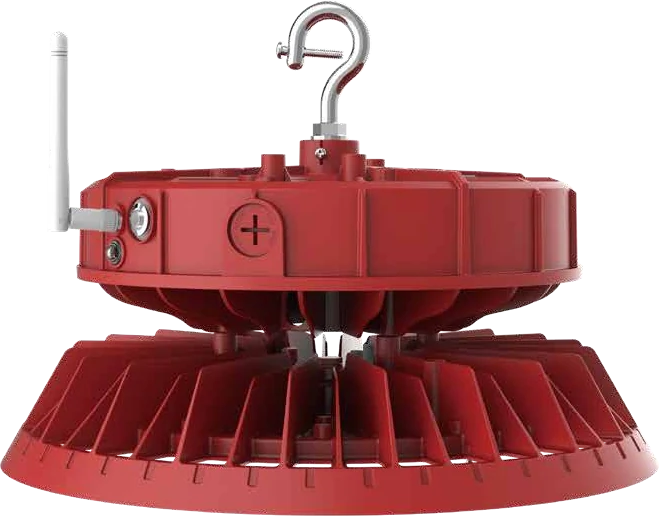

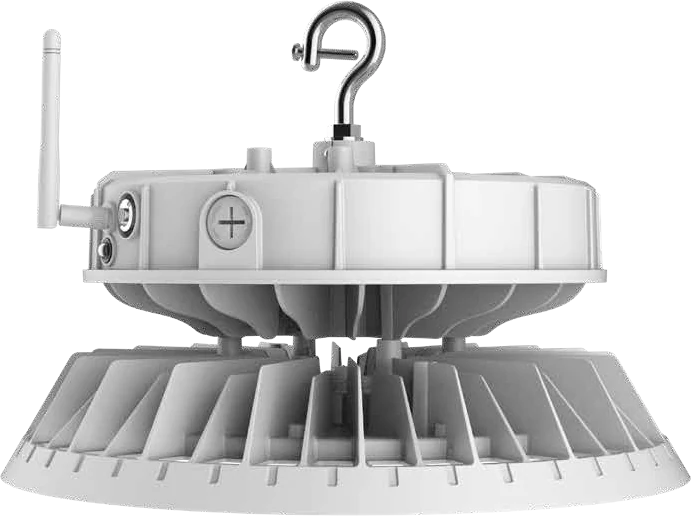

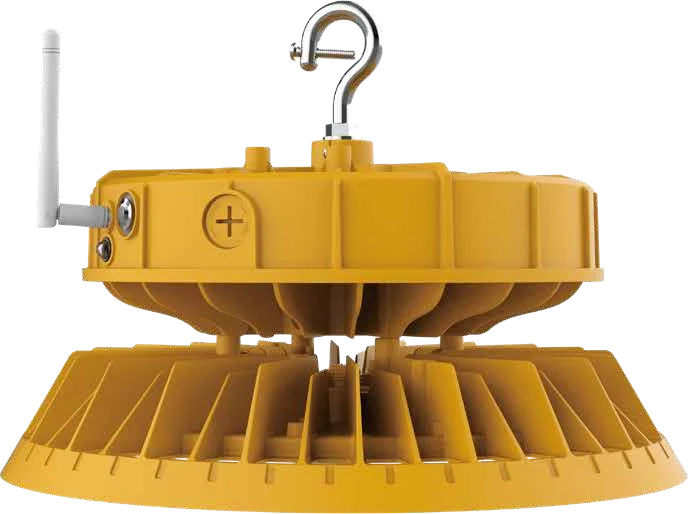

Emergency UFO High Bay, 150–240 W

HSE-EDAXX-02S-240-EL-X

An IP65 emergency UFO LED high bay with LiFePO4 battery backup and field-selectable 150 / 200 / 240 W and 3500 / 4000 / 5000 K, for high-bay single-point mounting.

Market: North AmericaIP65Self-test0–10 V dimmingBluetooth (HSE WISE)Remote controlDIP switch
Buy online in the USShips from Houston, TX in 1–2 business days.

Orders of 10 or more are quoted by our sales team. Get a quote

US service center, Houston TX 24 h service call 72 h on-site service
120–347 V ACInput
150 / 200 / 240 WWattage
15 / 20 / 30 WEmergency power
≥ 90 minsEmergency duration

Highlights.

  • Switches to emergency mode immediately when mains power fails, and returns to charging when power is restored.
  • Three wattages and three CCTs (3500 K / 4000 K / 5000 K), selectable in the field by DIP switch inside the housing.
  • 0–10 V continuous dimming comes standard, for use with dimmers, sensors and daylight harvesting.
  • Automatic monthly (30 s) and annual (90 mins) self-tests, with a test button, infrared receiver and optional remote control.
  • Bluetooth version: emergency test records and automated self-test reporting in the HSE WISE app.
  • Rated for wet locations (IP65); an integrated plug-and-play high-bay sensor can be ordered separately.

Tech specs.

HSE-EDAXX-02S-240-EL-X

Electrical

Input voltage
120–347 V AC, 50/60 Hz
Input current
2.3 A max
Input power
280 W max
Power factor
> 0.98 @ 120 V, > 0.95 @ 277 V, > 0.9 @ 347 V (full load)
THD
< 20%
Surge protection
3 kV
Dimming
0–10 V continuous
Wattage (selectable)
150 / 200 / 240 W (DIP switch)

Light output

Efficacy
> 150 LPW (typ.)
CCT (selectable)
3500 / 4000 / 5000 K (DIP switch)
CRI
> 80
Beam angle (50%)
90°
LED rated life
100,000 hours
L70
100,000 hours

Battery & emergency

Emergency power
15 / 20 / 30 W
Emergency duration
≥ 90 mins
Battery type
LiFePO4
Battery capacity
15 W: 9.6 V 3200 mAh · 20 W: 12.8 V 4800 mAh · 30 W: 12.8 V 6400 mAh
Charge time
24 hrs
Self-test
Monthly (every 30 days, 30 s) · annual (every 12 months, 90 mins)
Test switch
Test button; optional remote control (A manual test · B monthly test · C annual test · D Bluetooth reset)

Bluetooth version

Control
HSE WISE app (Bluetooth version, suffix B)
App functions
Emergency test records, automated self-test reporting

Environment

Operating temperature
0–50 °C
Location rating
Wet
IP rating
IP65

Mechanical

Max mounting height
57.3 ft
Mounting
M10 hook and safety rope included; female M10 to male 3/4 NPT or 1/2 NPT adapter optional
Reflector (optional)
Metal or polycarbonate shade
Wiring
Black: AC line (24/7) · white: neutral · red: Lsw · green: ground
Input wire
1850 mm

Compliance

Marks
cULus Listed · IP65

Warranty

Warranty
5 years

Applications

Models & ordering

ModelRating / optionNotes / dimensions
HSE-EDAXX-02S-240-EL-X150 / 200 / 240 W · XX = emergency 15 / 20 / 30 W · X = blank (regular) or B (Bluetooth)W 12.6 in (320 mm) × H 9.55 in (243 mm)
