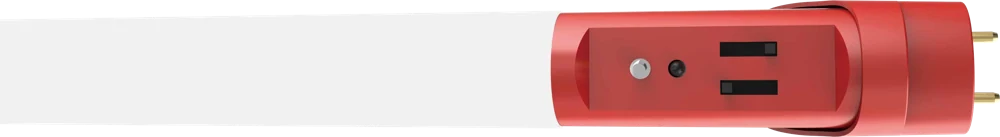

Emergency T8 Tube Light

HSE-EL08

A T8 LED tube with the emergency driver inside — no external accessories needed — with five power levels and five color temperatures set by DIP switch.

Market: North AmericaAll-in-one T8Self-testBluetooth (HSE WISE)DIP switch
US service center, Houston TX 24 h service call 72 h on-site service
120–277 V ACInput
10 / 12 / 15 / 18 / 24 WWattage
3 WEmergency power
≥ 90 minsEmergency duration

Highlights.

  • Combines conventional lighting and an emergency driver in one T8 tube — no external accessories, simple wiring.
  • Five power levels and five color temperatures, adjustable by DIP switch.
  • Battery overcharge, over-discharge and over-current protection; driver overload and short-circuit protection.
  • SMD LEDs at 130 lm/W with CRI > 80; flicker-free and glare-free, rated lifespan up to 50,000 hours (L70).
  • Automatic monthly (30 s) and annual (90 mins) self-tests, with a test button and infrared receiver.
  • For commercial offices, industrial plants, underground parking garages, schools, hospitals and public corridors.

Tech specs.

HSE-EL08

Electrical

Input voltage
120–277 V AC, 50/60 Hz
Input current
0.3 A max
Input power
24 W max
Power factor
> 0.9 @ full load
THD
< 20%
Output power (selectable)
10 / 12 / 15 / 18 / 24 W (DIP switch)

Light output

Efficacy
130 lm/W
Delivered lumens
1300 / 1560 / 1950 / 2340 / 3120 lm
CCT (selectable)
3000 / 3500 / 4000 / 5000 / 6500 K (DIP switch)
CRI
> 80
Rated life
Up to 50,000 hours (L70)

Battery & emergency

Emergency power
3 W
Emergency duration
≥ 90 mins
Output voltage
38–45 V DC
Battery
Li-ion, 7.2 V 1000 mAh
Charge time
24 hrs
Self-test
Monthly (every 30 days, 30 s) · annual (every 12 months, 90 mins)
Test switch
Test button on the tube

Bluetooth version

Model
HSE-EL08-24-01S-B
App
App Store / Google Play

Environment

Operating temperature
0–50 °C (32–122 °F)
IP rating
IP20

Mechanical

Wiring
Single-end or double-end
On the tube
Power DIP switch · CCT DIP switch · infrared receiver · test button

Compliance

Marks
cULus Listed · IP20

Warranty

Warranty
5 years

Models & ordering

ModelRating / optionNotes / dimensions
HSE-EL08-24-01SRegular
HSE-EL08-24-01S-BBluetooth
