Emergency LED Driver, 120–347 V, 4–16 W

Name: Emergency LED Driver, 120–347 V, 4–16 W
Brand: HSE
SKU: HSE-EOIH-01S-D

HSE-EOIH-01S-D · HSE-EOIH-01S-I · HSE-EOIH-01S-I-1 · HSE-EOIH-01S-P · HSE-EOIH05-01S

A constant-power emergency LED driver for LED hook-up on 120–347 V AC, 4–16 W, with 20–54 V DC or up-to-300 V DC outputs, in five housing versions.

Market: North America120–347 V AC4–16 WBluetooth (HSE WISE)Remote control

Get a quote Order samples

US service center, Houston TX 24 h service call 72 h on-site service

120–347 V ACInput

20–54 V DC or 300 V DC maxOutput

4–16 WEmergency power

≥ 90 minEmergency duration

Highlights.

Constant power output with high precision and a wide output-voltage range.
LLV (20–54 V DC) and HV (300 V DC max) output versions.

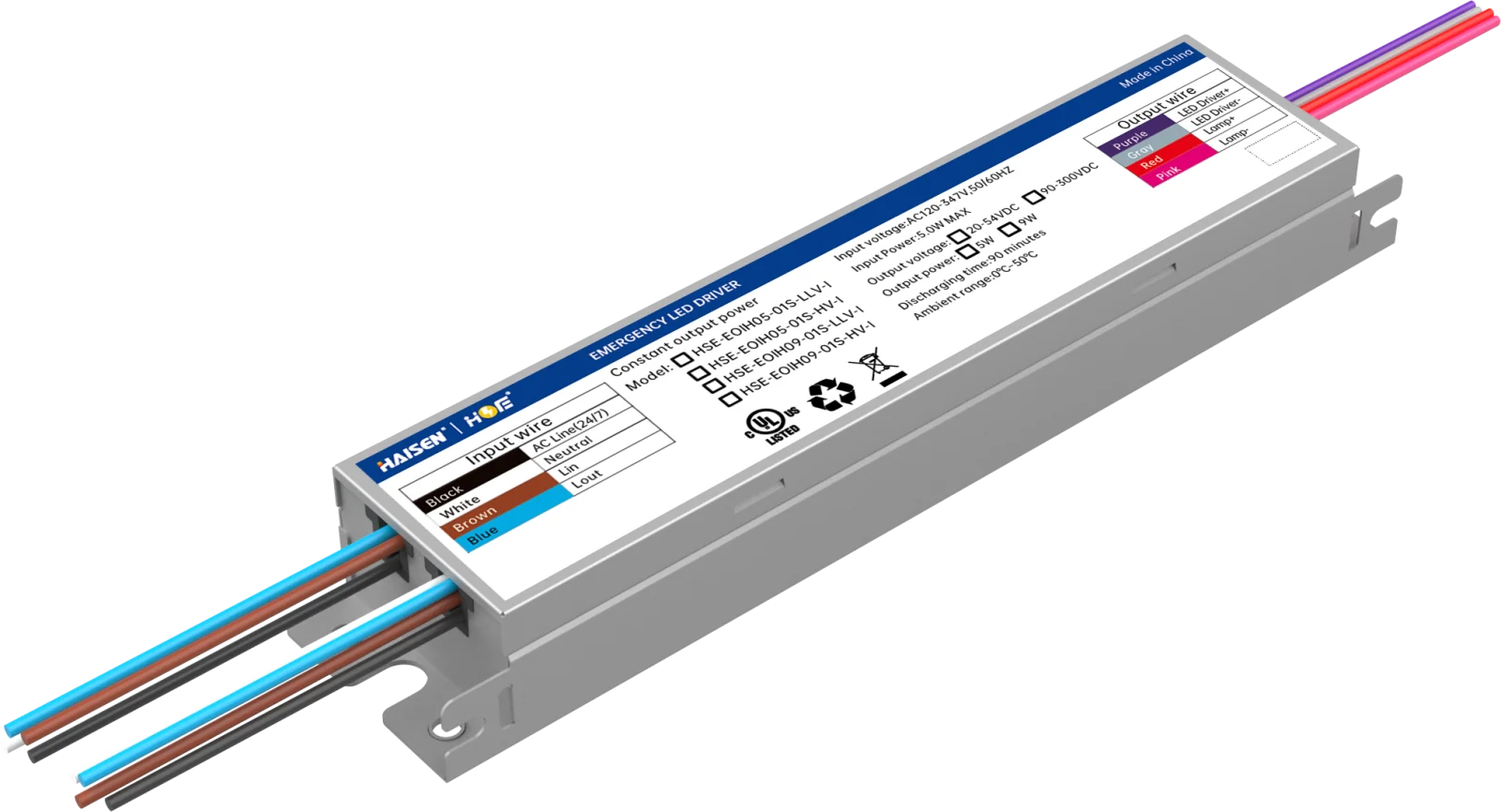

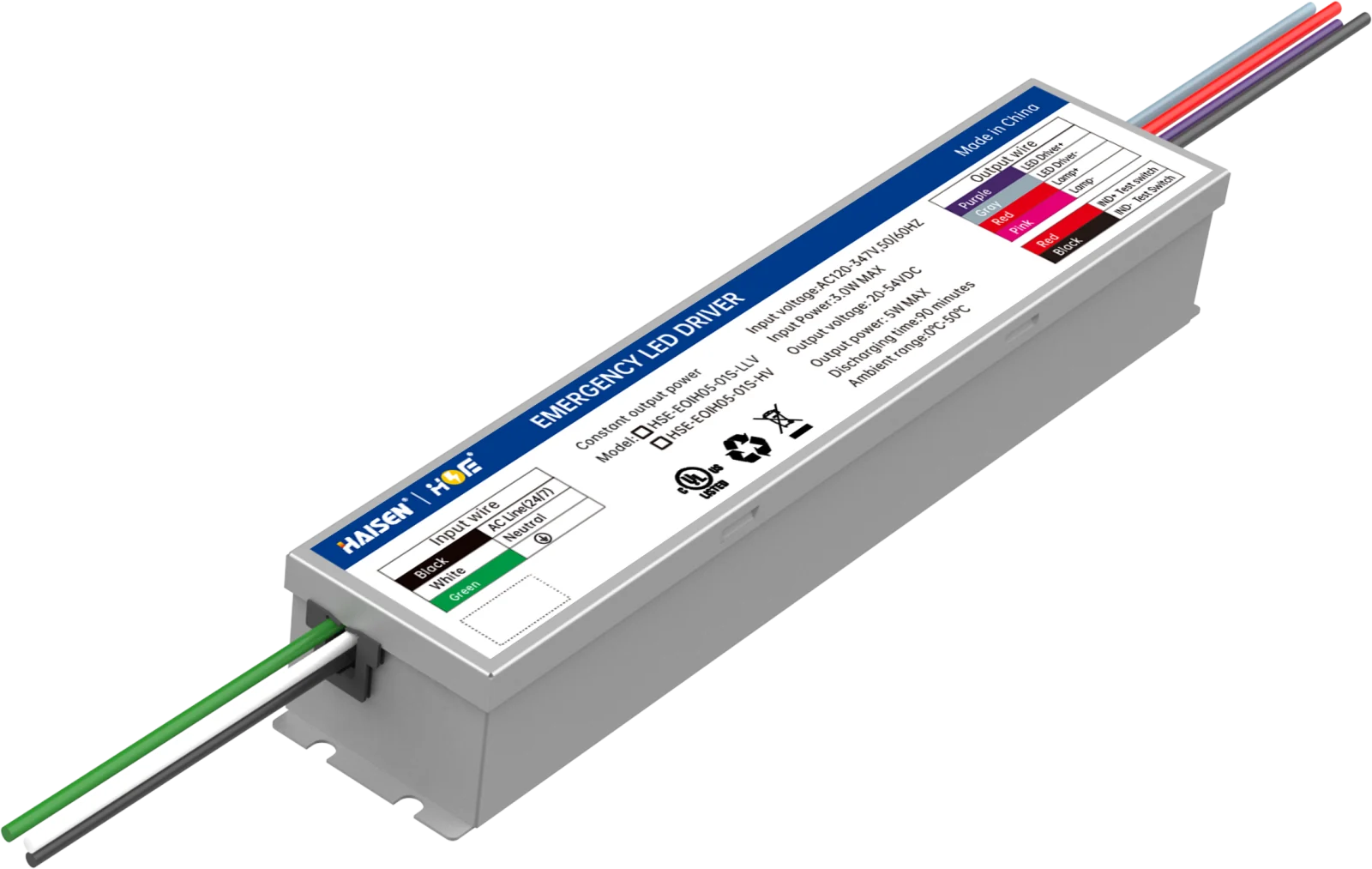

Five housings: -D (with plug-in battery pack), -I, -I-1, -P (with flexible conduit) and EOIH05.
Protection against battery overcharge and over-discharge, output overload, short circuit, open load and no load.
Monthly and annual self-inspection; remote control and Bluetooth (-B) versions.

Tech specs.

HSE-EOIH-01S-D · HSE-EOIH-01S-I · HSE-EOIH-01S-I-1 · HSE-EOIH-01S-P · HSE-EOIH05-01S

Electrical

Input voltage: 120–347 V AC, 50/60 Hz
Input current: 0.08 A max
Input power: < 7 W (-I-1: 7 W max)
Power factor: 0.6 @ 120 V AC, 0.5 @ 277 V AC, 0.4 @ 347 V AC
Output voltage: LLV: 20–54 V DC · HV: 300 V DC max
LED driver output current: -I-1: 3 A max
Max. load: Per model — see models
Hook-up: LED (between the LED driver and the LED array)

Battery & emergency

Emergency power: 4 / 5 / 8 / 9 / 11 / 12 / 16 W
Emergency duration: ≥ 90 min
Battery: Lithium; LiFePO4 on the -I-2 models (EOIH04 in the -I-1 housing, EOIH08 in the -I housing)
Battery capacity: Per model — see models
Recharge time: 24 h
Self-test: Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months
Test switch: Regular plastic test button (standard) or waterproof test button (optional); -P: test plate
Remote control: Listed as an accessory for -D, -I, -I-1 and EOIH05; optional for -P (infrared receiver)
Bluetooth: -B models

Environment

Ambient temperature: -D, -P, EOIH05 and -I Lithium: 0–50 °C (32–122 °F) · -I-1 LiFePO4: 0–60 °C (32–140 °F)

Mechanical

Size: -D: 7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · -I: 7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · -I-1: 5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · -P: 15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · EOIH05: 6.14 × 1.26 × 0.98 in (156 × 32 × 25 mm)

Compliance

Marks: cULus Listed E528696 (-I, -I-1, -P, EOIH05) · cULus Listed, no file number printed (-D)

Warranty

Warranty: 5 years

Models & ordering

Model	Rating / option	Notes / dimensions
HSE-EOIH04-01S-HV-I-2	4 W · HV · 300 V DC max · LiFePO4 · regular	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 6.4 V / 1600 mAh · max. load 150 W
HSE-EOIH04-01S-HV-I-2B	4 W · HV · 300 V DC max · LiFePO4 · Bluetooth	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 6.4 V / 1600 mAh · max. load 150 W
HSE-EOIH04-01S-LLV-I-2	4 W · LLV · 20–54 V DC · LiFePO4 · regular	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 6.4 V / 1600 mAh · max. load 150 W
HSE-EOIH04-01S-LLV-I-2B	4 W · LLV · 20–54 V DC · LiFePO4 · Bluetooth	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 6.4 V / 1600 mAh · max. load 150 W
HSE-EOIH05-01S-HV-I-1	5 W · HV · 300 V DC max · Lithium · regular	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 2000 mAh · max. load 150 W
HSE-EOIH05-01S-HV-I-1B	5 W · HV · 300 V DC max · Lithium · Bluetooth	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 2000 mAh · max. load 150 W
HSE-EOIH05-01S-LLV-I-1	5 W · LLV · 20–54 V DC · Lithium · regular	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 2000 mAh · max. load 150 W
HSE-EOIH05-01S-LLV-I-1B	5 W · LLV · 20–54 V DC · Lithium · Bluetooth	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 2000 mAh · max. load 150 W
HSE-EOIH08-01S-HV-I-1	8 W · HV · 300 V DC max · Lithium · regular	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 2600 mAh · max. load 200 W
HSE-EOIH08-01S-HV-I-1B	8 W · HV · 300 V DC max · Lithium · Bluetooth	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 2600 mAh · max. load 200 W
HSE-EOIH08-01S-LLV-I-1	8 W · LLV · 20–54 V DC · Lithium · regular	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 2600 mAh · max. load 200 W
HSE-EOIH08-01S-LLV-I-1B	8 W · LLV · 20–54 V DC · Lithium · Bluetooth	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 2600 mAh · max. load 200 W
HSE-EOIH11-01S-HV-I-1	11 W · HV · 300 V DC max · Lithium · regular	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH11-01S-HV-I-1B	11 W · HV · 300 V DC max · Lithium · Bluetooth	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH11-01S-LLV-I-1	11 W · LLV · 20–54 V DC · Lithium · regular	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH11-01S-LLV-I-1B	11 W · LLV · 20–54 V DC · Lithium · Bluetooth	5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH08-01S-HV-I-2	8 W · HV · 300 V DC max · LiFePO4 · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 9.6 V / 2000 mAh · max. load 200 W
HSE-EOIH08-01S-HV-I-2B	8 W · HV · 300 V DC max · LiFePO4 · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 9.6 V / 2000 mAh · max. load 200 W
HSE-EOIH08-01S-LLV-I-2	8 W · LLV · 20–54 V DC · LiFePO4 · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 9.6 V / 2000 mAh · max. load 100 W
HSE-EOIH08-01S-LLV-I-2B	8 W · LLV · 20–54 V DC · LiFePO4 · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 9.6 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-HV-I	5 W · HV · 300 V DC max · Lithium · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-HV-I-B	5 W · HV · 300 V DC max · Lithium · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-LLV-I	5 W · LLV · 20–54 V DC · Lithium · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-LLV-I-B	5 W · LLV · 20–54 V DC · Lithium · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH09-01S-HV-I	9 W · HV · 300 V DC max · Lithium · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH09-01S-HV-I-B	9 W · HV · 300 V DC max · Lithium · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH09-01S-LLV-I	9 W · LLV · 20–54 V DC · Lithium · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 7.2 V / 3300 mAh · max. load 100 W
HSE-EOIH09-01S-LLV-I-B	9 W · LLV · 20–54 V DC · Lithium · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 7.2 V / 3300 mAh · max. load 100 W
HSE-EOIH12-01S-HV-I	12 W · HV · 300 V DC max · Lithium · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 10.8 V / 2600 mAh · max. load 200 W
HSE-EOIH12-01S-HV-I-B	12 W · HV · 300 V DC max · Lithium · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 10.8 V / 2600 mAh · max. load 200 W
HSE-EOIH12-01S-LLV-I	12 W · LLV · 20–54 V DC · Lithium · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 10.8 V / 2600 mAh · max. load 150 W
HSE-EOIH12-01S-LLV-I-B	12 W · LLV · 20–54 V DC · Lithium · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 10.8 V / 2600 mAh · max. load 150 W
HSE-EOIH16-01S-HV-I	16 W · HV · 300 V DC max · Lithium · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 10.8 V / 3300 mAh · max. load 200 W
HSE-EOIH16-01S-HV-I-B	16 W · HV · 300 V DC max · Lithium · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 10.8 V / 3300 mAh · max. load 200 W
HSE-EOIH16-01S-LLV-I	16 W · LLV · 20–54 V DC · Lithium · regular	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 10.8 V / 3300 mAh · max. load 150 W
HSE-EOIH16-01S-LLV-I-B	16 W · LLV · 20–54 V DC · Lithium · Bluetooth	7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · battery 10.8 V / 3300 mAh · max. load 150 W
HSE-EOIH05-01S-HV	5 W · HV · 300 V DC max · Lithium · regular	6.14 × 1.26 × 0.98 in (156 × 32 × 25 mm) · battery 3.6 V / 3300 mAh · max. load 100 W
HSE-EOIH05-01S-HV-B	5 W · HV · 300 V DC max · Lithium · Bluetooth	6.14 × 1.26 × 0.98 in (156 × 32 × 25 mm) · battery 3.6 V / 3300 mAh · max. load 100 W
HSE-EOIH05-01S-LLV	5 W · LLV · 20–54 V DC · Lithium · regular	6.14 × 1.26 × 0.98 in (156 × 32 × 25 mm) · battery 3.6 V / 3300 mAh · max. load 100 W
HSE-EOIH05-01S-LLV-B	5 W · LLV · 20–54 V DC · Lithium · Bluetooth	6.14 × 1.26 × 0.98 in (156 × 32 × 25 mm) · battery 3.6 V / 3300 mAh · max. load 100 W
HSE-EOIH05-01S-HV-D	5 W · HV · 300 V DC max · Lithium · regular	7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-HV-D-B	5 W · HV · 300 V DC max · Lithium · Bluetooth	7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-LLV-D	5 W · LLV · 20–54 V DC · Lithium · regular	7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-LLV-D-B	5 W · LLV · 20–54 V DC · Lithium · Bluetooth	7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH09-01S-HV-D	9 W · HV · 300 V DC max · Lithium · regular	7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH09-01S-HV-D-B	9 W · HV · 300 V DC max · Lithium · Bluetooth	7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH09-01S-LLV-D	9 W · LLV · 20–54 V DC · Lithium · regular	7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH09-01S-LLV-D-B	9 W · LLV · 20–54 V DC · Lithium · Bluetooth	7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH05-01S-HV-P	5 W · HV · 300 V DC max · Lithium · regular	15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-HV-P-B	5 W · HV · 300 V DC max · Lithium · Bluetooth	15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-LLV-P	5 W · LLV · 20–54 V DC · Lithium · regular	15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH05-01S-LLV-P-B	5 W · LLV · 20–54 V DC · Lithium · Bluetooth	15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · battery 7.2 V / 2000 mAh · max. load 100 W
HSE-EOIH09-01S-HV-P	9 W · HV · 300 V DC max · Lithium · regular	15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH09-01S-HV-P-B	9 W · HV · 300 V DC max · Lithium · Bluetooth	15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH09-01S-LLV-P	9 W · LLV · 20–54 V DC · Lithium · regular	15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · battery 7.2 V / 3300 mAh · max. load 200 W
HSE-EOIH09-01S-LLV-P-B	9 W · LLV · 20–54 V DC · Lithium · Bluetooth	15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · battery 7.2 V / 3300 mAh · max. load 200 W
