3-in-1 UFO Emergency LED Driver, 20 / 30 W

Name: 3-in-1 UFO Emergency LED Driver, 20 / 30 W
Brand: HSE
SKU: HSE-EDA

HSE-EDA

A combination driver for UFO high bays that provides both AC and emergency operation, with three selectable wattages and CCTs and 20 or 30 W emergency power.

Market: North AmericaFor UFO high baysIP65Bluetooth (HSE WISE)Remote controlDIP switch

Get a quote Order samples

US service center, Houston TX 24 h service call 72 h on-site service

120–347 V ACInput

80 / 100 / 150 W or 150 / 200 / 240 WWattage

20 / 30 WEmergency power

≥ 90 minEmergency duration

Highlights.

Specially designed for UFO high-bay lights.
Combination driver that provides both AC and emergency operation.
Three selectable wattages and three CCTs — 4000 K, 5000 K, 5700 K — set by DIP switch.
Monthly and annual self-inspection; optional remote control and a Bluetooth version.
Protection against input overcurrent, output overvoltage, output overcurrent, short circuit and no load, and battery overcharge and over-discharge.

Tech specs.

HSE-EDA

Electrical

Input voltage: 120–347 V AC, 50/60 Hz
Input current: 2.3 A max
Input power: 280 W max
Power factor: > 0.98 @ 120 V, > 0.95 @ 277 V, > 0.9 @ 347 V (full load)
Output wattage (selectable): EDA20: 80 / 100 / 150 W · EDA30: 150 / 200 / 240 W
Output voltage: 180–260 V DC
Output current: EDA20: 600 mA max · EDA30: 1000 mA max
Adjustment: DIP switch — up: three wattage levels; down: three CCT levels

Light output

CCT (selectable): 4000 / 5000 / 5700 K

Battery & emergency

Emergency power: EDA20: 20 W · EDA30: 30 W
Emergency duration: ≥ 90 min
Battery: LiFePO4
Battery capacity: EDA20: 12.8 V / 4800 mAh · EDA30: 12.8 V / 6400 mAh
Recharge time: 24 h
Self-test: Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months
Test switch: Test button on the housing; infrared receiver
Remote control: Optional — manual, monthly and annual tests; Bluetooth reset
Bluetooth: -B models (Bluetooth receiver)

Environment

Ambient temperature: 0–50 °C (32–122 °F)
IP rating: IP65
Locations: Wet locations and plenum spaces

Mechanical

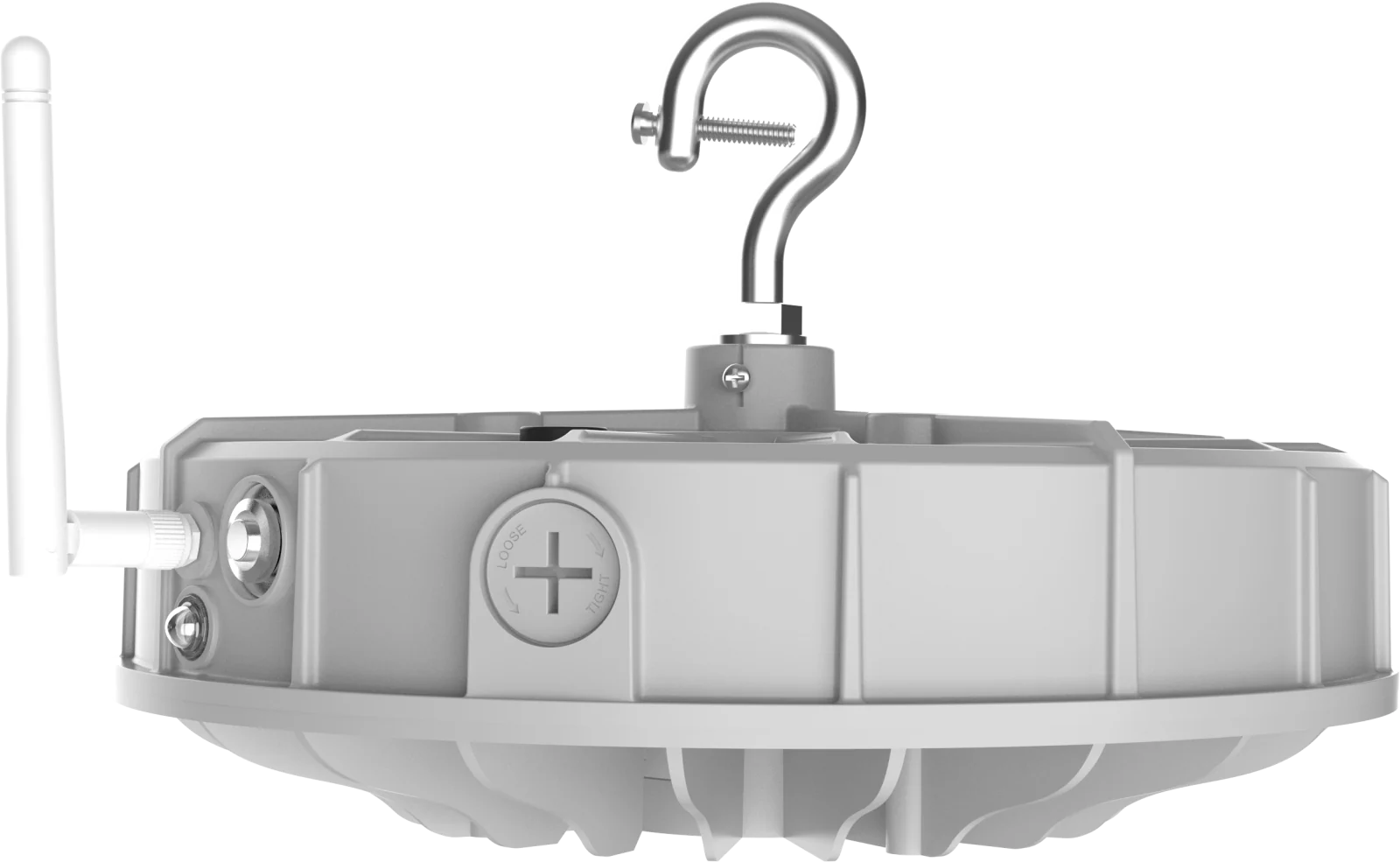

Mounting: Mounts on the luminaire; the fixture hangs from a ceiling hook (M10 hook and safety rope included)
Height: EDA30 (-240): 3.58 in (91 mm)

Compliance

Marks: cULus Listed E528696 · IP65

Warranty

Warranty: 5 years

Applications

High & low bay

Models & ordering

Model	Rating / option	Notes / dimensions
HSE-EDA20-02S-150	20 W emergency · 80 / 100 / 150 W selectable · regular
HSE-EDA20-02S-150-B	20 W emergency · 80 / 100 / 150 W selectable · Bluetooth
HSE-EDA30-02S-240	30 W emergency · 150 / 200 / 240 W selectable · regular	Height 3.58 in (91 mm)
HSE-EDA30-02S-240-B	30 W emergency · 150 / 200 / 240 W selectable · Bluetooth	Height 3.58 in (91 mm)
