AC / supply-line hook-up

J-Box Emergency LED Driver, 120 V, 5–15 W

HSE-EII05-01S · HSE-EII12-01S · HSE-EII15-01S

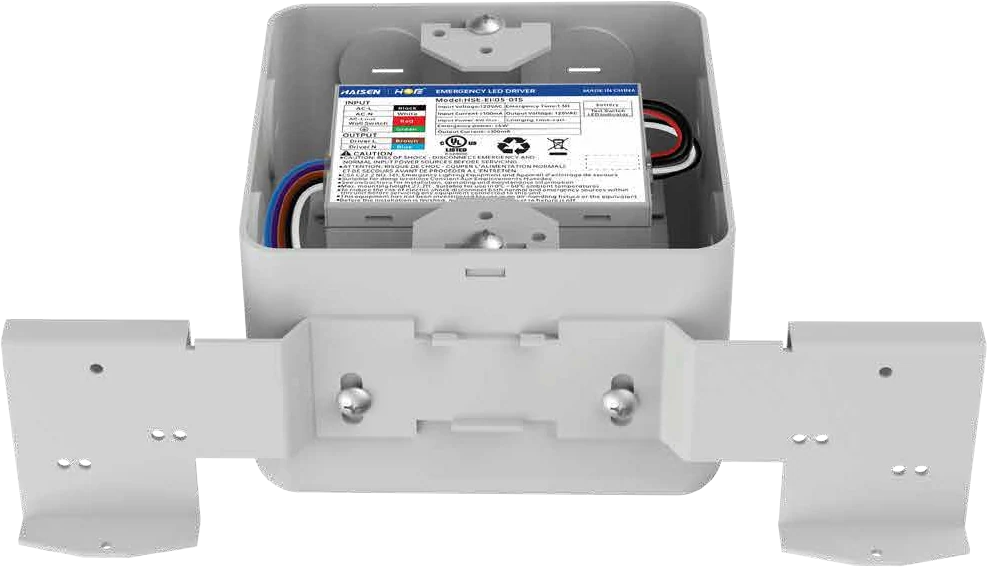

A 120 V AC supply-line emergency LED driver, 5, 12 or 15 W, that connects to the AC input of the LED light and installs inside a square junction box.

Market: North AmericaUL listed120 V ACFits a square J-box
US service center, Houston TX 24 h service call 72 h on-site service
120 V ACInput
120 V AC maxOutput
5 / 12 / 15 WEmergency power
LithiumBattery

Highlights.

  • UL listed for field or factory installation; CEC Title 20 compliant; complies with the NFPA 101 Life Safety Code.
  • Easy wiring — connects directly to the AC input of the LED light.
  • Installs inside a square junction box.
  • Test plate with test switch and LED indicator; monthly and annual self-testing.
  • 5-year warranty.

Tech specs.

HSE-EII05-01S · HSE-EII12-01S · HSE-EII15-01S

Electrical

Input voltage
120 V AC
Input current
0.1 A max
Input power
7 W max
Power factor
0.6 @ 120 V AC
Output voltage
120 V AC max
Hook-up
Supply line — connects to the AC input of the LED light
Compatible LED luminaires
12 W model: ≤ 12 W · 15 W model: ≤ 15 W

Battery & emergency

Emergency power
5 / 12 / 15 W
Emergency duration
5 W: ≥ 90 min · 12 / 15 W: 90 min
Battery
Lithium
Battery capacity
5 W: 7.2 V / 2000 mAh · 12 W: 10.8 V / 2600 mAh · 15 W: 10.8 V / 3000 mAh
Recharge time
24 h
Self-test
Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months
Test switch
Test plate with test switch and LED indicator

Environment

Ambient temperature
0–50 °C (32–122 °F)

Mechanical

Installation
Inside a square junction box
Accessories
Test plate; wire nuts (7 for the 5 W model, 5 for the 12 / 15 W models)

Compliance

Marks
cULus Listed E528696 · CEC Title 20 · NFPA 101
Listing
UL listed for field or factory installation

Warranty

Warranty
5 years

Applications

Models & ordering

ModelRating / optionNotes / dimensions
HSE-EII05-01S5 W3.46 × 2.12 × 1.37 in (88 × 54 × 35 mm)
HSE-EII12-01S12 W · separate batteryDriver 3.54 × 2.12 × 0.86 in (90 × 54 × 22 mm) · battery 3.81 × 2.18 in (97 × 55.6 mm)
HSE-EII15-01S15 W · separate batteryDriver 3.54 × 2.12 × 0.86 in (90 × 54 × 22 mm) · battery 3.81 × 2.18 in (97 × 55.6 mm)
