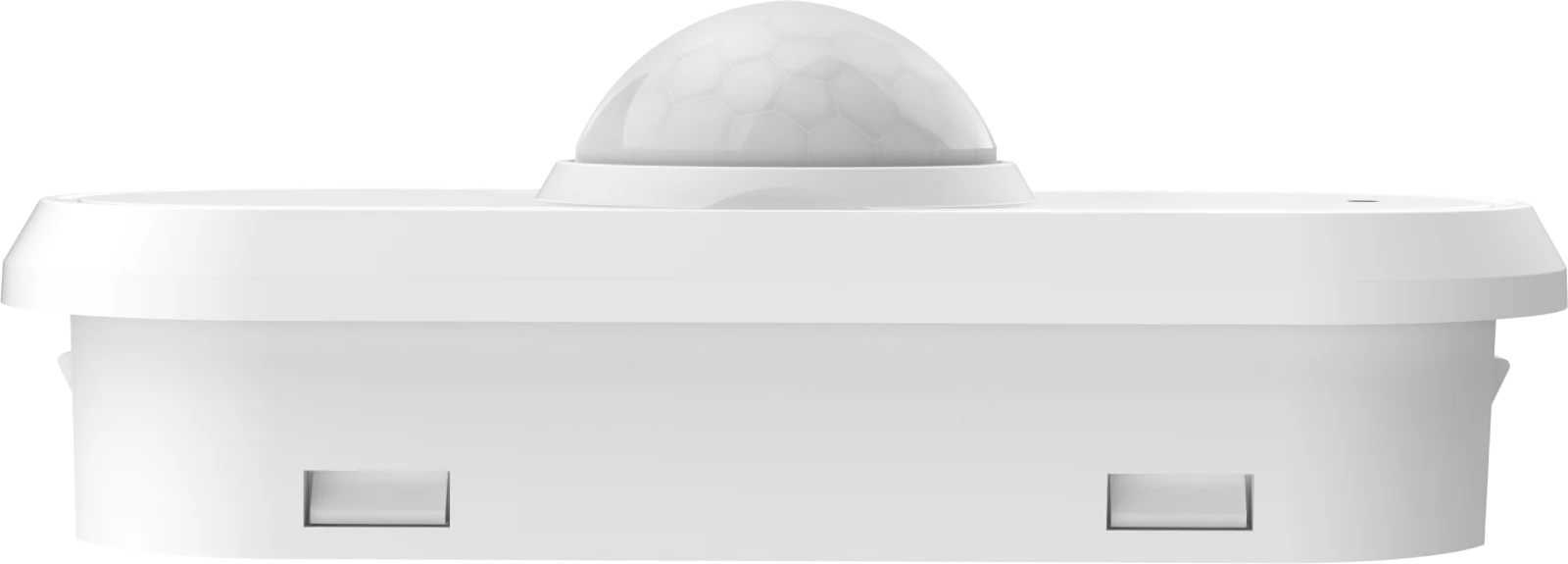

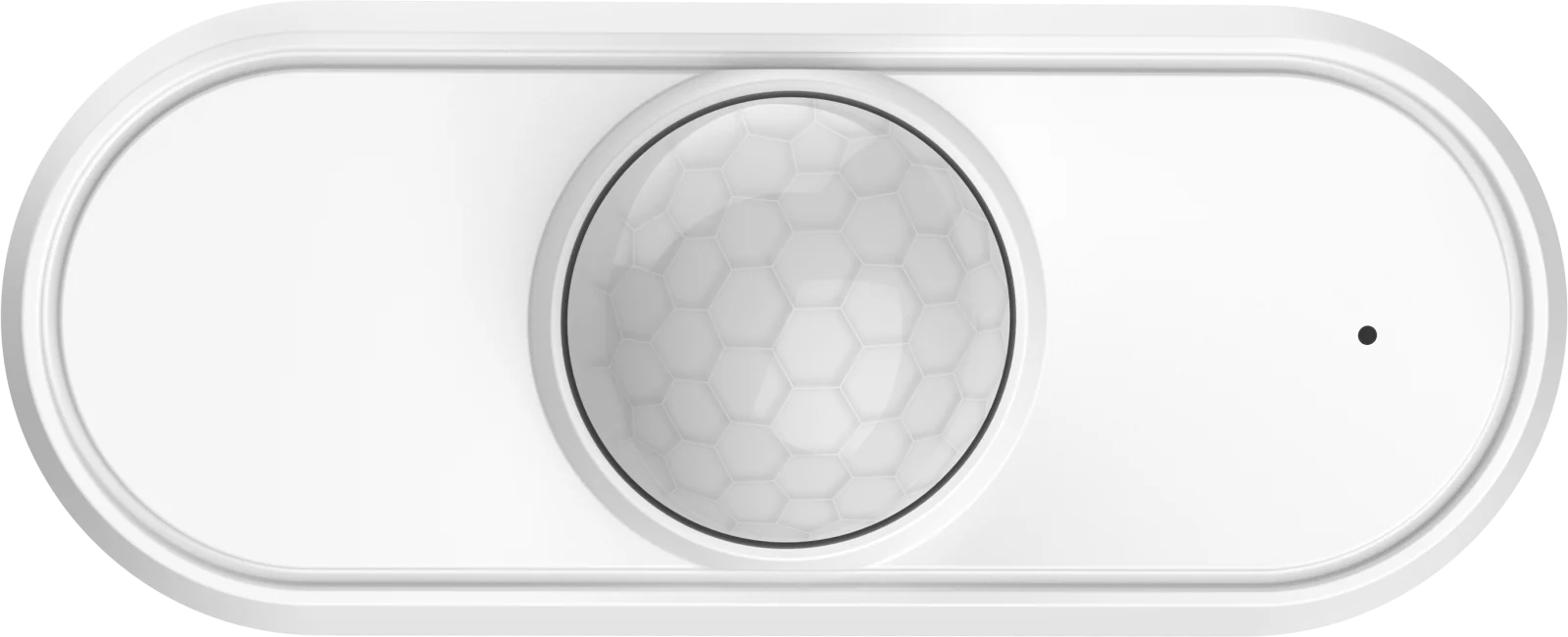

Integrated Oval PIR Sensor, Remote & DIP

Electrical

Input voltage

10–15 V DC

Input current

< 15 mA

Standby power

< 0.5 W @ 10 V DC

Control method

0–10 V dimming

Detection

Sensor type

PIR

Lens

Fresnel lens

Detection angle

360° (ceiling mounted) · ≤ 120° (wall mounted)

Max mounting height

< 4 m (13 ft)

Detection range

2–4 m (6.56–13.12 ft) radius

Functions

Daylight harvesting · automatic on/off (photocell)

Settings — regular version

Control device

Remote control HD06R (purchased separately) and manual switches

Detection area

25% / 50% / 75% / 100% (remote only)

Hold time

Remote: 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min

Daylight threshold

Remote: Disable / 400 lux / 350 lux / 300 lux / 250 lux / 200 lux / 120 lux / 80 lux / 50 lux / 30 lux / 10 lux / 2 lux; manual switches: Disable / 50 lux

Standby period

Remote: 0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞

Standby dimming level

Remote: 10% / 20% / 30% / 50%; manual switches: 0% / 20%

Sensing mode

Manual switches: sensor enabled / sensor disabled

CCT function

2700 K / 3500 K / 4000 K / 5000 K / 5700 K / 6500 K via the remote's CCT button, when paired with the HSE-BC2 controller

Environment

Operating temperature

−30 °C to +60 °C

IP rating

IP20

Mechanical

Connection

4-pin connector (CCT+, GND/DIM−, 12V+, DIM+)

Size

62 × 25 × 20.9 mm (2.44 × 0.98 × 0.82 in)

Compliance

Marks

cURus Recognized E529048 · FCC · CE · RoHS · IP20
