DC / LED hook-up

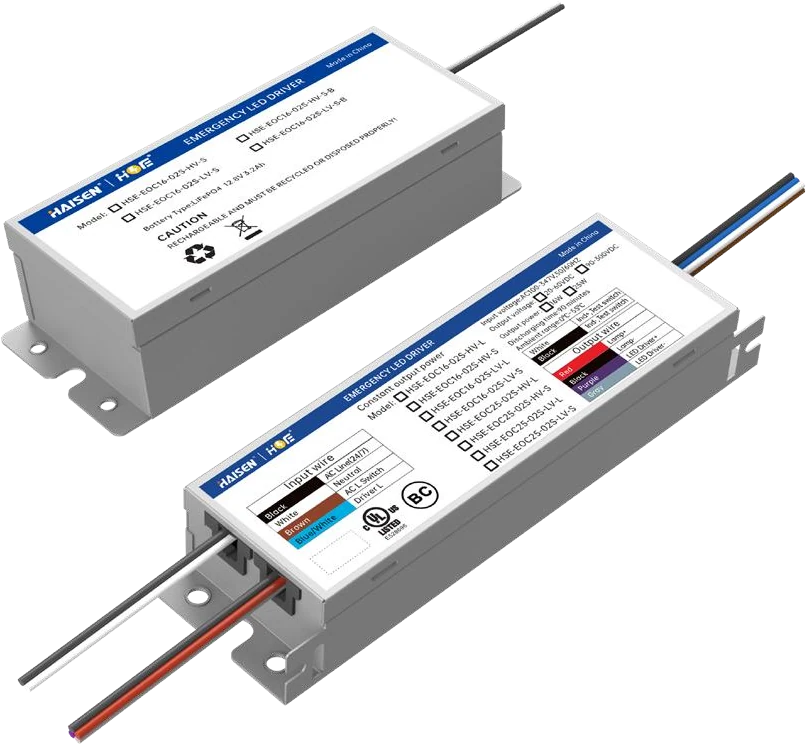

Emergency LED Driver, LED Hook-Up, 2–25 W

HSE-EOC-02S · HSE-EOC08-02S · HSE-EOC16-02S · HSE-EOC25-02S

A UL-listed emergency LED driver for LED (DC) hook-up with 2 to 25 W of constant output power, a separate battery pack and output versions from 20 to 300 V DC.

Market: North AmericaUL listed2–25 WBluetooth (HSE WISE)Remote control
US service center, Houston TX 24 h service call 72 h on-site service
100–347 V ACInput
20–54 / 20–60 / 90–300 / 20–300 V DCOutput
2 / 4 / 8 / 16 / 25 WEmergency power
90 minEmergency duration

Highlights.

  • UL listed for field or factory installation; CEC Title 20 compliant; complies with the NFPA 101 Life Safety Code.
  • Constant output power, 2 to 25 W.
  • Output versions for 20–54 V, 20–60 V, 90–300 V and 20–300 V DC LED loads.
  • Separate battery pack; the 8, 16 and 25 W models come with a choice of two battery-pack sizes (-S / -L).
  • 2-in-1 LED test switch and indicator; manual testing by optional remote control; monthly and annual self-testing.
  • 5-year limited warranty.

Tech specs.

HSE-EOC-02S · HSE-EOC08-02S · HSE-EOC16-02S · HSE-EOC25-02S

Electrical

Input voltage
100–347 V AC, 50/60 Hz
Input current
2 / 4 / 8 W: 0.05 A max · 16 / 25 W: 0.1 A max
Input power
2 / 4 / 8 W: 5 W max · 16 / 25 W: 10 W max
Power factor
0.5 @ 220 V AC (16 / 25 W: at full load)
Output voltage
LLV: 20–54 V DC · LV: 20–60 V DC · HV: 90–300 V DC · HV-S1 / HV-L1: 20–300 V DC
Max. load current
LLV, LV: 3 A · HV, HV-S1, HV-L1: 1 A
Power-on self-test
8 W: < 1 s
Hook-up
LED (between the LED driver and the LED array)

Battery & emergency

Emergency power
2 / 4 / 8 / 16 / 25 W, constant output power
Emergency duration
90 min
Battery pack
2 W: 3.2 V / 2000 mAh · 4 W: 6.4 V / 1600 mAh · 8 W -S: 6.4 V / 3200 mAh · 8 W -L: 6.4 V / 3200 mAh · 16 W -S: 12.8 V / 3200 mAh · 16 W -L: 12.8 V / 3200 mAh · 25 W -S: 12.8 V / 4800 mAh · 25 W -L: 9.6 V / 6400 mAh
Recharge time
24 h
Self-test
Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months
Test switch
2-in-1 LED test switch and indicator; regular plastic test button (default) or waterproof test button
Remote control
Optional
Bluetooth
-B models

Environment

Ambient temperature
0 °C to +55 °C
Max. case temperature (Tc)
2 / 4 W: 65 °C (149 °F) · 8 W: 75 °C (167 °F) · 16 / 25 W: 70 °C (158 °F)
Locations
Damp locations and plenum spaces; for grounded, listed, dry or damp location rated fixtures

Mechanical

Construction
Driver with a separate battery pack connected by plug
Size
Driver and battery pack per model — see models

Compliance

Marks
cULus Listed E528696 · CEC Title 20 · NFPA 101
Listing
UL listed for field or factory installation

Warranty

Warranty
5 years, limited

Models & ordering

ModelRating / optionNotes / dimensions
HSE-EOC02-02S-LV2 W · 20–60 V DC · regularDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC02-02S-LV-B2 W · 20–60 V DC · BluetoothDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC02-02S-HV2 W · 90–300 V DC · regularDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC02-02S-HV-B2 W · 90–300 V DC · BluetoothDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC04-02S-LLV4 W · 20–54 V DC · regularDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC04-02S-LLV-B4 W · 20–54 V DC · BluetoothDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC04-02S-LV4 W · 20–60 V DC · regularDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC04-02S-LV-B4 W · 20–60 V DC · BluetoothDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC04-02S-HV4 W · 90–300 V DC · regularDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC04-02S-HV-B4 W · 90–300 V DC · BluetoothDriver 3.62 × 1.22 × 0.74 in (92 × 31 × 19 mm) · battery 3.74 × 1.57 × 1 in (95 × 40 × 25.4 mm)
HSE-EOC08-02S-LLV-S8 W · 20–54 V DC · battery -S · regularDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 4.33 × 1.71 × 1.57 in (110 × 43.5 × 40 mm)
HSE-EOC08-02S-LLV-SB8 W · 20–54 V DC · battery -S · BluetoothDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 4.33 × 1.71 × 1.57 in (110 × 43.5 × 40 mm)
HSE-EOC08-02S-LV-S8 W · 20–60 V DC · battery -S · regularDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 4.33 × 1.71 × 1.57 in (110 × 43.5 × 40 mm)
HSE-EOC08-02S-LV-SB8 W · 20–60 V DC · battery -S · BluetoothDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 4.33 × 1.71 × 1.57 in (110 × 43.5 × 40 mm)
HSE-EOC08-02S-HV-S8 W · 90–300 V DC · battery -S · regularDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 4.33 × 1.71 × 1.57 in (110 × 43.5 × 40 mm)
HSE-EOC08-02S-HV-SB8 W · 90–300 V DC · battery -S · BluetoothDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 4.33 × 1.71 × 1.57 in (110 × 43.5 × 40 mm)
HSE-EOC08-02S-HV-S18 W · 20–300 V DC · battery -S · regularDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 4.33 × 1.71 × 1.57 in (110 × 43.5 × 40 mm)
HSE-EOC08-02S-HV-S1B8 W · 20–300 V DC · battery -S · BluetoothDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 4.33 × 1.71 × 1.57 in (110 × 43.5 × 40 mm)
HSE-EOC08-02S-LLV-L8 W · 20–54 V DC · battery -L · regularDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 6.49 × 1.71 × 1 in (165 × 43.5 × 25.4 mm)
HSE-EOC08-02S-LLV-LB8 W · 20–54 V DC · battery -L · BluetoothDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 6.49 × 1.71 × 1 in (165 × 43.5 × 25.4 mm)
HSE-EOC08-02S-LV-L8 W · 20–60 V DC · battery -L · regularDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 6.49 × 1.71 × 1 in (165 × 43.5 × 25.4 mm)
HSE-EOC08-02S-LV-LB8 W · 20–60 V DC · battery -L · BluetoothDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 6.49 × 1.71 × 1 in (165 × 43.5 × 25.4 mm)
HSE-EOC08-02S-HV-L8 W · 90–300 V DC · battery -L · regularDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 6.49 × 1.71 × 1 in (165 × 43.5 × 25.4 mm)
HSE-EOC08-02S-HV-LB8 W · 90–300 V DC · battery -L · BluetoothDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 6.49 × 1.71 × 1 in (165 × 43.5 × 25.4 mm)
HSE-EOC08-02S-HV-L18 W · 20–300 V DC · battery -L · regularDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 6.49 × 1.71 × 1 in (165 × 43.5 × 25.4 mm)
HSE-EOC08-02S-HV-L1B8 W · 20–300 V DC · battery -L · BluetoothDriver 4.33 × 1.22 × 0.74 in (110 × 31 × 19 mm) · battery 6.49 × 1.71 × 1 in (165 × 43.5 × 25.4 mm)
HSE-EOC16-02S-LV-S16 W · 20–60 V DC · battery -S · regularDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 2.32 × 1.18 in (170 × 59 × 30 mm)
HSE-EOC16-02S-LV-SB16 W · 20–60 V DC · battery -S · BluetoothDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 2.32 × 1.18 in (170 × 59 × 30 mm)
HSE-EOC16-02S-HV-S16 W · 90–300 V DC · battery -S · regularDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 2.32 × 1.18 in (170 × 59 × 30 mm)
HSE-EOC16-02S-HV-SB16 W · 90–300 V DC · battery -S · BluetoothDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 2.32 × 1.18 in (170 × 59 × 30 mm)
HSE-EOC16-02S-HV-S116 W · 20–300 V DC · battery -S · regularDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 2.32 × 1.18 in (170 × 59 × 30 mm)
HSE-EOC16-02S-HV-S1B16 W · 20–300 V DC · battery -S · BluetoothDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 2.32 × 1.18 in (170 × 59 × 30 mm)
HSE-EOC16-02S-LV-L16 W · 20–60 V DC · battery -L · regularDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 1.71 × 1.57 in (170 × 43.5 × 40 mm)
HSE-EOC16-02S-LV-LB16 W · 20–60 V DC · battery -L · BluetoothDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 1.71 × 1.57 in (170 × 43.5 × 40 mm)
HSE-EOC16-02S-HV-L16 W · 90–300 V DC · battery -L · regularDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 1.71 × 1.57 in (170 × 43.5 × 40 mm)
HSE-EOC16-02S-HV-LB16 W · 90–300 V DC · battery -L · BluetoothDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 1.71 × 1.57 in (170 × 43.5 × 40 mm)
HSE-EOC16-02S-HV-L116 W · 20–300 V DC · battery -L · regularDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 1.71 × 1.57 in (170 × 43.5 × 40 mm)
HSE-EOC16-02S-HV-L1B16 W · 20–300 V DC · battery -L · BluetoothDriver 5.86 × 1.71 in (149 × 43.5 mm) · battery 6.69 × 1.71 × 1.57 in (170 × 43.5 × 40 mm)
HSE-EOC25-02S-LV-S25 W · 20–60 V DC · battery -S · regularBattery 6.69 × 2.44 × 1.57 in (170 × 62 × 40 mm)
HSE-EOC25-02S-LV-SB25 W · 20–60 V DC · battery -S · BluetoothBattery 6.69 × 2.44 × 1.57 in (170 × 62 × 40 mm)
HSE-EOC25-02S-HV-S25 W · 90–300 V DC · battery -S · regularBattery 6.69 × 2.44 × 1.57 in (170 × 62 × 40 mm)
HSE-EOC25-02S-HV-SB25 W · 90–300 V DC · battery -S · BluetoothBattery 6.69 × 2.44 × 1.57 in (170 × 62 × 40 mm)
HSE-EOC25-02S-HV-S125 W · 20–300 V DC · battery -S · regularBattery 6.69 × 2.44 × 1.57 in (170 × 62 × 40 mm)
HSE-EOC25-02S-HV-S1B25 W · 20–300 V DC · battery -S · BluetoothBattery 6.69 × 2.44 × 1.57 in (170 × 62 × 40 mm)
HSE-EOC25-02S-LV-L25 W · 20–60 V DC · battery -L · regularBattery 9.44 × 2.32 × 1.18 in (240 × 59 × 30 mm)
HSE-EOC25-02S-LV-LB25 W · 20–60 V DC · battery -L · BluetoothBattery 9.44 × 2.32 × 1.18 in (240 × 59 × 30 mm)
HSE-EOC25-02S-HV-L25 W · 90–300 V DC · battery -L · regularBattery 9.44 × 2.32 × 1.18 in (240 × 59 × 30 mm)
HSE-EOC25-02S-HV-LB25 W · 90–300 V DC · battery -L · BluetoothBattery 9.44 × 2.32 × 1.18 in (240 × 59 × 30 mm)
HSE-EOC25-02S-HV-L125 W · 20–300 V DC · battery -L · regularBattery 9.44 × 2.32 × 1.18 in (240 × 59 × 30 mm)
HSE-EOC25-02S-HV-L1B25 W · 20–300 V DC · battery -L · BluetoothBattery 9.44 × 2.32 × 1.18 in (240 × 59 × 30 mm)
