Integrated Microwave CCT Sensor, 14.7 ft

Name: Integrated Microwave CCT Sensor, 14.7 ft
Brand: HSE
SKU: HSE-SCM20L-5

HSE-SCM20L-5

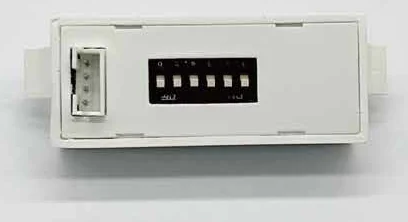

Microwave sensor module with 0–10 V dimming and CCT control, automatic on/off daylight control and HD06R-remote or DIP-switch settings, for panel, troffer, strip and wrap fixtures.

CCTRemote or DIP switchesRemote controlDIP switch

Get a quote Order samples

US service center, Houston TX 24 h service call 72 h on-site service

10–15 V DCInput

4.5 m (14.7 ft)Max height

Radius 4 m (13 ft)Detection range

0–10 VDimming

Highlights.

0–10 V dimming plus CCT control; the CCT is set with the CCT button on the HD06R remote.
Automatic on/off control with the daylight sensor.
Selectable detection range, hold time and daylight threshold, by remote (purchased separately) or manual DIP switches.
Standard mounting height 3 m (9 ft), max. 4.5 m (14.7 ft).
For panel, troffer, strip and wrap fixtures; 5-year limited warranty.

Tech specs.

HSE-SCM20L-5

Electrical

Input voltage: 10–15 V DC
Input current: < 30 mA
Load control capacity: Sink current < 40 mA
Control method: 0–10 V / CCT

Detection

Sensor type: Microwave
Frequency: 5.8 GHz ± 75 MHz
Microwave power: < 0.3 mW
Detection angle: Ceiling mounted 360°, wall mounted 150°
Mounting height: Standard 3 m (9 ft) · max. 4.5 m (14.7 ft)
Detection range: Radius 4 m (13 ft)

Settings — regular version

Control device: HD06R remote (purchased separately) & manual switches
Detection area: Remote: 25% / 50% / 75% / 100% · Manual: 50% / 100%
Hold time: Remote: 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min · Manual: 5 s / 5 min
Daylight threshold: Remote: Disable / 2 / 10 / 30 / 50 / 80 / 120 / 200 / 250 / 300 / 350 / 400 Lux · Manual: Disable / 50 Lux
Standby period: Remote: 0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / +∞ · Manual: 0 s / 1 min
Standby dimming level: Remote: 10% / 20% / 30% / 50% / 100% · Manual: 10% / 30%
CCT: Remote CCT button: 2700K / 3500K / 4000K / 5000K / 5700K / 6500K
