AC / supply-line hook-up

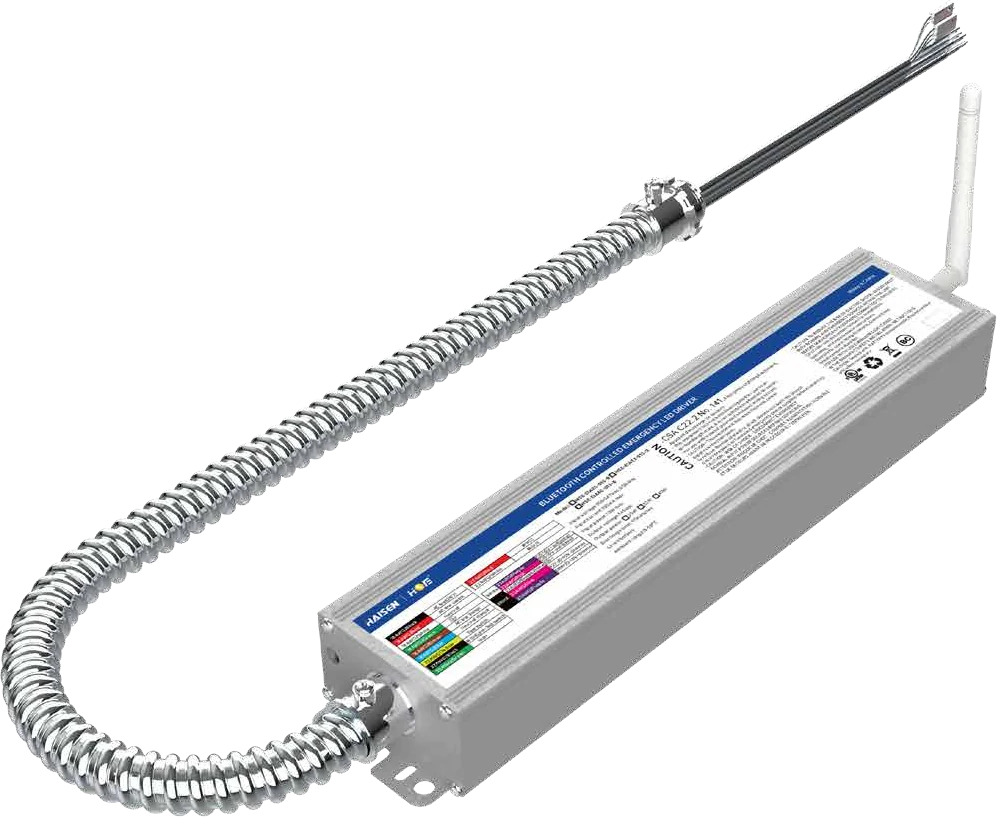

Emergency LED Driver, Supply-Line, 9–40 W

HSE-EIA-01S

A supply-line (AC) emergency LED driver with 9–40 W constant emergency power for most 9–350 W LED luminaires, in regular and Bluetooth versions.

Market: North AmericaUL listed9–40 WBluetooth (HSE WISE)Remote control
Buy online in the USShips from Houston, TX in 1–2 business days.

Other models and orders of 10 or more are quoted by our sales team. Get a quote

US service center, Houston TX 24 h service call 72 h on-site service
100–347 V ACInput
145 V DCOutput
9 / 15 / 25 / 32 / 40 WEmergency power
90 minEmergency duration

Highlights.

  • UL listed for field or factory installation; CEC Title 20 compliant; complies with the NFPA 101 Life Safety Code.
  • Constant emergency output power for most 9–350 W LED luminaires.
  • The 0/1–10 V dimming wires must be connected when the luminaire power is higher than the emergency power.
  • 2-in-1 LED test switch and indicator light included; manual testing by optional remote control.
  • Monthly and annual self-testing, with battery overcharge, over-discharge, output overload, short-circuit and open-load protection.
  • 5-year limited warranty.

Tech specs.

HSE-EIA-01S

Electrical

Input voltage
100–347 V AC, 50/60 Hz
Input current
0.15 A max
Input power
12 W max
Power factor
0.6 @ 100 V AC, 0.5 @ 347 V AC
LED load input
6 A max (AC)
Output voltage
145 V DC
Hook-up
Supply line (AC)
Compatible LED luminaires
9 W model: 9–80 W with 0–10 V dimming or 3–8 W without · 15 W model: 15–120 W with 0–10 V dimming or 6–14 W without · 25 W model: 25–200 W with 0–10 V dimming or 10–24 W without · 32 W model: 32–300 W with 0–10 V dimming or 10–31 W without · 40 W model: 40–350 W with 0–10 V dimming or 10–39 W without

Battery & emergency

Emergency power
9 / 15 / 25 / 32 / 40 W, constant output power
Emergency duration
90 min
Battery
Lithium
Battery capacity
9 W: 14.4 V / 1800 mAh · 15 W: 14.4 V / 2600 mAh · 25 W: 14.4 V / 4400 mAh · 32 W: 14.4 V / 5200 mAh · 40 W: 14.4 V / 6600 mAh
Recharge time
< 24 h
Self-test
Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months
Test switch
2-in-1 LED test switch and indicator light (test plate with infrared receiver)
Remote control
Optional — manual, monthly and annual tests; Bluetooth reset
Bluetooth
-B models

Environment

Ambient temperature
0–50 °C (32–122 °F)
Locations
Damp locations and plenum spaces

Mechanical

Size
9 / 15 W: 14.6 × 1.62 × 1.43 in (371 × 41.4 × 36.4 mm) · 25 / 32 / 40 W: 12.24 × 2.59 × 1.53 in (311 × 66 × 39 mm)
Wiring
AC input, AC output to the LED driver, 0/1–10 V dimming in and out, 12 V DC sensor lead
Accessories
Test plate (infrared receiver, LED indicator and test button), wire nuts, screws; remote control optional

Compliance

Marks
cULus Listed E528696 · CEC Title 20 · NFPA 101
Listing
UL listed for field or factory installation

Warranty

Warranty
5 years, limited

Models & ordering

ModelRating / optionNotes / dimensions
HSE-EIA09-01SBuy online9 W · regular14.6 × 1.62 × 1.43 in (371 × 41.4 × 36.4 mm)
HSE-EIA09-01S-B9 W · Bluetooth14.6 × 1.62 × 1.43 in (371 × 41.4 × 36.4 mm)
HSE-EIA15-01SBuy online15 W · regular14.6 × 1.62 × 1.43 in (371 × 41.4 × 36.4 mm)
HSE-EIA15-01S-B15 W · Bluetooth14.6 × 1.62 × 1.43 in (371 × 41.4 × 36.4 mm)
HSE-EIA25-01SBuy online25 W · regular12.24 × 2.59 × 1.53 in (311 × 66 × 39 mm)
HSE-EIA25-01S-B25 W · Bluetooth12.24 × 2.59 × 1.53 in (311 × 66 × 39 mm)
HSE-EIA32-01SBuy online32 W · regular12.24 × 2.59 × 1.53 in (311 × 66 × 39 mm)
HSE-EIA32-01S-B32 W · Bluetooth12.24 × 2.59 × 1.53 in (311 × 66 × 39 mm)
HSE-EIA40-01SBuy online40 W · regular12.24 × 2.59 × 1.53 in (311 × 66 × 39 mm)
HSE-EIA40-01S-B40 W · Bluetooth12.24 × 2.59 × 1.53 in (311 × 66 × 39 mm)
