Integrated Slim CCT PIR Sensor

Electrical

Input voltage

10–15 V DC

Input current

< 15 mA

Standby power

< 0.5 W @ 10 V DC

Control method

0–10 V dimming

Detection

Sensor type

PIR

Lens

Fresnel lens

Detection angle

360° (ceiling mounted) · ≤ 120° (wall mounted)

Max mounting height

< 4 m (13 ft)

Detection range

2–4 m (6.56–13.12 ft) radius

Functions

Daylight harvesting · dusk/dawn (photocell)

Settings — regular version

Control device

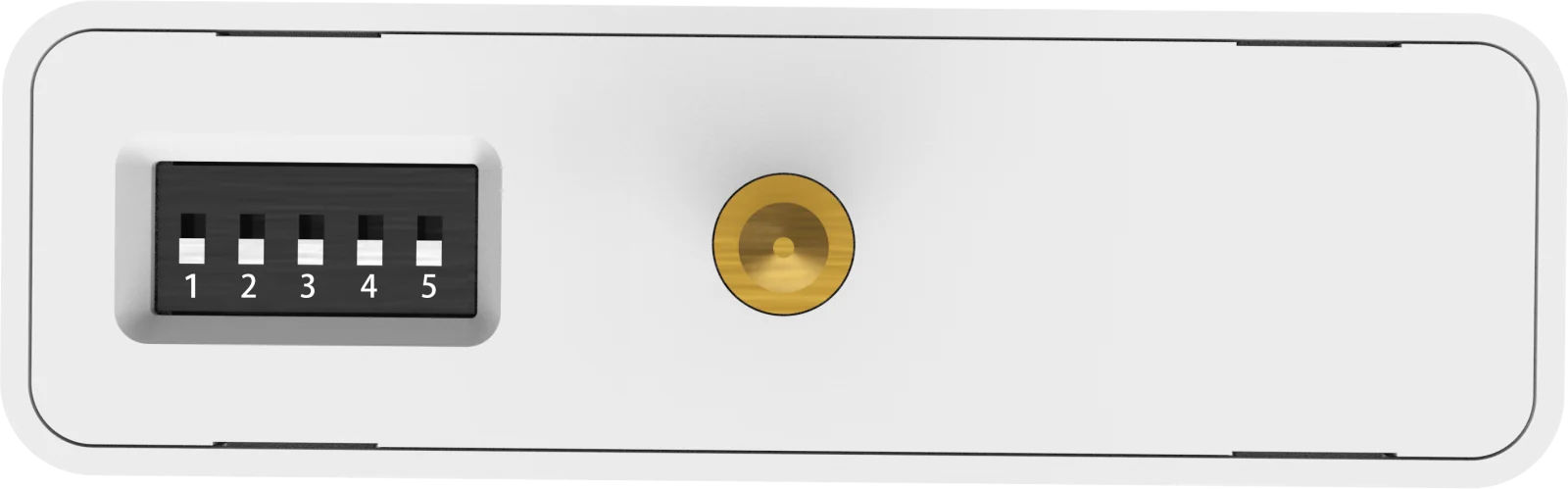

Remote control HD06R (purchased separately) and DIP switches

Warm-up period

10 s

Detection area

100% only (remote)

Hold time

Remote: 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min; DIP switches: 5 s / 5 min

Daylight threshold

Remote: Disable / 400 lux / 350 lux / 300 lux / 250 lux / 200 lux / 120 lux / 80 lux / 50 lux / 30 lux / 10 lux / 2 lux; DIP switches: Disable / 50 lux

Standby period

Remote: 0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞; DIP switches: 5 min / +∞

Standby dimming level

Remote: 10% / 20% / 30% / 50%; DIP switches: 0% / 20%

Sensing mode

DIP switches: sensor on / sensor off

CCT function

2700 K – 6500 K via the CCT button on the remote control

Bluetooth version

Control

HSE WISE app

Radio frequency

2.4 GHz (2402–2480 MHz)

Bluetooth version

5.4

Detection area

High / Medium / Low

Max dim level

1–100%, continuously adjustable

Hold time

5 s / 30 s / 1–120 min (1 min steps)

Standby dimming level

1–100% (1% steps)

Standby period

0 s / 5 s / 30 s / 1–120 min (1 min steps) / ∞

Daylight threshold

Disable / 50–2000 lux (50 lux steps)

CCT function

Adjusted in the HSE WISE app

Manual dimming

10–100% in manual mode, 60–100% in sensor mode

Environment

Operating temperature

−30 °C to +60 °C

IP rating

IP20

Mechanical

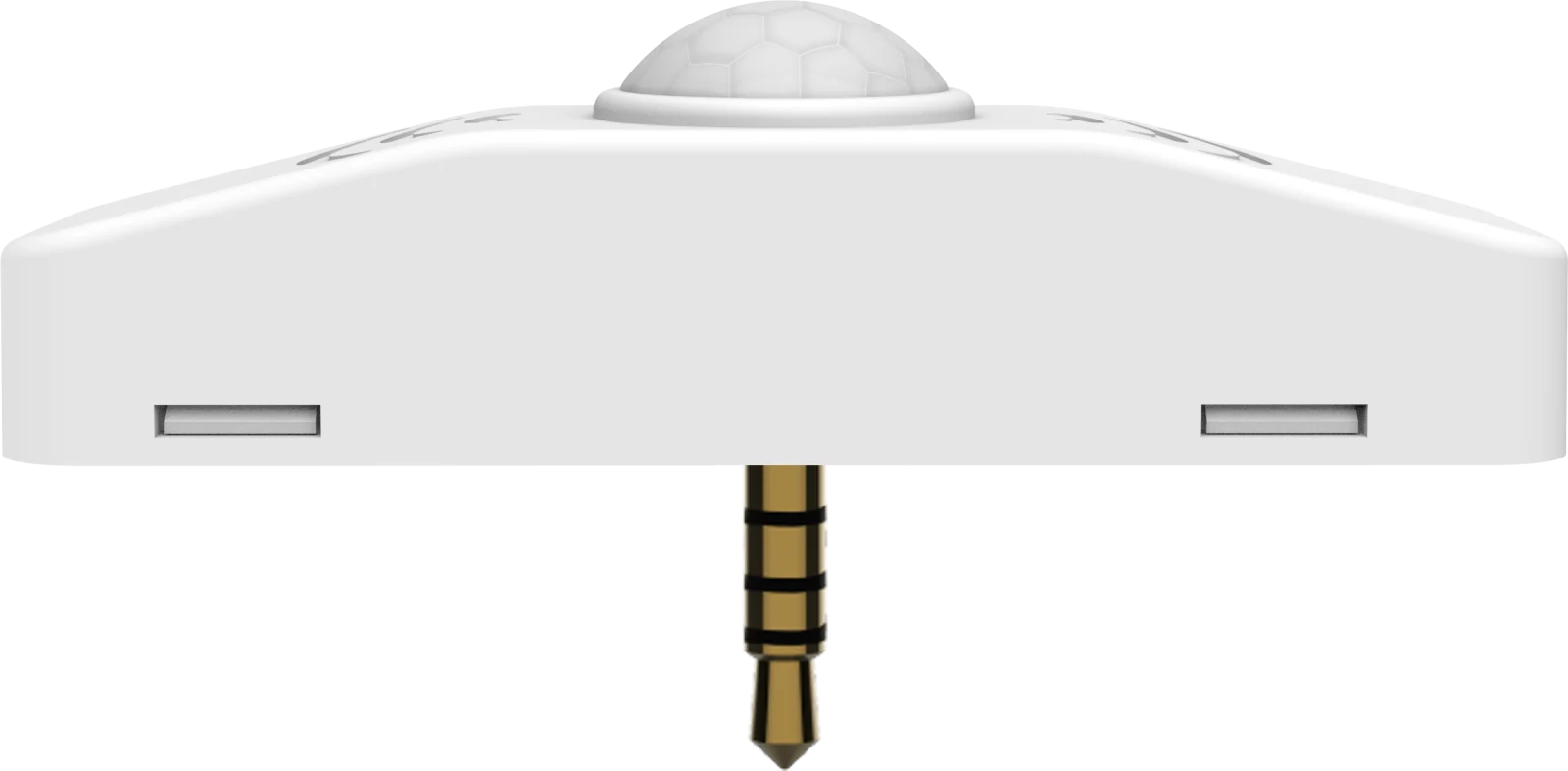

Connection

4-pin audio plug (DIM+, 12V, GND, CCT)

Height

19.3 mm (0.76 in)

Height incl. plug

33.6 mm (1.32 in)

Compliance

Marks

cURus Recognized E529048 · FCC · CE · RoHS · IP20

Warranty

Warranty

5 years
