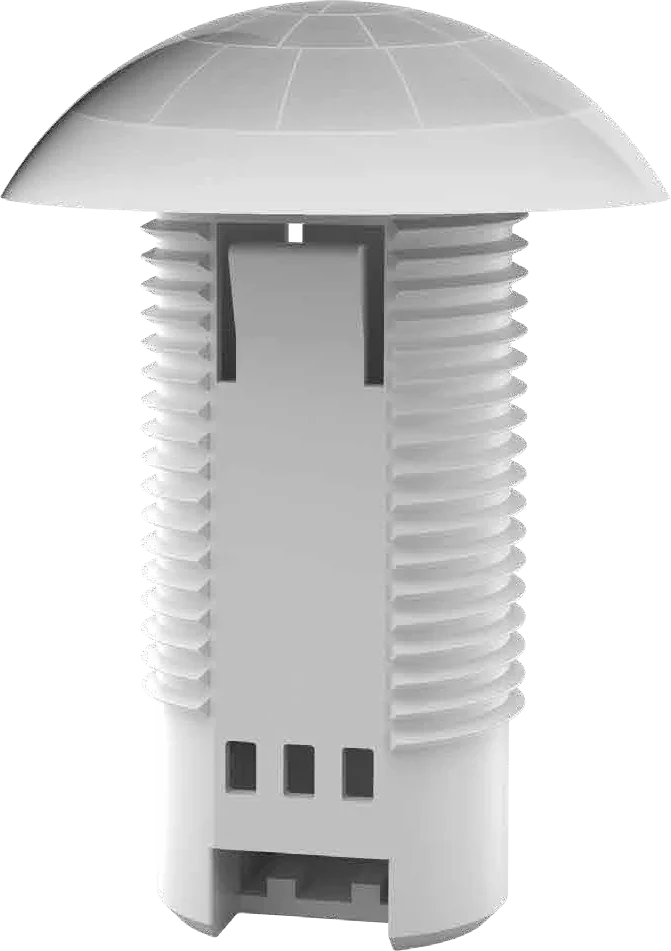

Integrated Mushroom PIR Sensor

Electrical

Input voltage

10.5–15 V DC

Input current

< 20 mA

Standby power

< 0.5 W @ 10.5 V DC

Control method

0–10 V dimming

Emergency driver compatibility

HAISEN/HSE emergency drivers, when switching capacity < 1 mA, the LED driver's OFF voltage at 1 mA is 0.25–0.3 V, and a single fixture is connected

Detection

Sensor type

PIR

Lens

Fresnel lens

Detection angle

360° (ceiling mounted) · ≤ 120° (wall mounted)

Max mounting height

< 4 m (13 ft)

Functions

Daylight harvesting

Settings — regular version

Control device

Remote control HD06R (purchased separately)

Warm-up period

10 s

Detection area

25% / 50% / 75% / 100%

Hold time

5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min

Daylight threshold

2 lux / 10 lux / 30 lux / 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux / Disable (remote only)

Standby dimming level

10% / 20% / 30% / 50%

Standby period

0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞

Bluetooth version

Control

HSE WISE app

Bluetooth range

30 m (98 ft)

Radio frequency

2.4 GHz (2402–2480 MHz)

Bluetooth version

5.4

Detection area

High / Medium / Low

Max dim level

1–100%, continuously adjustable

Hold time

5 s / 30 s / 1–120 min (1 min steps)

Standby dimming level

1–100% (1% steps)

Standby period

0 s / 5 s / 30 s / 1–120 min (1 min steps) / ∞

Daylight threshold

Disable / 50–2000 lux (50 lux steps)

Environment

Operating temperature

−25 °C to +60 °C

IP rating

IP20

Mechanical

Connection

Terminal connection (D, G, V)

Size

Ø 29.8 × 46.6 mm (Ø 1.17 × 1.83 in)

Depth below the head

39.6 mm (1.55 in)

Compliance

Marks

cURus Recognized E529048 · FCC · CE · RoHS · IP20

Warranty

Warranty

5 years
