Gateway

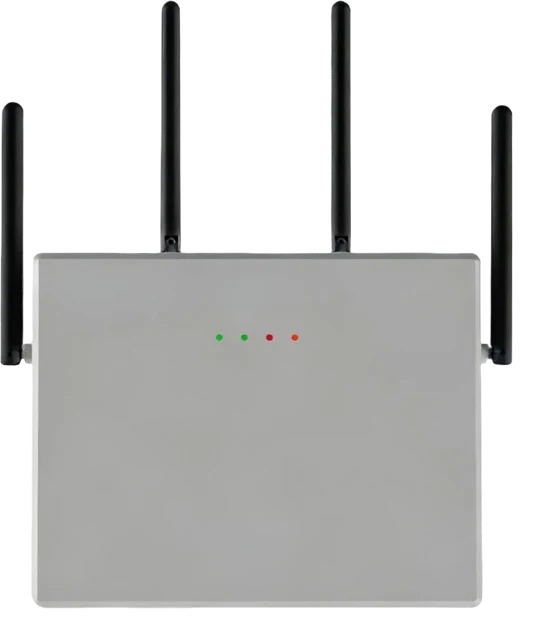

HSE-BG1

An IP65 Bluetooth, dual-band Wi-Fi and Ethernet gateway with built-in local storage, so scenes are managed and saved schedules keep running without the network.

IP65BT 5.4 · Wi-Fi · Ethernet500 devicesBluetooth (HSE WISE)
US service center, Houston TX 24 h service call 72 h on-site service
12 V DCInput
Bluetooth 5.4 · Wi-Fi 2.4 / 5 GHzWireless
Ethernet 10/100/1000 Base-TConnection
HSE WISE app · cloud platformControl

Highlights.

  • Bluetooth (2.4 GHz, BLE, integrated power amplifier), dual-band Wi-Fi (2.4 GHz and 5 GHz) and wired Ethernet.
  • Built-in local storage: scenes are stored and managed without relying on the network.
  • When offline, saved schedules keep running on the built-in clock.
  • 500 controllable devices; Bluetooth control distance 500 m / 1640.42 ft.
  • With an internet or Wi-Fi connection: cloud and remote control, and Buildings and Areas managed on the cloud platform (iot.hsesmartinc.com).
  • For smart home control centers, industrial IoT gateways and intelligent building automation systems.

Tech specs.

HSE-BG1

Electrical

Power input
12 V DC
Power consumption
≈ 3.6 W (max)
Memory
128 MB DDR2
Flash
1 GB
Ethernet
10/100/1000 Base-T (IEEE 802.3), 10/100/1000 Mbps (auto-sensing), Auto MDI/MDIX
Ethernet isolation
2 kV RMS
Wi-Fi protocol
IEEE 802.11b/g/n/a/ac/ax
Wi-Fi bands
2.4 GHz: CH1–CH13 / 2400–2483.5 MHz · 5 GHz: CH36–CH48 / 5150–5250 MHz, CH52–CH64 / 5250–5350 MHz, CH100–CH144 / 5470–5725 MHz, CH149–CH165 / 5725–5850 MHz
Wi-Fi sensitivity
−85 dBm
Wi-Fi antenna
2 × 50 Ω N-female external connectors

Bluetooth version

Control
HSE WISE app; cloud platform iot.hsesmartinc.com
Frequency band
2402–2480 MHz
Bluetooth version
BT 5.4
Sensitivity
−97 dBm
Output power
10 dBm
Controllable devices
500
Control distance
500 m / 1640.42 ft

Environment

Operating temperature
−40 °C to +70 °C
Storage temperature
−40 °C to +85 °C
Relative humidity
0–95%
IP rating
IP65

Mechanical

Ports & buttons
Internet port (RJ45) · power connector · reset button · mounting holes
Indicators
4 LEDs: function, LAN, Bluetooth, Wi-Fi

Compliance

Marks
cULus Listed · FCC · CE · RoHS · IP65

Models & ordering

ModelRating / optionNotes / dimensions
HSE-BG1Gateway
