Linear High-Bay PIR Sensor, 39 ft

Electrical

Input voltage

12–24 V DC

Input current

< 30 mA (regular) · < 20 mA (Bluetooth)

Standby power

< 0.5 W at 12 V DC

Dimming

0–10 V

Detection

Sensor type

PIR

Detection angle

Fresnel lens: ceiling-mounted 360°, wall-mounted ≤ 120°

Max mounting height

12 m (39 ft)

Detection range

Radius 3–7 m (9.84–22.97 ft)

Settings — regular version

Control

Remote control HD06R (purchased separately) and manual switches

Detection area

Remote: 25% / 50% / 75% / 100%

Hold time

Remote: 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min · manual switches: 5 s / 1 min / 5 min / 10 min

Daylight threshold

2 / 10 / 30 / 50 / 80 / 120 / 200 / 250 / 300 / 350 / 400 lux / disable

Standby dimming level

10% / 20% / 30% / 50%

Standby period

0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞

Bluetooth version

Control

HSE WISE app

Bluetooth range

30 m (98 ft)

Radio frequency

2.4 GHz (2402–2480 MHz)

Bluetooth version

5.4

Detection area

High / Medium / Low

Hold time

5 s / 30 s / 1–120 min (adjustment range 1 min)

Standby dimming level

1–100% (adjustment range 1%)

Standby period

0 s / 5 s / 30 s / 1–120 min (adjustment range 1 min) / ∞

Daylight threshold

Disable / 50–2000 lux (adjustment range 50 lux)

Environment

Operating temperature

−20 °C to +60 °C

Mechanical

Connection

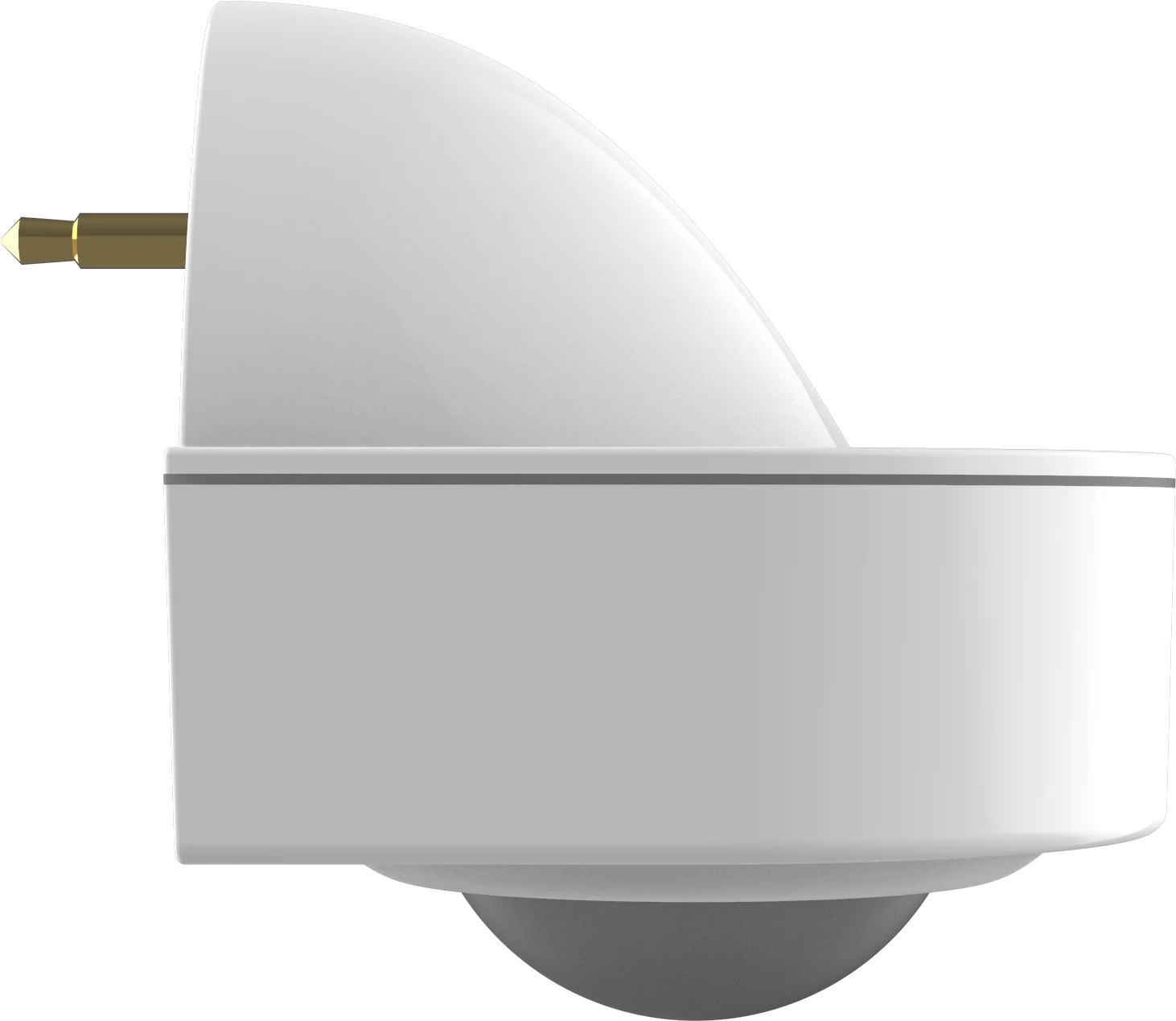

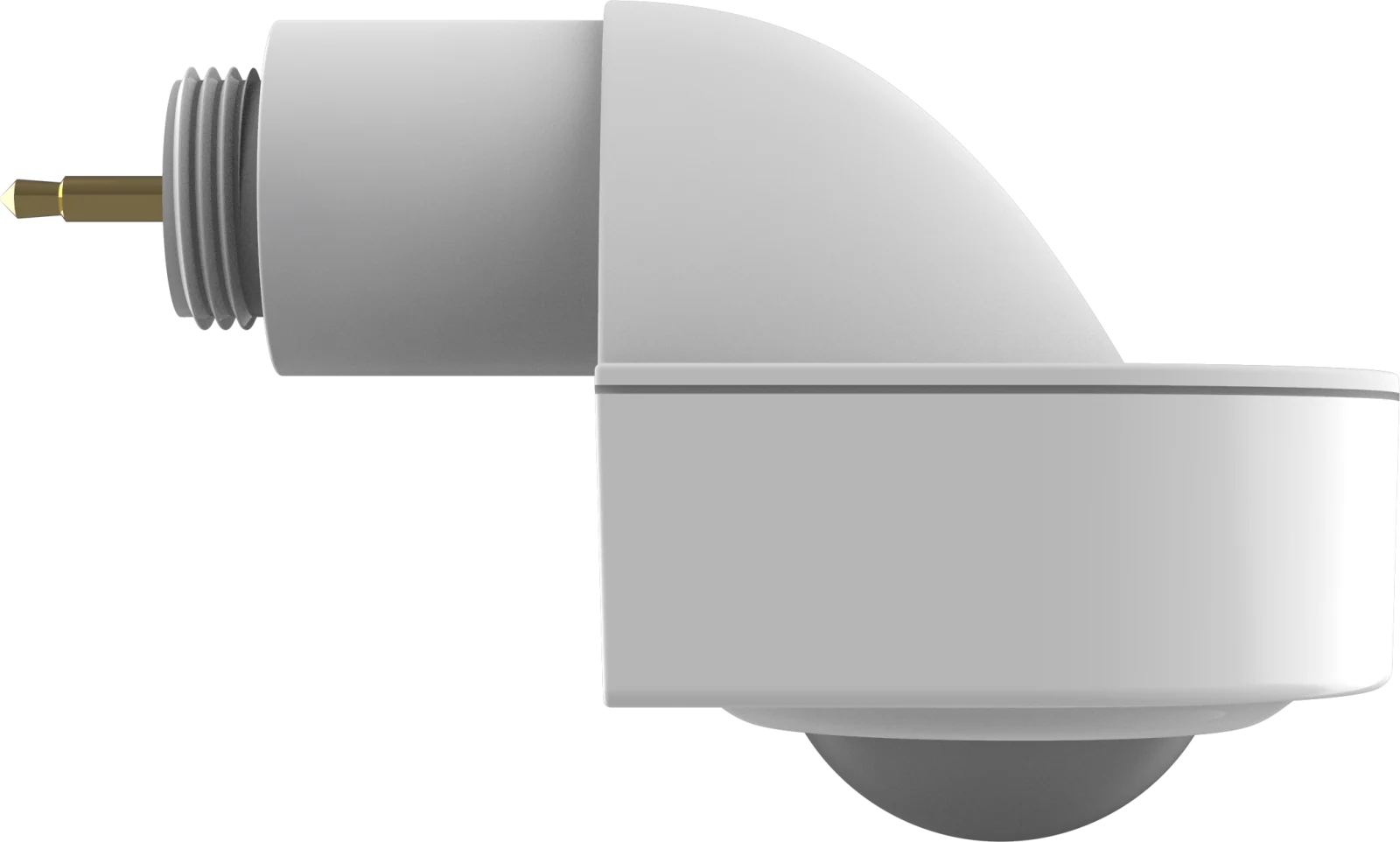

Elbow + 3-pin (-1), elbow + audio jack (-2A), audio jack (-2B), audio jack at higher position (-2C)

Compliance

Marks

cURus Recognized E529048 · FCC · CE · RoHS

Warranty

Warranty

5 years
