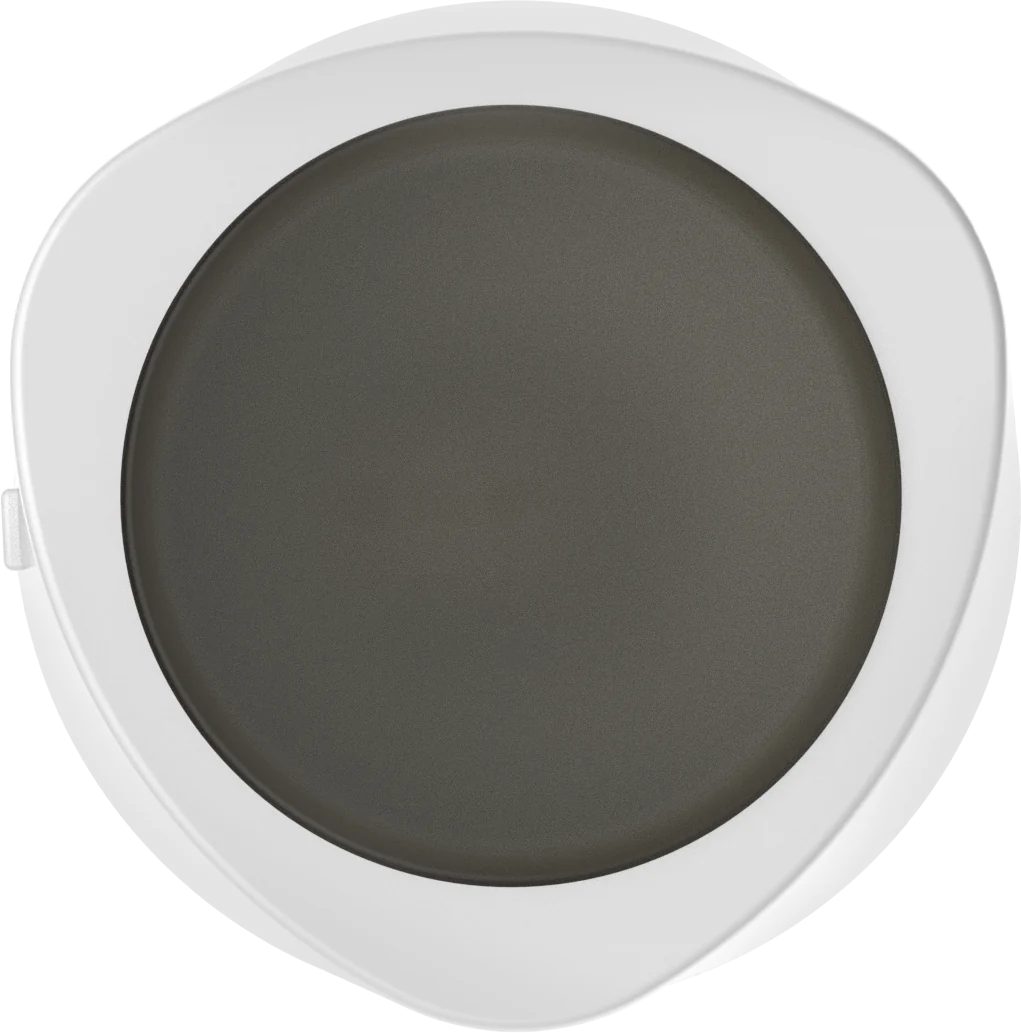

High-Bay Microwave Sensor, 26.24 ft

Electrical

Input voltage

10.5–15 V DC

Input current

< 30 mA

Standby power

< 0.5 W at 12 V DC

Control method

On/off, 0–10 V dimming

Detection

Sensor type

Microwave

Frequency

5.83–5.87 GHz

Microwave power

< 0.3 mW

Max mounting height

8 m (26.24 ft)

Detection range

Radius 4–8 m (13.12–26.24 ft)

Settings — regular version

Control

Remote control HD06R (purchased separately)

Detection area

25% / 50% / 75% / 100%

Hold time

5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min

Daylight threshold

2 / 10 / 30 / 50 / 80 / 120 / 200 / 250 / 300 / 350 / 400 lux / disable

Standby dimming level

10% / 20% / 30% / 50%

Standby period

0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞

Bluetooth version

Control

HSE WISE app

Bluetooth range

30 m (98 ft)

Radio frequency

2.4 GHz (2402–2480 MHz)

Bluetooth version

5.4

Detection area

High / Medium / Low

Hold time

5 s / 30 s / 1–120 min (adjustment range 1 min)

Standby dimming level

1–100% (adjustment range 1%)

Standby period

0 s / 5 s / 30 s / 1–120 min (adjustment range 1 min) / ∞

Daylight threshold

Disable / 50–2000 lux (adjustment range 50 lux)

Environment

Operating temperature

−30 °C to +60 °C

IP rating

IP65

Mechanical

Connection

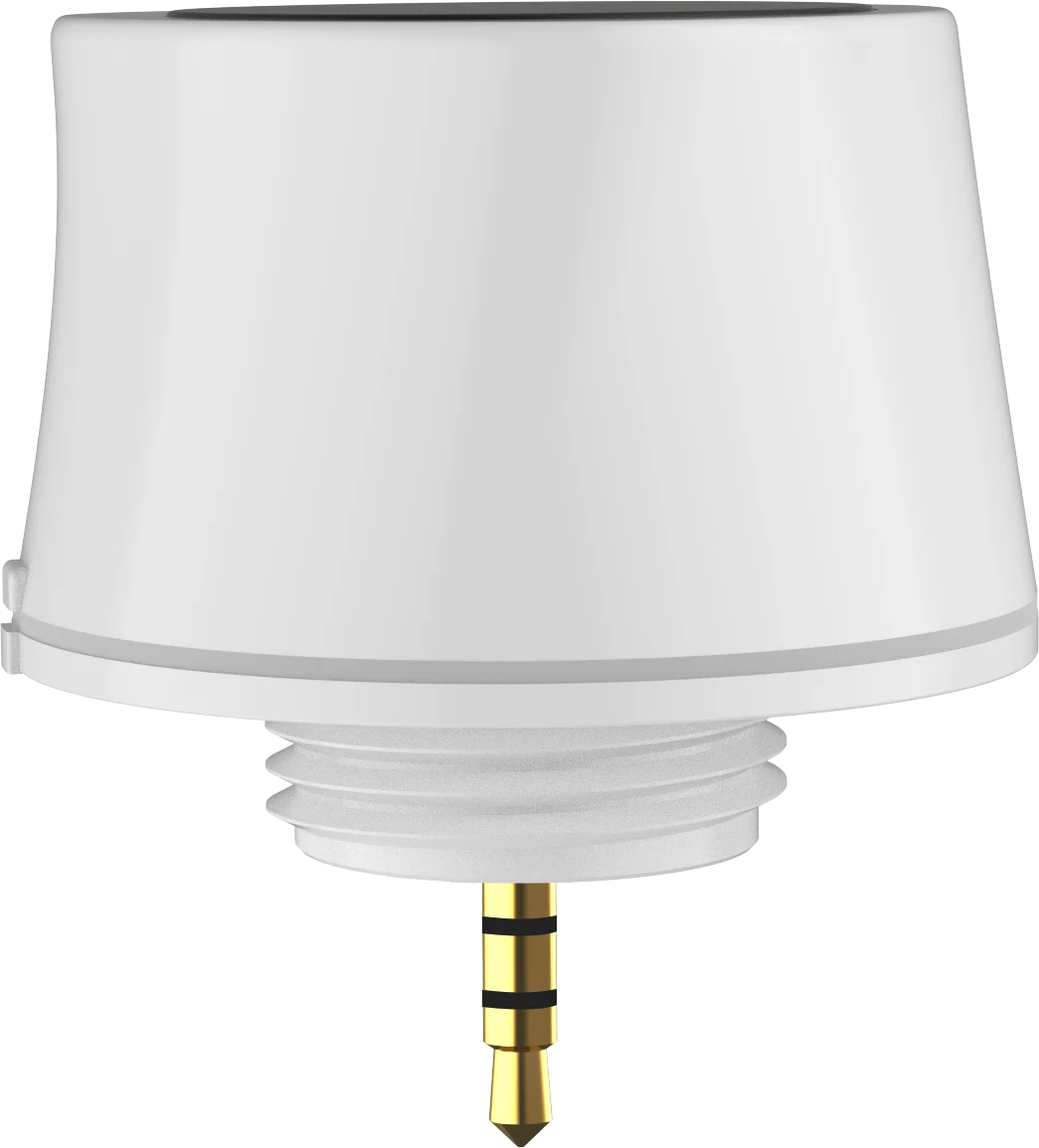

3-pin (-1) or audio jack (-2)

Housing diameter

Ø 39.5 mm (1.55 in) (drawings for HSE-SM19L-1 / -2)

Compliance

Marks

cURus Recognized E529048 · FCC · CE · RoHS · IP65
