AC sensors, 220–240 V

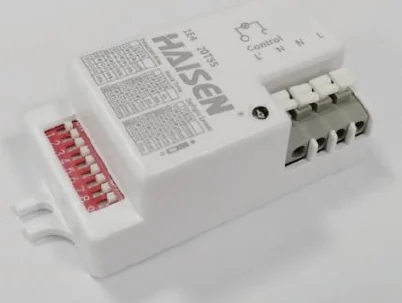

Compact On/Off Sensor for Ceiling Lights
HD01S-6 · HD01S-9
A compact 220–240 V AC on/off sensor with daylight sensor and loop-in/loop-out wiring for ceiling lights and bulkheads, in 6-switch and 9-switch versions.
Market: EuropeDaylight sensorLoop in / loop outDIP switch
220–240 V ACInput
3–7 m radiusDetection range
6 or 9 switchesControl
IP20IP rating
Highlights.
- Automatic on/off control with daylight sensor.
- Adjustable detection range, hold time and daylight threshold.
- Versions with 6 or 9 setting switches.
- Compact size, suited to ceiling lights and bulkheads.
- Loop-in and loop-out wiring for easy installation.
Tech specs.
HD01S-6 · HD01S-9Electrical
- Input voltage
- 220–240 V AC
- Control
- 6 switches or 9 switches (by version)
Detection
- Installation height
- 4 m
- Detection range
- 3–7 m radius
- Settings
- Detection range, hold time, daylight threshold
Environment
- Operating temperature
- −20 °C to +60 °C
- IP rating
- IP20
Mechanical
- Wiring
- Loop in and loop out
Compliance
- Marks
- TÜV · CE · RED · RoHS · IP20
Warranty
- Warranty
- 5 years
Models & ordering
| Model | Rating / option | Notes / dimensions |
|---|---|---|
| HD01S-6 | ||
| HD01S-9 |
Documents.
Request a file and we’ll email it to you.You may also need.
