Microwave & PIR High-Bay Sensor Heads, 12 m

Electrical

Input voltage

12 V DC (voltage range 10–15 V DC)

Input current

< 30 mA

Standby consumption

< 30 mA

Dimming

0–10 V

Detection

Sensor type

Microwave: HD07VR-MH, -M, -MH-1 · PIR: HD07VR-PH, -P, -PH-1

Frequency (microwave)

5.8 GHz ± 75 MHz

Microwave power

< 0.3 mW

Infrared wavelength (PIR)

5–14 µm

Installation height

12 m (39 ft) max. · HD07VR-M and HD07VR-P: 6 m (19 ft) max.

Detection distance

≥ 3 m (9 ft)

Settings — regular version

Control

LCD remote, purchased separately: HD06R (HD07VR-MH/-M, -PH/-P sheets) · HD05R (HD07VR-MH-1, -PH-1 sheets)

Detection area

25% / 50% / 75% / 100%

Hold time

5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min

Daylight threshold

Disable / 2 / 10 / 30 / 50 / 80 / 120 lux

Standby dimming level

10% / 20% / 30% / 50%

Standby period

0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞

Dusk/dawn (photocell)

Daylight threshold 30 / 50 / 80 / 120 lux, standby period +∞, standby dimming level 10% / 20% / 30%

Default program

Detection area 100% · hold time 5 s · daylight threshold disable · standby period 0 s · standby dimming level 10%

Environment

Operating temperature

−40 °C to +60 °C (HD07VR-MH, -M, -MH-1, -PH-1) · −20 °C to +60 °C (HD07VR-PH, -P)

Storage temperature

−40 °C to +80 °C

Humidity

85% (non-condensation)

IP rating

IP65 (HD07VR-MH, -M, -MH-1, -PH, -P) · IP20 (HD07VR-PH-1)

Mechanical

Connection

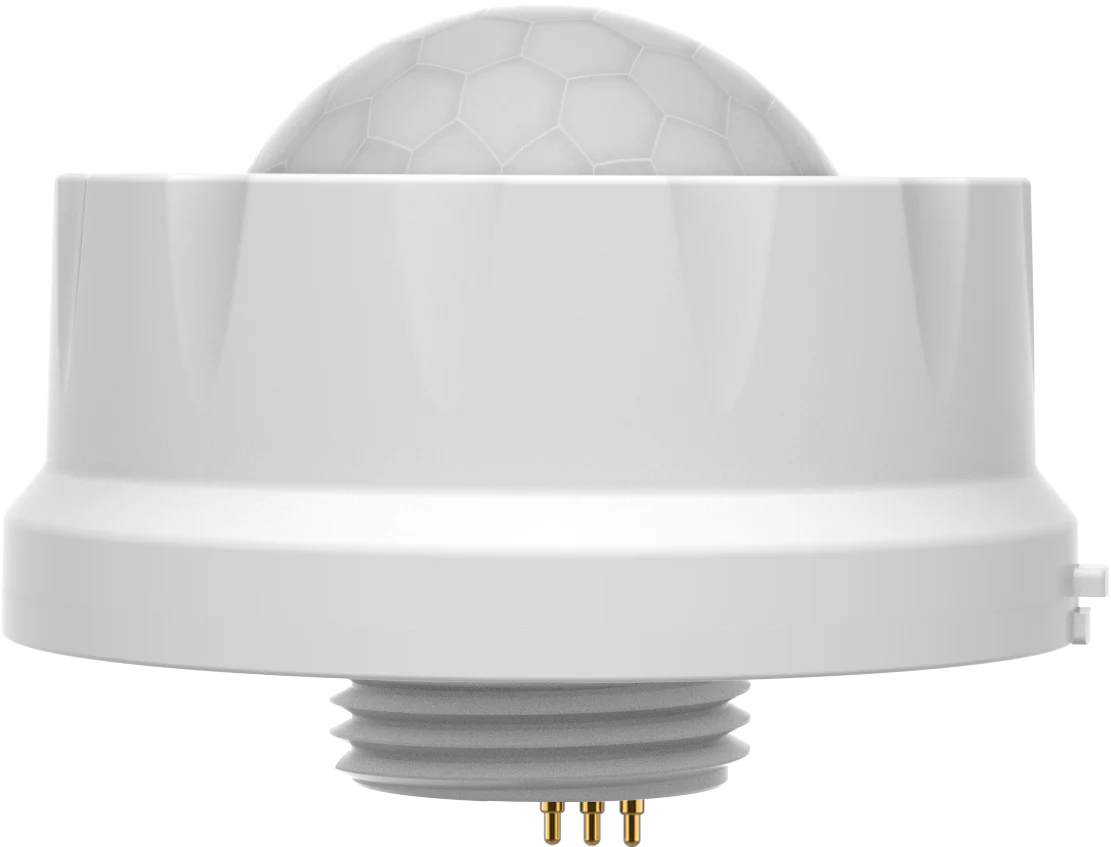

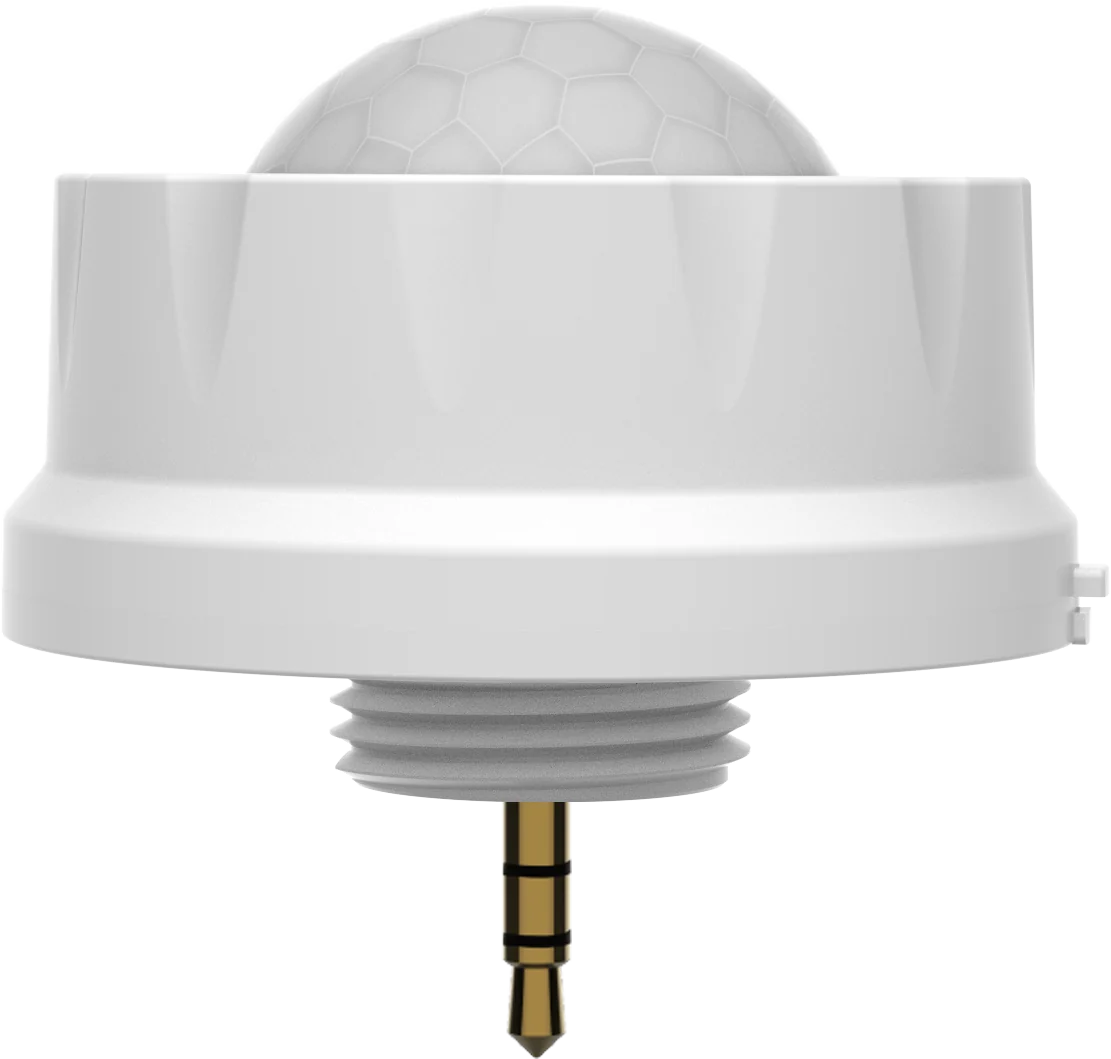

HD07VR-MH/-M, -PH/-P: HD07VR receptacle Type A, A-3, A-3-1, B, C or D · HD07VR-MH-1, -PH-1: audio jack

Wiring

Type A / B / C receptacles — 12 V DC input: black & white wire · DIM+: purple wire · DIM−: pink wire · Type A-3 / A-3-1: yellow, pink and purple wires

Compliance

Marks

cURus Recognized E529048 · CE · RoHS

Warranty

Warranty

5 years (microwave: HD07VR-MH, -M, -MH-1) · 3 years (PIR: HD07VR-PH, -P, -PH-1)
