Square Microwave Sensor, 19.6 ft

Name: Square Microwave Sensor, 19.6 ft
Brand: HSE
SKU: HSE-SM3L-5H

HSE-SM3L-5H

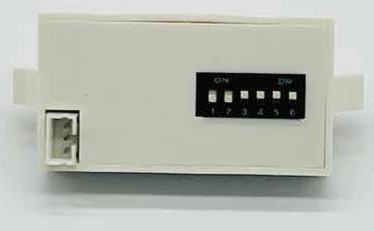

Compact microwave sensor with 0–10 V dimming and a daylight sensor, designed for recessed and bulkhead-mounted light fixtures; set with the HD06R remote or manual switches.

Remote or DIP switchesRemote controlDIP switch

Get a quote Order samples

US service center, Houston TX 24 h service call 72 h on-site service

10–15 V DCInput

6 m (19.6 ft)Max height

Radius 3–6 m (9.84–19.69 ft)Detection range

360° ceiling · 150° wallDetection angle

Highlights.

Compact microwave sensor designed for recessed and bulkhead-mounted light fixtures.
0–10 V dimming with automatic on/off control by the daylight sensor.
Selectable detection range, hold time and daylight threshold.
Set with the HD06R remote (purchased separately) or the manual DIP switches.
For panel, troffer, strip and wrap fixtures.

Tech specs.

HSE-SM3L-5H

Electrical

Input voltage: 10–15 V DC
Input current: < 30 mA
Standby power: < 0.5 W at 10 V DC
Control method: 0–10 V

Detection

Sensor type: Microwave
Frequency: 5.8 GHz ± 75 MHz
Microwave power: < 0.3 mW
Detection angle: Ceiling mounted 360°, wall mounted 150°
Max mounting height: 6 m (19.6 ft)
Detection range: Radius 3–6 m (9.84–19.69 ft)

Settings — regular version

Control device: HD06R remote (purchased separately) & manual switches
Detection area: Remote: 25% / 50% / 75% / 100% · Manual: 50% / 100%
Hold time: Remote: 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min · Manual: 5 s / 5 min
Daylight threshold: Remote: Disable / 2 / 10 / 30 / 50 / 80 / 120 / 200 / 250 / 300 / 350 / 400 Lux · Manual: Disable / 50 Lux
Standby period: Remote: 0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / +∞ · Manual: 5 min / +∞
Standby dimming level: Remote: 10% / 20% / 30% / 50% / 100% · Manual: 0% / 20%
