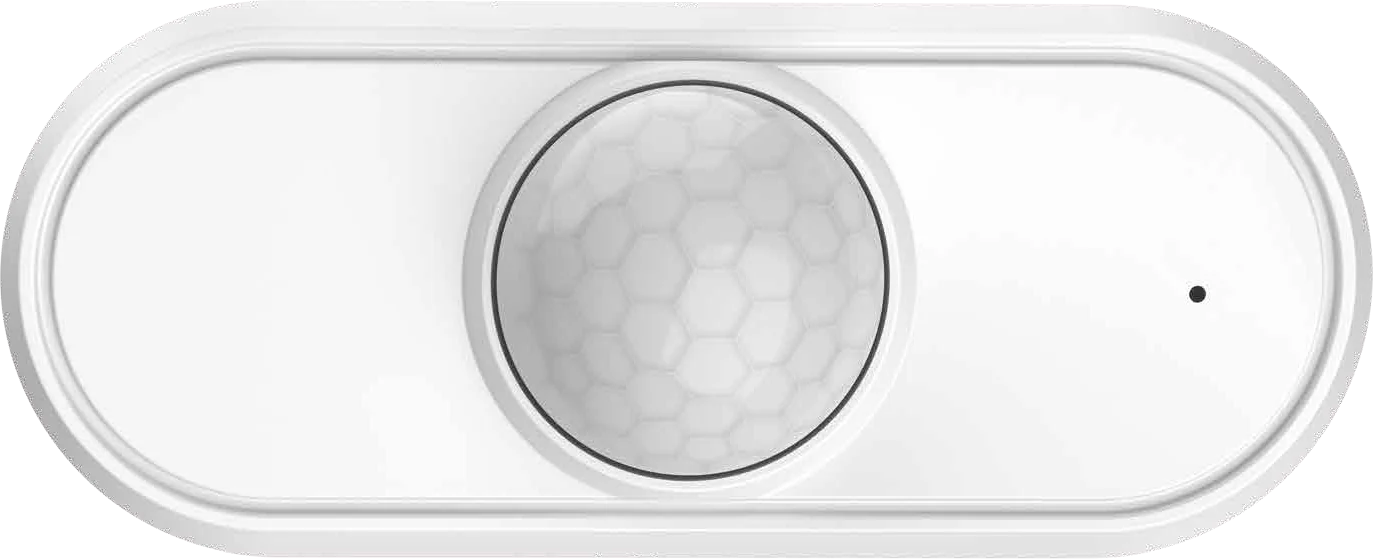

DALI-2 & D4i PIR Sensor, 62 × 25 mm
HSE-DSP2L-5
PIR motion and daylight sensor powered via the DALI bus, DALI-2 & D4i certified, with all sensor parameters set from the DALI central controller.
DALI-2 & D4iPlug & playDALI
Powered via DALI busInput
PIR (303) + daylight (304)Sensor
< 4 m (13 ft)Max height
Radius 3–7 m (10–23 ft)Detection range
Highlights.
- Dedicated sensor for intelligent lighting, compatible with DALI-2 and D4i standards; plug & play.
- Motion sensor instance type 3 (303) and light sensor instance type 4 (304).
- Powered via the DALI bus and works seamlessly with D4i drivers.
- All sensor parameters can be set by the DALI central controller.
- Fresnel lens: ceiling mounted 360° (wall mounted ≤ 120°), mounting height < 4 m (13 ft).
Tech specs.
HSE-DSP2L-5Electrical
- Input voltage
- Powered via DALI bus
- Input current
- 10 mA + 5 mA (bus voltage 16 V)
- Output signal
- DALI-2 / D4i
Detection
- Sensor type
- PIR
- Functions
- PIR sensing (303) / daylight detection (304)
- Detection angle
- Fresnel lens: ceiling mounted 360°, wall mounted ≤ 120°
- Max mounting height
- < 4 m (13 ft)
- Detection range
- Radius 3–7 m (10–23 ft)
- Detection area
- DALI master setting
- Daylight sensor
- DALI master setting
- Standby dim level
- DALI master setting
Environment
- Operating temperature
- −30 °C to +60 °C
- IP rating
- IP20
Mechanical
- Connection
- 2-pin connector DA / DA (DALI bus)
- Size
- 2.44″ (62 mm) × 0.98″ (25 mm)
Compliance
- Marks
- DALI-2 & D4i · cURus Recognized E529048 · FCC · CE · RoHS · IP20
Warranty
- Warranty
- 5 years
Models & ordering
| Model | Rating / option | Notes / dimensions |
|---|---|---|
| HSE-DSP2L-5 | PIR · DALI-2 / D4i | 62 × 25 mm (2.44″ × 0.98″) |
