New

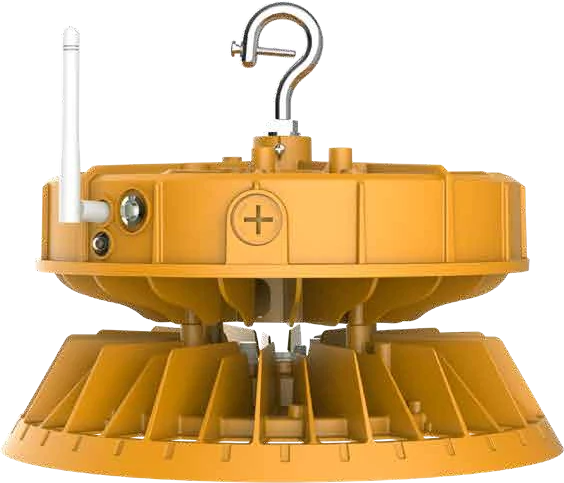

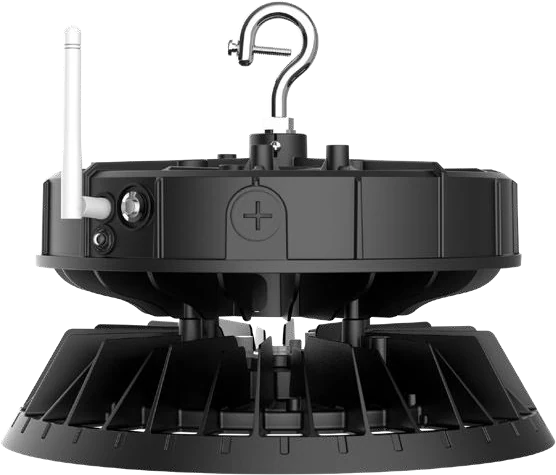

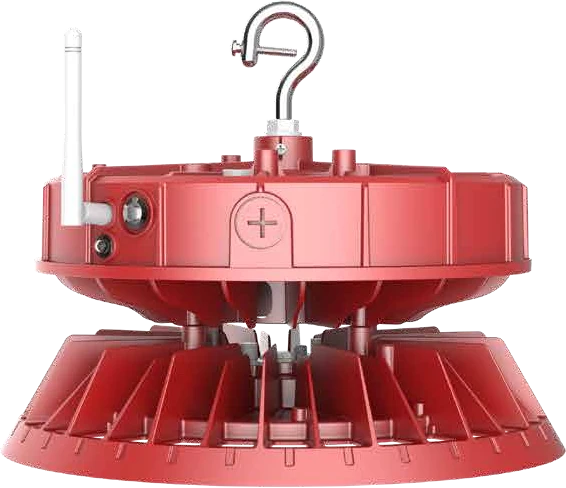

Emergency UFO High Bay, 80–150 W
HSE-EDA-02S-150-EL
The mid-power emergency UFO high bay — 80, 100 or 150 W with 10–20 W emergency output.
US patentBluetooth (HSE WISE)Remote control
120–347 V ACInput
80 / 100 / 150 WWattage
10–20 WEmergency power
LiFePO4Battery
Highlights.
- Designed specifically for the UFO high bay.
- Combination driver that provides both AC and emergency operation.
- Three selectable wattages and adjustable CCT — 3500 K / 4000 K / 5000 K.
- Remote control and Bluetooth control versions.
- Patent No. US 12,504,158 B1.
Tech specs.
HSE-EDA-02S-150-ELElectrical
- Input voltage
- 120–347 V AC
- Wattage selectable
- 80 / 100 / 150 W
- Emergency power
- 10 / 15 / 20 W
- Battery type
- LiFePO4
Light & control
- CCT selectable
- 3500 / 4000 / 5000 K
- Control
- Remote control or Bluetooth
Mechanical
- Dimensions
- 11.02 × 8.70 in
- Housing colors
- Black, silver, white, red, yellow
- Patent
- US 12,504,158 B1
Applications
Documents.
Request a file and we’ll email it to you.You may also need.
