Mounting Receptacles for High-Bay Sensors

Name: Mounting Receptacles for High-Bay Sensors
Brand: HSE
SKU: HD07VR

HD07VR · HD10VR-A-1 · HD06VCRH 7 · HSE-WK1 / WK3 / WK4 / WK5 / WK6

3-pin, audio-jack and Zhaga receptacles and terminal bases that partner HSE high-bay sensors and HD07VR sensor heads with light fixtures, as listed on their spec sheets.

3-pin · audio jack · Zhaga

Get a quote Order samples

US service center, Houston TX 24 h service call 72 h on-site service

3-pin · audio jack · ZhagaConnection

HSE high-bay sensors · HD07VR sensor headsSensor

4-wire terminal bases with CCT wire (HSE-WK1, WK3, WK5, WK6)CCT

HSE-WK1 Ø36 mm · HSE-WK5 Ø36.5 mm · HSE-WK6 Ø28 mmSize

Highlights.

HSE high-bay sensor sheets list 3-pin receptacles HD07VRA, HD07VRA-3, HD07VRB and HD07VRC, and audio-jack receptacles HD07VRA-3-1 and HD07VRB2.
Zhaga receptacle HD06VCRH 7 is listed on the same sheets (all except HSE-SM19L).
The HSE-SP11H and HSE-SM11H sheets add audio-jack receptacle HD10VR-A-1.
CCT sensor sheets show 4-wire terminal bases: HSE-WK1 and HSE-WK3 (audio jack), HSE-WK5 (Zhaga) and HSE-WK6 (no-elbow version).
HD07VR sensor-head sheets list Type A, A-3, A-3-1, B, C and D receptacles; Type D is a CCT & power adjustable receptacle designed for UFO high-bay lights.

Tech specs.

HD07VR · HD10VR-A-1 · HD06VCRH 7 · HSE-WK1 / WK3 / WK4 / WK5 / WK6

Mechanical

3-pin receptacles: HD07VRA · HD07VRA-3 · HD07VRB · HD07VRC
Audio-jack receptacles: HD07VRA-3-1 · HD07VRB2 · HD10VR-A-1
Zhaga receptacle: HD06VCRH 7
Listed for (HD07VR / HD06VCRH codes): HSE-SP9H, SM9H, SP19H, SP19L, SM19L, SP1H, SM1H and BSP15H sheets; the HSE-SP11H and SM11H sheets list HD07VRA-3, HD07VRA-3-1 and HD10VR-A-1
Terminal bases (CCT sensors): HSE-WK1 · HSE-WK3 · HSE-WK4 · HSE-WK5 · HSE-WK6
Listed for (HSE-WK codes): WK1, WK3: HSE-SCP9H-2, SCP19H, SCM19H, SCP19L, BSCP1H · WK5: HSE-SCP19H, SCM19H, BSCP1H · WK1, WK6: HSE-SCP11H · WK1, WK4: HSE-BSACP18H-2
Wire colours HSE-WK1 / WK3 / WK6: Red: VCC · Black: GND · Yellow: DIM+ · White: CCT
Wire colours HSE-WK5: Black/White: VCC · Pink: GND · Purple: DIM+ · Yellow: CCT
HD07VR receptacle options: Type A · A-3 · A-3-1 · B · C · D (HD07VR-A, HD07VR-MH/M, HD07VR-PH/P sheets)

Applications

High & low bay

Models & ordering

Model	Rating / option	Notes / dimensions
HD07VRA	3-pin receptacle
HD07VRA-3	3-pin receptacle · 3 pogo-pin connection · yellow, pink, purple wires
HD07VRB	3-pin receptacle
HD07VRC	3-pin receptacle
HD07VRA-3-1	Audio-jack receptacle
HD07VRB2	Audio-jack receptacle
HD10VR-A-1	Audio-jack receptacle · black/white, pink, purple wires · 330 mm wire
HD06VCRH 7	Zhaga receptacle

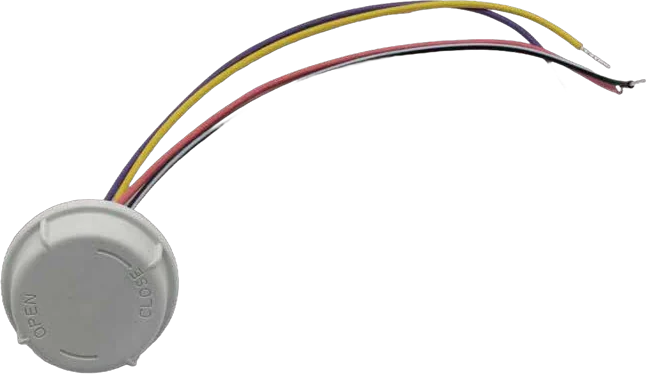

HSE-WK1	Audio-jack terminal base · 4 wires (HSE-SCP11H: for with-elbow version)	Ø36 mm (1.42″)
HSE-WK3	Audio-jack terminal base · 4 wires
HSE-WK4	Terminal base (HSE-BSACP18H-2 sheet)
HSE-WK5	Zhaga terminal base · 4 wires	Ø36.5 mm (1.44″)

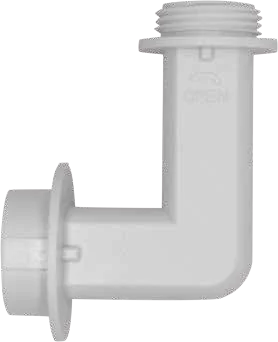

HSE-WK6	Receptacle for the no-elbow version (HSE-SCP11H) · 4 wires	Ø28 mm (1.1″)
Type A (HD07VR)	HD07VR receptacle option · black/white, pink, purple wires
Type A-3 (HD07VR)	HD07VR receptacle option · 3 pogo-pin connection · yellow, pink, purple wires
Type B (HD07VR)	HD07VR receptacle option · black/white, pink, purple wires · 330 mm wire
Type C (HD07VR)	HD07VR receptacle option · black/white, pink, purple wires · 300 mm wire
Type D (HD07VR)	CCT & power adjustable receptacle designed for UFO high-bay lights
