Emergency LED Driver, 10–40 W

HSE-EOG

An emergency LED driver for LED hook-up, 10–40 W, with a wide output-voltage range for isolated and non-isolated LED drivers, in built-in junction box or conduit versions.

Market: North America480 V AC optionJ-box or conduitBluetooth (HSE WISE)Remote control
US service center, Houston TX 24 h service call 72 h on-site service
120–347 / 120–277 / 120–480 / 277–480 V ACInput
20–60 / 90–300 V DCOutput
10–40 WEmergency power
≥ 90 minEmergency duration

Highlights.

  • Wide output-voltage range for isolated and non-isolated LED driver solutions.
  • Remote control and Bluetooth control versions.
  • Built-in junction box (-J) or flexible-conduit versions.
  • Li-ion (10–40 W) or LiFePO4 (12 / 25 W) battery.
  • Input versions for 120–347 V, 120–277 V and, optionally, 120–480 V / 277–480 V AC.
  • Monthly and annual self-testing.

Tech specs.

HSE-EOG

Electrical

Input voltage
120–347 V AC · 120–277 V AC (L) · 120–480 V / 277–480 V AC (H, optional); 50/60 Hz
Input current
0.15 A max
Input power
< 15 W
Power factor
0.6 @ 120 V AC, 0.5 @ 277 V AC
Output voltage
LV: 20–60 V DC · HV: 90–300 V DC
Max. load current
6 A
Hook-up
LED (between the LED driver and the LED board)

Battery & emergency

Emergency power
Li-ion: 10 / 15 / 20 / 25 / 30 / 40 W · LiFePO4: 12 / 25 W
Emergency duration
≥ 90 min
Battery
Li-ion or LiFePO4
Battery capacity
Li-ion — 10 W: 14.4 V / 2000 mAh · 15 W: 14.4 V / 2600 mAh · 20 W: 10.8 V / 4400 mAh · 25 W: 10.8 V / 5200 mAh · 30 W: 14.4 V / 5200 mAh · 40 W: 14.4 V / 6000 mAh · LiFePO4 — 12 W: 9.6 V / 3200 mAh · 25 W: 12.8 V / 4800 mAh
Recharge time
24 h
Self-test
Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months
Test switch
Test button and LED indicator; infrared receiver
Remote control
Optional
Bluetooth
Bluetooth version (B)

Environment

Ambient temperature
Li-ion: 0–50 °C (32–122 °F)

Mechanical

Housing
-J: built-in junction box · without -J: flexible conduit
Size
Per model — see models
Accessories
J-box version: quick connector · conduit version: test plate with LED indicator, wire nuts · remote control optional

Compliance

Marks
cULus Listed (no file number printed)

Warranty

Warranty
5 years

Models & ordering

ModelRating / optionNotes / dimensions
HSE-EOGXX-01S-JXX = 10 / 15 / 20 / 25 W · Li-ion · built-in junction box · regular or Bluetooth11.02 × 2.56 × 1.58 in (280 × 65 × 40.2 mm)
HSE-EOGXX-01S-JXX = 30 / 40 W · Li-ion · built-in junction box · regular or Bluetooth13.58 × 2.56 × 1.58 in (345 × 65 × 40.2 mm)
HSE-EOGXX-02S-JXX = 12 W · LiFePO4 · built-in junction box · regular or Bluetooth11.02 × 2.56 × 1.58 in (280 × 65 × 40.2 mm)
HSE-EOGXX-02S-JXX = 25 W · LiFePO4 · built-in junction box · regular or Bluetooth13.58 × 2.56 × 1.58 in (345 × 65 × 40.2 mm)

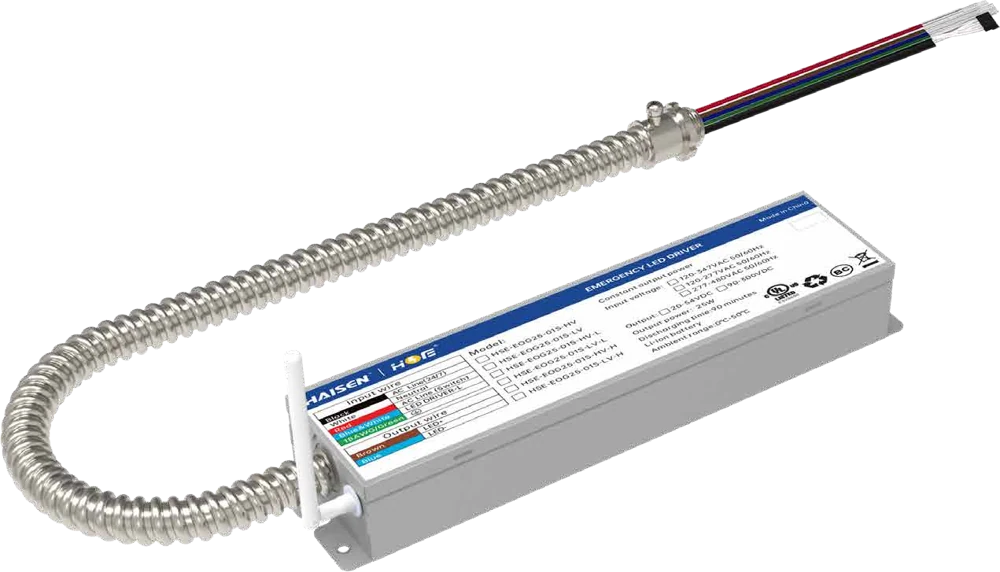

HSE-EOGXX-01SXX = 10 / 15 / 20 / 25 W · Li-ion · with conduit · regular or Bluetooth8.38 × 2.56 × 1.58 in (213 × 65 × 40.2 mm)
HSE-EOGXX-01SXX = 30 / 40 W · Li-ion · with conduit · regular or Bluetooth11.02 × 2.56 × 1.58 in (280 × 65 × 40.2 mm)
HSE-EOGXX-02SXX = 12 W · LiFePO4 · with conduit · regular or Bluetooth8.38 × 2.56 × 1.58 in (213 × 65 × 40.2 mm)
HSE-EOGXX-02SXX = 25 W · LiFePO4 · with conduit · regular or Bluetooth11.02 × 2.56 × 1.58 in (280 × 65 × 40.2 mm)
