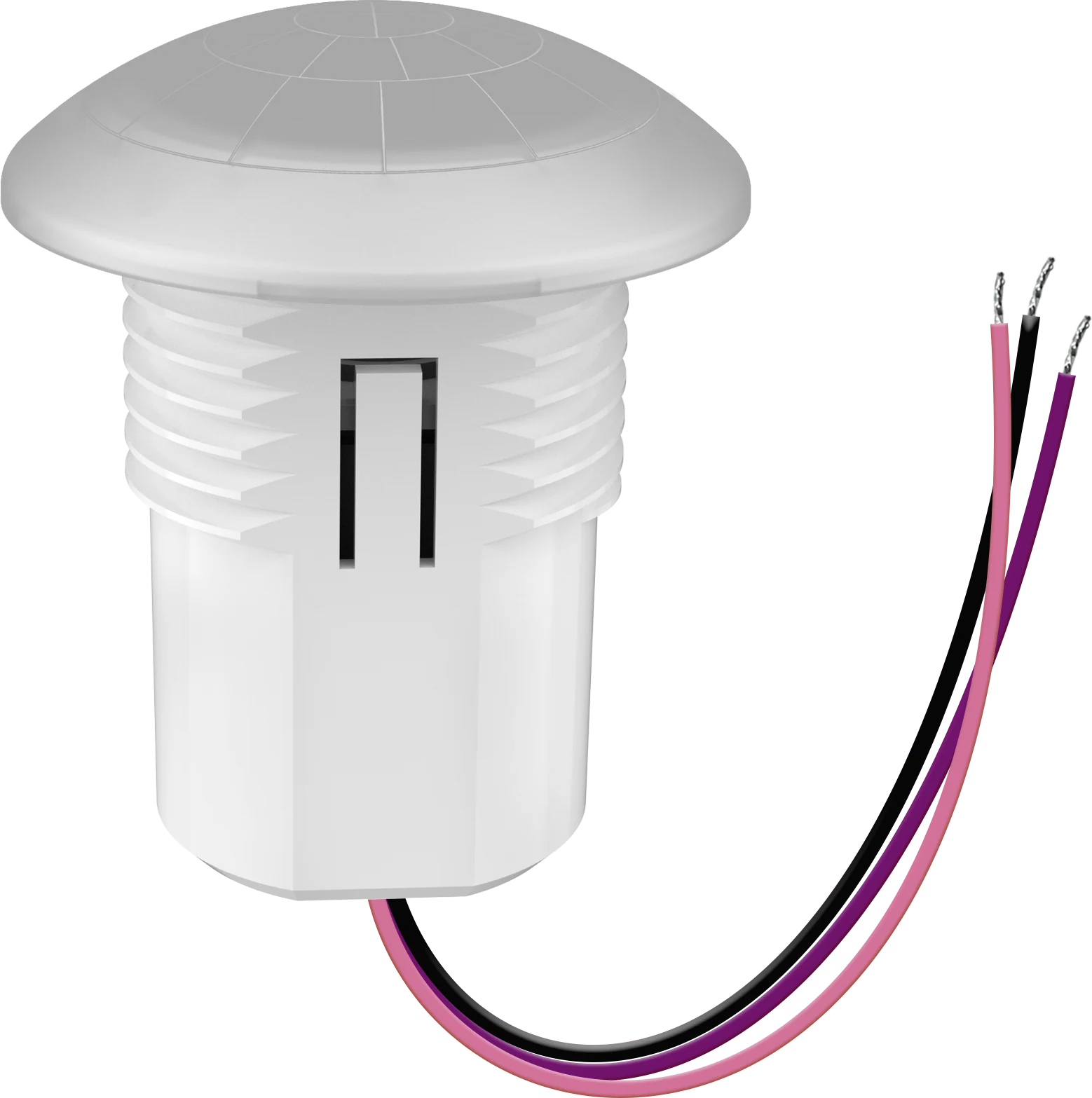

Tiny PIR Sensor, IP65
HSE-SP8L-5E
A tiny IP65 PIR sensor with remote control, 0–10 V control and bi-level dimming, suitable for dim-to-off applications.
PIRIP65Remote control
10.5–15 V DCInput
PIRSensor
< 4 m (13 ft)Max height
2–7 m radiusDetection range
Highlights.
- Specially designed tiny PIR sensor rated IP65.
- Bi-level dimmable with 0–10 V control, suitable for dim-to-off applications.
- Easy setup with a remote control (purchased separately).
- Daylight harvesting supported.
- Works with HAISEN emergency drivers when the driver's DIM+/DIM− is 10 ± 0.5 V.
Tech specs.
HSE-SP8L-5EElectrical
- Input voltage
- 10.5–15 V DC
- Input current
- < 10 mA
- Standby power
- < 0.5 W @ 10.5 V DC
- Control method
- 0–10 V dimming
- Emergency driver compatibility
- HAISEN emergency drivers; driver DIM+ and DIM− must be 10 ± 0.5 V. On mains supply the sensor works normally; on emergency supply it does not detect motion and is not controlled by the remote
Detection
- Sensor type
- PIR
- Lens
- Fresnel lens
- Detection angle
- 360° (ceiling mounted) · ≤ 120° (wall mounted)
- Max mounting height
- < 4 m (13 ft)
- Detection range
- 2–7 m radius
- Functions
- Daylight harvesting
Settings — regular version
- Control device
- Remote control (purchased separately)
- Warm-up period
- 10 s
- Detection area
- 25% / 50% / 75% / 100%
- Hold time
- 5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min
- Daylight threshold
- 2 lux / 10 lux / 30 lux / 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux / Disable
- Standby dimming level
- 10% / 20% / 30% / 50%
- Standby period
- 0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞
- Manual dimming
- 10–100% in manual mode, 60–100% in sensor mode
Environment
- Operating temperature
- −30 °C to +60 °C
- IP rating
- IP65
Mechanical
- Wiring
- VCC (black/white), GND/DIM− (pink), DIM+ (purple)
- Size
- Ø 29.8 × 34.9 mm (Ø 1.2 × 1.4 in)
Compliance
- Marks
- IP65
Models & ordering
| Model | Rating / option | Notes / dimensions |
|---|---|---|
| HSE-SP8L-5E | Regular · remote control · IP65 |
