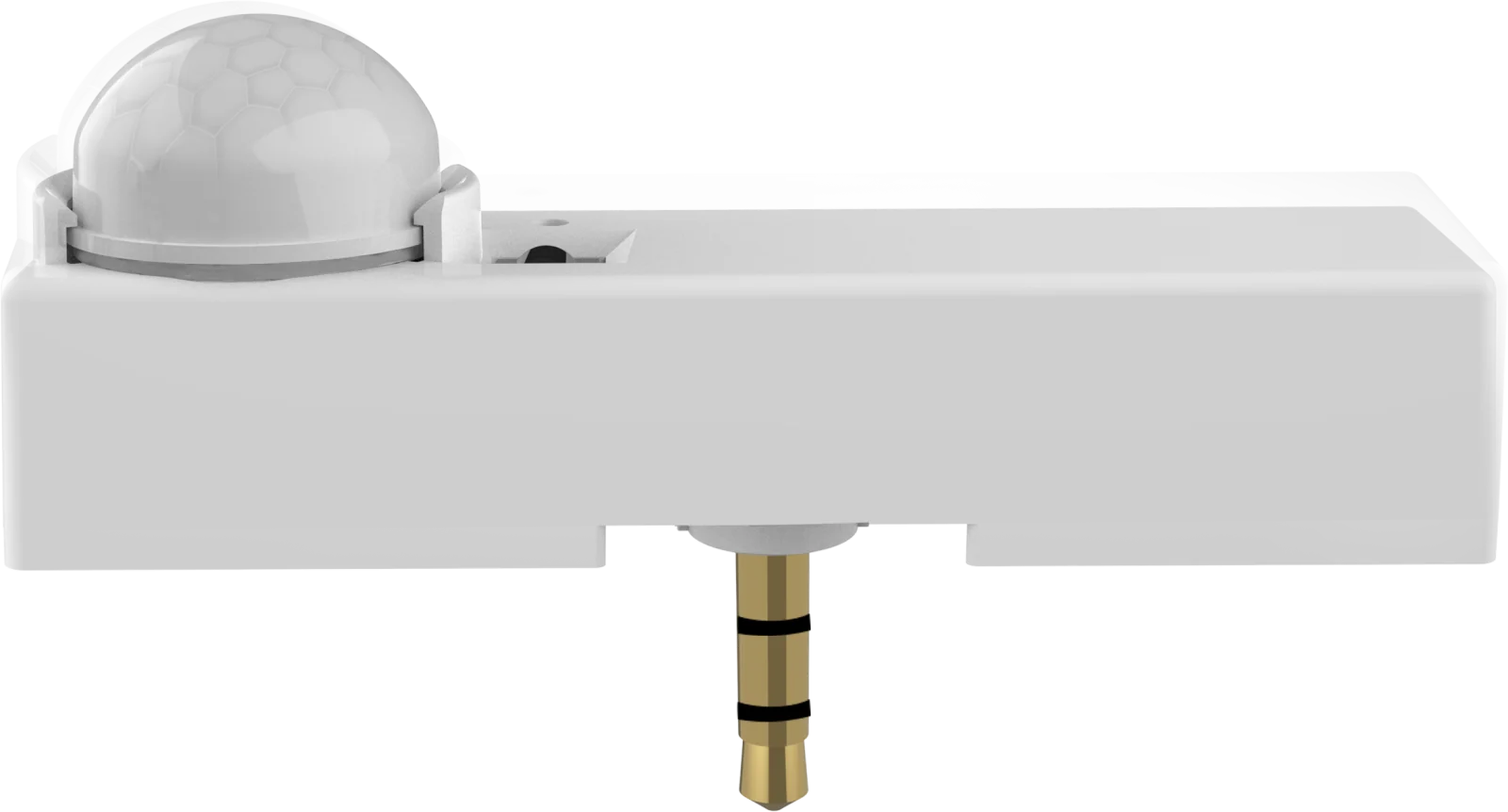

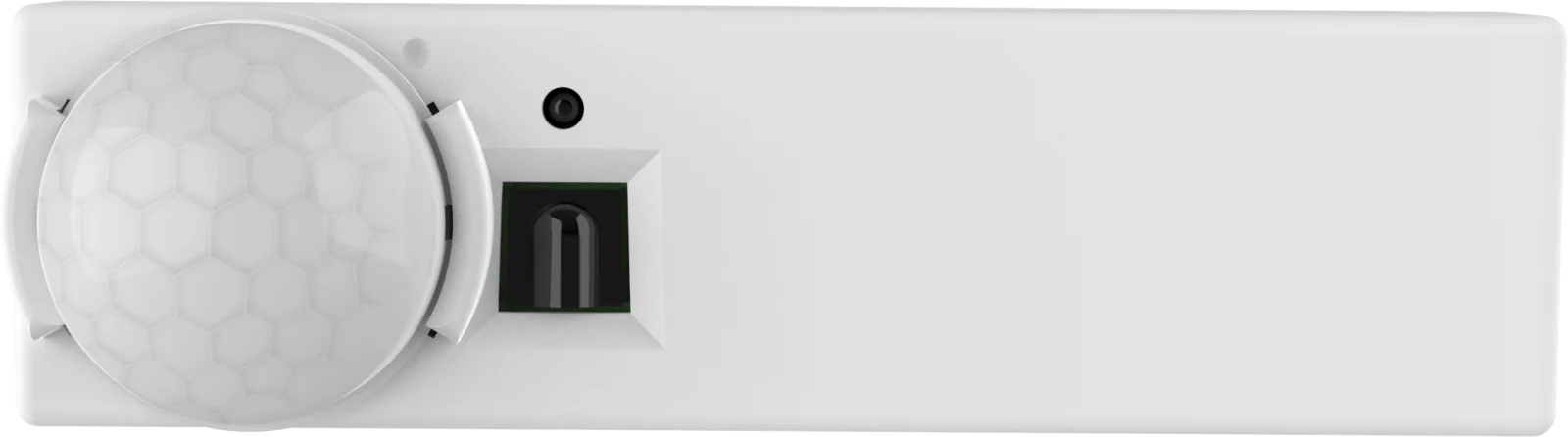

Slim Bluetooth PIR Sensor, Audio Jack

Electrical

Input voltage

10–15 V DC

Input current

< 15 mA

Standby power

< 0.5 W @ 10 V DC

Control method

0–10 V dimming

Detection

Sensor type

PIR

Lens

Fresnel lens

Detection angle

360° (ceiling mounted) · ≤ 120° (wall mounted)

Max mounting height

< 4 m (13 ft)

Detection range

2–4 m (6.56–13.12 ft) radius

Functions

Daylight harvesting

Bluetooth version

Control

HSE WISE app

Bluetooth range

30 m (98 ft)

Radio frequency

2.4 GHz (2402–2480 MHz)

Bluetooth version

5.4

Detection area

High / Medium / Low

Max dim level

1–100%, continuously adjustable

Hold time

5 s / 30 s / 1–120 min (1 min steps)

Standby dimming level

1–100% (1% steps)

Standby period

0 s / 5 s / 30 s / 1–120 min (1 min steps) / ∞

Daylight threshold

Disable / 50–2000 lux (50 lux steps)

Manual dimming

10–100% in manual mode, 60–100% in sensor mode

Environment

Operating temperature

−25 °C to +60 °C

IP rating

IP20

Mechanical

Connection

Audio jack

Size

67 × 18.5 × 24.5 mm (2.63 × 0.72 × 0.96 in)

Compliance

Marks

cURus Recognized E529048 · FCC · CE · RoHS · IP20

Warranty

Warranty

5 years
