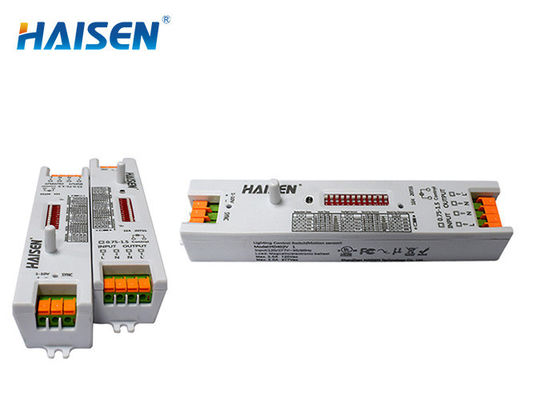

Small Dimmable Motion Sensor Load 400W LED Light For Tri - Proof Fixture

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD402V 1
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Stand-by Power <1W Operating Voltage 120~277VAC 50/60Hz
Stand-by Dimming Level 10%/20%/30%/50% Microwave Power <0.3mW
Detection Angle 30°-150° Life Time 50000h
High Light

dimmable occupancy sensor

,

dimmable pir sensor

Leave a Message
Product Description

CE RoHS Certificate Dimming Function Sensor For Tri-proof Fixture 5 Warranty






Features:

  • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via DIP switches.
  • Load 400W LED light, up to 8 50W lamps can be connected in series.
  • SYNC function: all lights connected to this sensor interface can be controlled synchronously.
  • 1-10V dimmable driver and on/off function.
  • IP 20 and 5 years warranty.






Specification:

Input Voltage Range 120-277Vac 50/60Hz
Sensor Parameters Hold time 5s/30s/1min/5min/10min/20min/30min
Detection Area 10%/50%/75%/100%
Daylight Sensor 2Lux/10Lux/50Lux/Disable
Mounting Height 2.5-4m(ceiling mounted) Max.3m(wall mounted)
Interfaces 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable
Detection range Max.ø12m(ceiling mounted) Max.10m(wall mounted)
Wireless Parameters Operating Frequency 5.8 GHz ±75 MHz
Function 0N/0FF+dimming function
Operating Environment Operating Temperature -20°C~+55°C
Safety & EMC Certificate Requirement CE, ROHS
Others Warranty 5 years
Installation Installed inside lamps
IP Rating IP20
Packaging Requirement Bubble pack, paper flat, outer carton.
Life 50000h

Ring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage

Demo

Application
