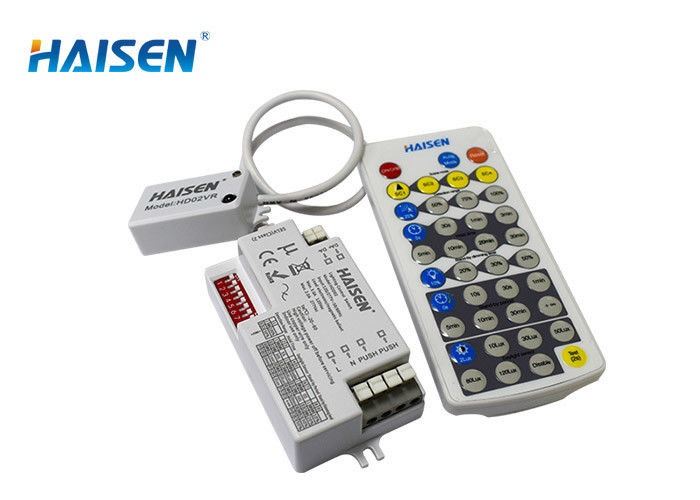

Indoor Installation 240VAC Dimmable Motion Sensor Lighting Control Switch

Place of Origin China
Brand Name HAISEN
Certification CE
Model Number HDD02
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Operating Voltage 120~240 VAC 50/60Hz Switching Capacity Max.200W(Control Gear) Max.400W(Incandescent Lamp)
Application Ceiling Light Hold Time 5s/30s/1min/ 10min
Mounting Height Max.6m(ceiling Mounted);Max.3m(wall Mounted) Detection Range Max.ø14m(ceiling Mounted);Max.10m(wall Mounted)
High Light

240VAC Dimmable Motion Sensor

,

HDD02 Dimmable Motion Sensor

,

240VAC Lighting Control Switch Motion Sensor

Leave a Message
Product Description

Indoor Installation Dimmable Motion Sensor Lighting Control Switch



DALI Sensor Dimmable Motion Sensor 120~240VAC Compact Design For Ceiling Light



Product Description

   Operating voltage    120~240 VAC 50/60Hz
   Switching capacity    Max.200W(Control gear) Max.400W(Incandescent lamp)
   Output    PUSH/ DALI
   Stand-by power    <1W
   Detection area    50%/100%
   Hold time    5s/30s/1min/10min/
   Daylight threshold    2Lux/10Lux/50Lux/Disable
   Stand-by period    0s/30S/20min/+∞
   Stand-by dimming level    10%/20%/30%/50%
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Interfaces    6-pole pluggable clamp terminal (L,N,PUSH,DALI) for 0.75- 1.5mm2 cable
   Mounting height    Max.6m(ceiling mounted);Max.3m(wall mounted)
   Detection range    Max.ø14m(ceiling mounted);Max.10m(wall mounted)
   Detection angle    30°-150°
   Operating temperature    -20°C~+60°C
   IP rating    IP20
   Life time    50,000 hours
   Warranty    5 years



Wiring diagram



Mechanical structure(mm)



DIP Switch Setting



Detection coverage



Demo
