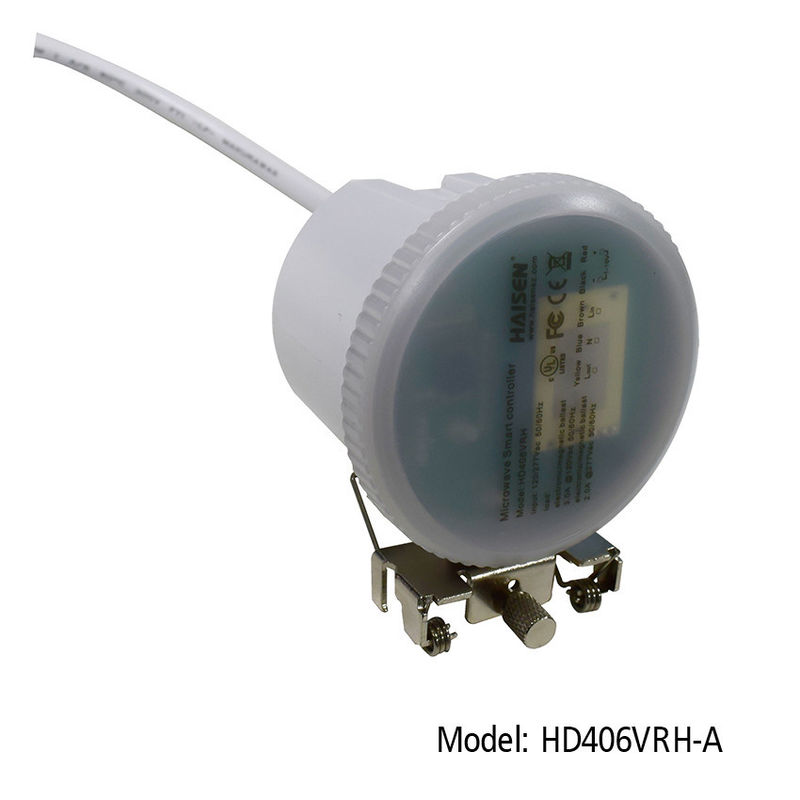

DIP Switch Dimmable Motion Sensor Remote Control For High Bay Light

Place of Origin China
Brand Name HAISEN
Certification UL FCC TUV SAA CE RED RoHS
Model Number HD406VRH 1
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details small white box, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Input Voltage 120~240VAC 50/60Hz OR 120-277VAC 50/60Hz Certificate UL FCC TUV SAA CE RED RoHS
Function Dimming Function ,DIP Switch And Remote Control Warranty 5 Years
Color White And Black(version B Only Black) Operating Temperature -35°C~+60°C
Mounting Height Max.15m/49.2ft IP Rating IP20
High Light

DIP Dimmable Motion Sensor

,

TUV Dimmable Motion Sensor

,

IP20 High Bay Light Motion Sensor

Leave a Message
Product Description

DIP Switch Dimmable Motion Sensor Remote Control For High Bay Light



Built-in 12 DIP Switch Motion Sensor Dimmer Switch Or Remote Control For UFO Highbay



Features:

1. 5.8GHz microwave motion sensor with dimmable function.

2. Supporting different installation and applications,for surface mounting,traditional LED high bay with aluminium reflector,UFO highbay or linear/triproof highbay light.

3. Max installation height is 15m/49.2ft.

4. All parameters can be setting by remote control.

5. Sensitive and reliable.

6.1-10v dimming.

7. IP 20 with 5 years warranty.



Product Description:

Operating voltage

EU version:120-240VAC,50Hz/60Hz

American veision:120-277VAC,50Hz/60Hz

Switching capacity

EU version:Incandescent: Max, 800W(120-220Vac); Max, 1000W(220-240Vac)
Controlgear: Max,400W(120-220Vac);Max,800W(220-240Vac)

American version:Max,3.0A@120Vac,50/60Hz;Max,2.0A@277Vac,50/60Hz

Stand-by power 1w
Control method on/off /1-10v dimming/ remote control(HD02R,HD03R,HD05R)
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 50%/100%
Hold time 5s/30s/1min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Control line EU version:Brown L,Blue N,Yellow L',Black 1-10v-,Red1-10v+ American version:Black L,White N,Red L',Gray 1-10v-,Purple 1-10v+
Mounting height Max.15m ( 49.21ft )
Deteation range MaxØ14m/45.93ft
Motion detection 0.5–1,5m/s
Packing method

①the small white box(110*100*105mm),

②paper flat,

③outer carton(465*300*465mm)with drying agent

Operating temperature –35℃–+60℃
IP rating IP 65
Warranty 5 years
Safty standard EN61347-1 EN61347-2-13 EN60598-1



  ON/OFF Control            Detection Area        Daylight Threshold         Remote Control



    Warranty 5 years               Hold Time             8-15m Highbay        Stand-by period       stand-by dimming level

Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 8-15m.



Mechanical structure

With 12 DIP switch and remote control to set all parameters



Detection area:
In this area,movement will be detected and able to trigger the sensor.100% detection area is also known as the strong sensitvity.

Hold Time:
The period of light keeping 100% brightness after moving objects leave the detection area.

Daylight Threshold:
Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable",the sensor works everytime it detects motion regardless the ambient brightness.

Stand-by Period:
The period of light keeping low output before it's completely switched off.When it's preset as"∞“, the light always keep at low output if no movement in the detection area and doesn't turn off.

Stand-by Dimming Level:
The definition of low output in the standby period.
 Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



With sufficient daylight,                 With insufficient daylight,             After the last detection and
even when motion detected,          when motion detected, light ON.   the present hold time
light remains OFF.                                                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.



When motion is detected,              After people leave the detection    After the last detection and
the sensor will switch on the         area, light remains 100%                the present hold time
light to 100% brighteness.             brightness within hold time.          elapsed, light OFF.

3. Function Demo - Dimmable control/Corridor function:



   With sufficient daylight,         With insufficient                    After last detection, the           After the stand-by
   even when motion                 daylight, when motion          light will be dimmed                period,light OFF.
   detected, light remains          detected,light ON.                down to the stand-by
   OFF.                                                                                   dimming level
                                                                                                                        (10%,20%,30% or 50%)
                                                                                                                        after holdtime.





User Notes:

1.Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.



Memory & Apply Mode

1. Press "ON/OFF button" to turn on the light or off.

2. To reset the parameters, Please follow the steps as below:

Step 1 - Press ON, to turn on the light if it was off at the start.

Step 2 - Press "Start" to the well-setting sensor.

Step 3 - Press the button of Detection range, Hold time, Stand-by dimming level,

Stand-by period and Daylight threshold one after the other in sequence (Press "+/-" to

set parameters).

Step 5 – Press “Memory” to memorize the settings.

Note: The interval of each parameter setting shall be controlled within 30s.

Isolated Setting Mode

1. Press "ON/OFF button" to turn on the light or off. Press "Scene", the remote will

activate settings that were saved last or remain at the factory default settings.

2. To reset the parameters, Please follow the steps as below:

Step 1 - Press ON, to turn on the light if it was off at the start.

Step 2- Press any button of "Scene", Test" and "Apply" to begin the sensor detection

mode.

Step 3 - Press the button of Detection range, Hold time, Stand-by dimming level,

Stand-by period and Daylight threshold one after the other in sequence.

3. To programme other lights in the array that have similar sensors to the same

programme.

Step 1 - Press "ON" to the second sensor

Step 2 - Press "Apply"

Notes:

1. Settings will be saved automatically and remain until you press reset again.

2. Light will flicker when setting each parameter.

3. The icon will flash when setting the corresponding parameter.
