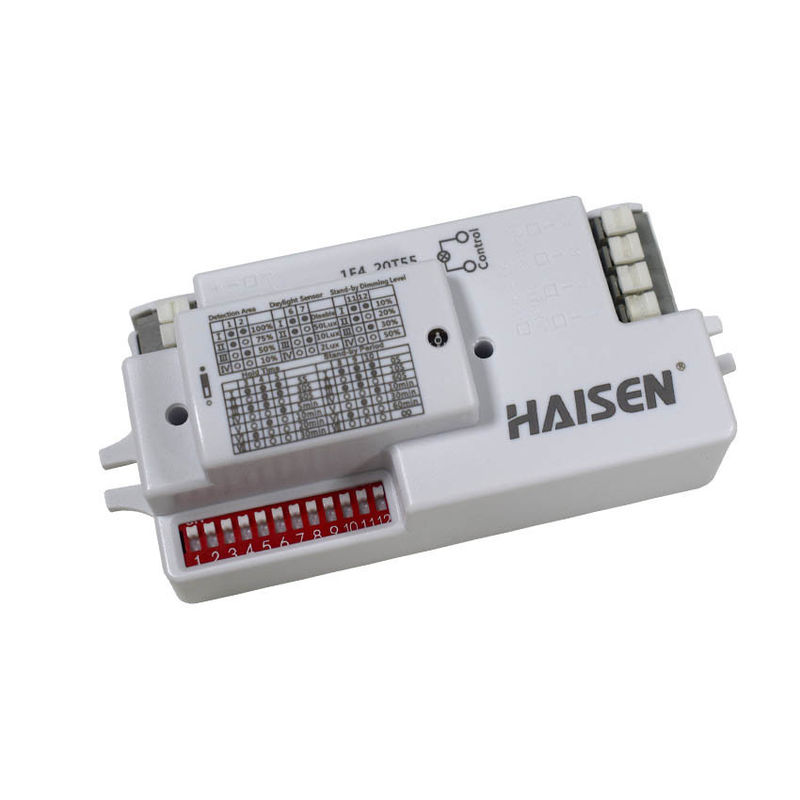

Ceiling Light Dimmable Motion Sensor DIP Switch Setting Detection Angle 30° - 150°

Place of Origin CHINA
Brand Name HAISEN
Certification RED TUV CE
Model Number HD01V
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 2-3 weeks for bulk order.
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Dimming Control Dimming +ON/OFF Function Operating Voltage 220-240VAC 50/60Hz
Stand-by Power <1W Mounting Height Max.6M
Operating Temperature -20℃ ~ +55℃ IP Rating IP20
High Light

dimmable occupancy sensor

,

dimmable pir sensor

Leave a Message
Product Description

Dimming Detector Built-in Microwave Sensor for Ceiling Light with Operating Voltage of 220-240Vac 50/60Hz



Features:

1. Dimming + ON/OFF options

2. Built-in for ceiling light in office, corridor and parking lot.

3. Max Mounting height is 6M.

4. DIP switch setting for more options of hold time, detection area and daylight threshold.

5. Daylight sensor for more intelligently control the light based on the natural light.

6. Max detection range could be 14M(Diameter).

7. Different detected sensitivity for more options of detected height.



Specification:

Operating voltage 220~240 VAC 50/60Hz
Switching capacity Max.400W
Stand-by power <1W
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/5min/10min/20min/30min
Stand-by period 0s/10s/1min/10min/30min/1h/∞
Stand-by dimming level 10%/20%/30%/50%
Daylight threshold 2Lux/10Lux/50Lux/Disable
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Interfaces 6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-)for 0.75-1.5mm 2 cable
Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.20m(wall mounted)
Operating temperature -20°C~+55°C
Detection angle 30°-150°
IP rating IP20
Size 103X45X31mm
Certificate TUV RED CE





Wiring diagram:



Dimensions(mm):



Mechanical Structure(mm):



Detection Coverage :



Settings:







Installation Method (Unit: mm)









Application:

1. Suitable for indoor installation to avoid false triggering due to external factors such as rain, wind or tree swing.
2. Shall not be installed in the place with all four metal shelters and small space (such as
galvanized-iron roof ).
