High-bay sensors

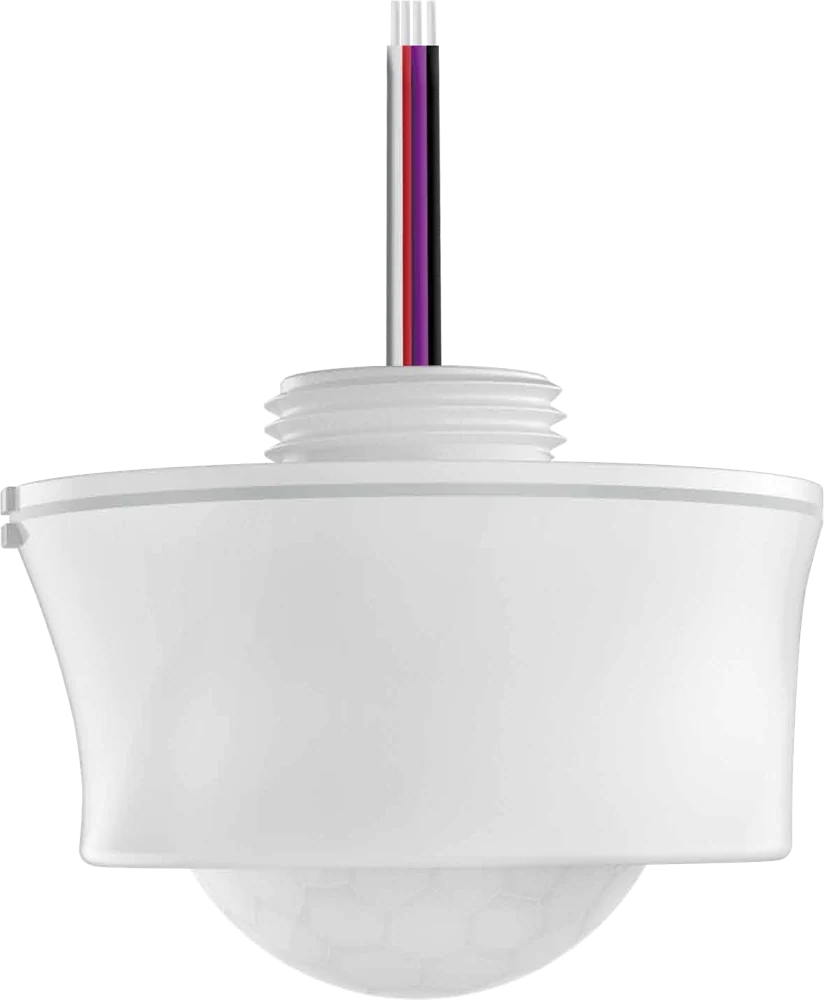

CCT-Tuning High-Bay PIR Sensor
HSE-XSCP1H-X · HSE-XSCP19H-X · HSE-XSCP19L-X
A 4-pin PIR high-bay sensor that tunes color temperature as well as brightness, with stepless 0–100% dimming.
CCT tuningBluetooth (HSE WISE)Remote control
12 VDCInput
0–100% steplessDimming
CCT switchingColor
App (BLE) or remoteControl
Highlights.
- 12 VDC, 0–10 V dimming.
- 4-pin design enables color tuning.
- Supports 0–100% stepless dimming and precise multi-color-temperature switching.
- Bluetooth version with app control, or regular version with remote control.
- Daylight harvesting and photocell function.
Tech specs.
HSE-XSCP1H-X · HSE-XSCP19H-X · HSE-XSCP19L-XElectrical
- Input voltage
- 12 VDC
- Dimming
- 0–10 V, 0–100% stepless
- Connector
- 4-pin (color tuning)
Detection & control
- Sensor type
- PIR
- Daylight
- Daylight harvesting and photocell
- Control
- Bluetooth (app) or regular version with remote
Applications
Models & ordering
| Model | Rating / option | Notes / dimensions |
|---|---|---|
| HSE-XSCP1H-X | High-bay | |
| HSE-XSCP19H-X | High-bay | |
| HSE-XSCP19L-X | CCT-tuning high-bay PIR sensor |
