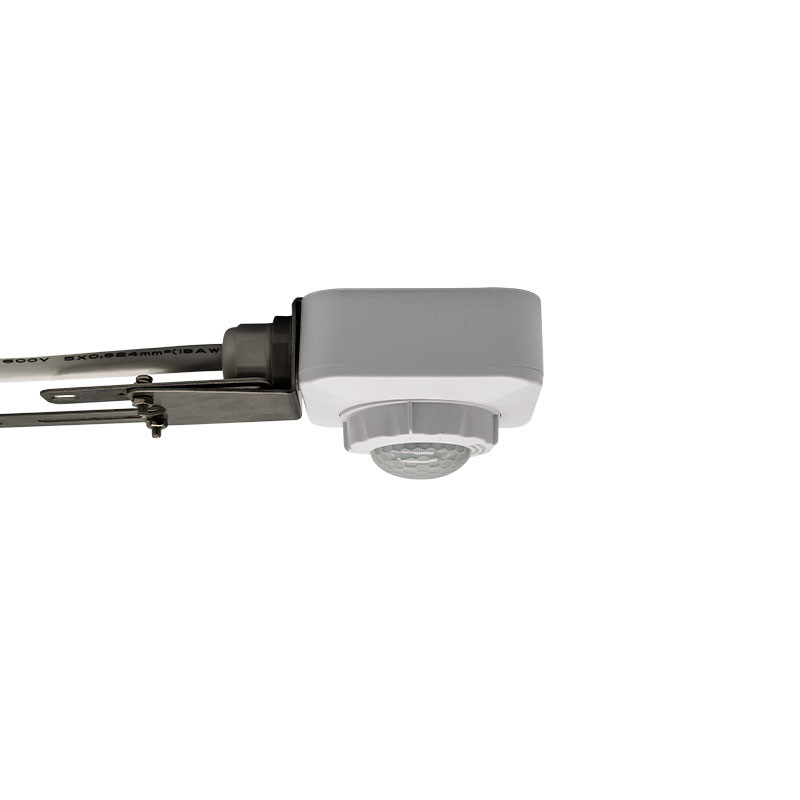

120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions

Place of Origin China
Brand Name HAISEN
Certification UL FCC
Model Number HD418VHP
Minimum Order Quantity 48pcs/ctn
Price Negotiable
Packaging Details Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time Standard Models Within 3 Weeks
Payment Terms D/A, D/P, T/T
Supply Ability 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Product Details
Height Max 12M Function ON/OFF Or Dimmable
Certifification UL FCC Input 120-347VAC
Application Suitable For Linear Light And UFO Industrial Lights Products External PIR Sensor
High Light

120V External PIR Sensor

,

347V External PIR Sensor

,

347V Infrared Motion Sensor

Leave a Message
Product Description

120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions



Specifications

120-347VAC Input, UL FCC Certifificated

Interchangeable With PIR Or Microwave Sensor Head

Highbay/ Lowbay, Dimmable, ON/OFF Versions

Suitable For Linear Light And UFO Industrial Lights



Technical Data



 Operating Voltage

 120-347VAC,50Hz/60Hz

 Switching Capacity

 120V: 3.3A/400W Control Gear; 800W Ballast or Incandescent

 277V: 1.44A/400W Control Gear; 1200W Ballast or Incandescent

 347V: 0.57A/200W Control Gear; 800W Ballast or Incandescent

 Stand-by power

 ≤1W 230VAC

 Control Method

 On/off / 1-10V Dimming

 Detection Angle

 <120 ° Without Glass Cover

 Detection Range

 Radius, 9m/29.52ft Max.

 Mounting Height

 2.5-6m/8.2-19.68ft Ceiling Mounted
 8-12m/26.24ft-39.37ft Ceiling Mounted

 Detection Area

 25%/50%/75%/100%

 Hold Time

 5s/30s/1min/3min/5min/10min/20min/30min

 Daylight Threshold

 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable

 Stand-by Period

 0s/10s/30s/1min/5min/10min/30min/60min/+∞

 Stand-by dimming level

 10%/20%/30%/50%

 IP Rating

 IP20

 Operating Temperature

 -20°C ~ 60°C

 Warranty

 3 Years



Wiring

120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions 0

120V 347V External PIR Sensor UL FCC Certificated ON OFF Versions 1

Performance

  • With sufficient daylight, the sensor keeps light OFF even motion getsdetected.
  • With insufficient daylight, the sensor turns light ON when motion gets detected.
  • After there's no motion detected, the sensor keeps light ON 100% for holdtime.
  • After holdtime, sensor dims light to standby dimming level for standby period.
  • The sensor turns OFF light automatically after the standby period when there's no motion detected.
