Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HAISEN |
| Certification: | CE |
| Model Number: | HD412S |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Bubble pack, paper flat, outer carton. |
| Delivery Time: | 1-3 days for sample order, 1-2 weeks for bulk order |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |

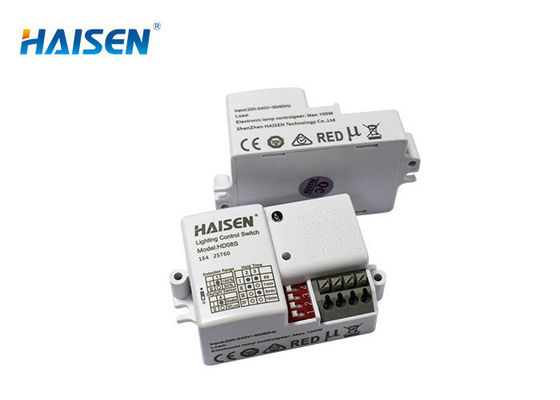

Compact Design 120VAC Microwave Sensor For Ceiling Triproof Light
Detailed Product Description
| Operating voltage | 120VAC 50/60Hz |
| Switching capacity | Max.100W |
| Stand-by power | <0.5W |
| Detection area | 50%/100% |
| Hold time | 5s/60s/3min/10min |
| Daylight threshold | 30Lux/Disable |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <1mW |
| Interfaces | 4-pole pluggable clamp terminal (L,N,N,L’) for 0.75-1.5mm2 cable |
| Mounting height | Max.6m(ceiling mounted);Max.3m(wall mounted) |
| Detection range | Max.ø12m(ceiling mounted);Max.10m(wall mounted) |
| Detection angle | 30°-150° |
| Operating temperature | -25°C~+60°C |
| IP rating | IP20 |
| Life time | 50,000 hours |
| Warranty | 5 years |
Wiring diagram
Mechanical structure(mm)
DIP Switch Setting
Detection coverage
Demo
Application
