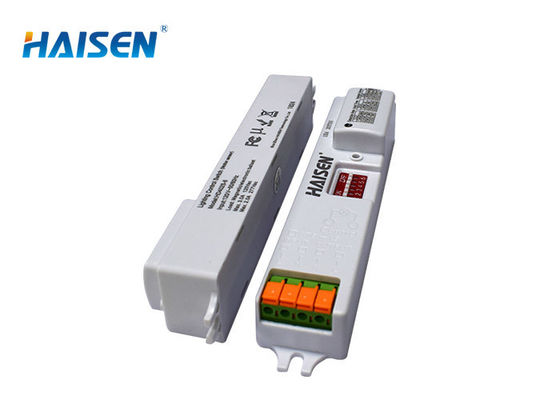

Wall Mounted On Off Switch Sensor HF Movement Detector TUV Certification
| Place of Origin | China |
|---|---|
| Brand Name | HAISEN |
| Certification | UL FCC |
| Model Number | HD402S-6 |
| Minimum Order Quantity | 100PCS |
| Price | Negotiable |
| Packaging Details | Bubble pack, paper flat, outer carton. |
| Delivery Time | 1-3 days for sample order, 1-2 weeks for bulk order |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs per month |
Product Details
| Operating Voltage | 120~277 VAC 50/60Hz | Detection Area | 10%/50%/75%/100% |
|---|---|---|---|
| Hold Time | 5s/90s/5min/15min | Daylight Threshold | 2Lux/10Lux/50Lux/Disable |
| Microwave Frequency | 5.8GHz±75MHz | Mounting Height | Max.6m(ceiling Mounted);Max.3m(wall Mounted) |
| High Light | microwave switch occupancy sensor,microwave motion detector |
||
Product Description
Wall Mounted On Off Switch Sensor HF Movement Detector TUV Certification
Detailed Product Description
| Operating voltage | 120~277 VAC 50/60Hz |
| Switching capacity | Max.3.0A@120Vac,Max.2.0A@277Vac |
| Stand-by power | <1W |
| Detection area | 10%/50%/75%/100% |
| Hold time | 5s/90s/5min/15min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Interfaces | 4-pole pluggable clamp terminal(L,N,N,L’)for 0.75-1.5mm2 cable |
| Mounting height | Max.6m(ceiling mounted);Max.3m(wall mounted) |
| Detection range | Max.ø14m(ceiling mounted);Max.10m(wall mounted) |
| Detection angle | 30°-150° |
| Operating temperature | -20°C~+60°C |
| IP rating | IP20 |
| Life time | 50,000 hours |
| Warranty | 5 years |
Wiring diagram
Mechanical structure(mm)
DIP Switch Setting
Detection coverage
Demo
Application
