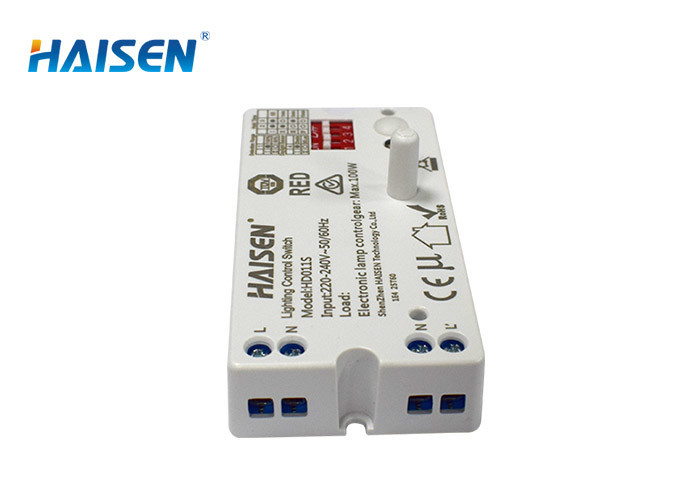

IP 20 Temperature Control Microwave Motion Sensor With Automatic Switch For Lights
| Place of Origin | China |
|---|---|
| Brand Name | HAISEN |
| Certification | ROHS, CE TUV RED |
| Model Number | HD011S |
| Minimum Order Quantity | 100PCS |
| Price | Negotiation |
| Packaging Details | Bubble pack, paper flat, outer carton. |
| Delivery Time | 1-3 days for sample order, 1-2 weeks for bulk order |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs per month |
Product Details
| Detection Area | 50%/100% | Hold Time | 5s/60s/3min/10min |
|---|---|---|---|
| Daylight Threshold | 30Lux/Disable | IP Rating | IP20 |
| Operating Voltage | 220~240 VAC 50/60Hz | Microwave Frequency | 5.8GHz±75MHz |
| Cover Color | White | Certificates | ROHS, CE TUV RED |
| High Light | microwave switch occupancy sensor,microwave motion detector |
||
Product Description
IP 20 Temperature Control Microwave Motion Sensor With Automatic Switch For Lights
Features:
- HD011S On/Off Control.
- Microwave Mition Sensor.
- Columnar Antenna size of 76.9*39.9*27.7mm.
- Unique design with loop in and loop out, easy to instal.Detection area, hold time and daylight sensor are selectable via DIP switch.
- 5.8GHz high frequency microwave.
- 4-pole press-in terminal (L, N,N,L′),easy assembly.
- Detection area, time delay and daylight threshold can be precisely set via DIP switch.
Detailed Product Description
| Input | Voltage Range | 220~240 VAC 50/60Hz |
| Output | Load Type | Max.100W |
| Stand-by Power | ≤0.5W | |
| Sensor Parameters | Hold time | 5s/60s/3min/10min |
| Detection Area | 50%/100% | |
| Daylight Sensor | 30Lux/Disable | |
| Mode | Constant on mode/Sensor mode | |
| Mounting Height | Ceiling mounting 3-6m | |
| Sensing Area | Max12m | |
| Wireless Parameters | Operating Frequency | 5.8 GHz ±75 MHz |
| Dimming Control | 0N/0FF | |
| Operating Environment | Operating Temperature | -25°C~+60°C |
| Safety & EMC | Certificate Requirement | ROHS, CE TUV RED |
| Others | Wiring Method | 4-pole pluggable clamp terminal(L,N,N,L’) for 0.75-1.5mm 2 cable |
| IP Rating | IP20 | |
| Installation Size | 76.9*39.9*27.7mm | |
| Packaging Requirement | Bubble pack, paper flat, outer carton. | |
| Life | 50000h |
Wiring diagram
Mechanical structure(mm)
DIP Switch Setting
Detection coverage
Demo
Application
widely applicated in corridor , fire exit ,warehouse , base - ment and other indoor lighting places .
