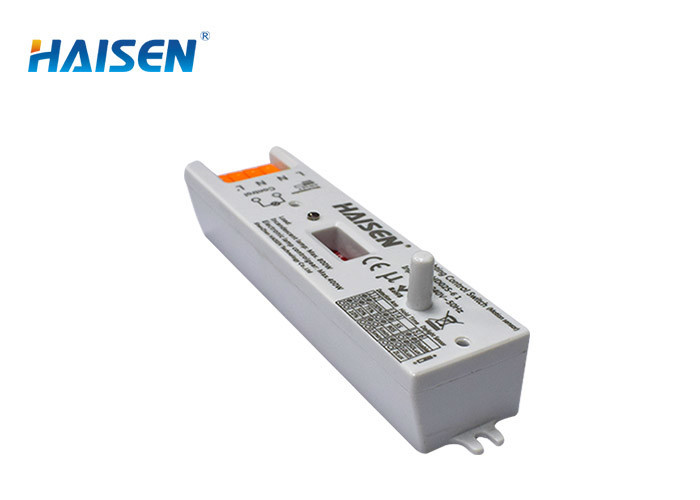

Needle Antenna 14m Motion Sensor ON OFF Switch For Tri Proof Lights

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE
Model Number: HD02S-6 1
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications Product Description Request A Quote
Operating Voltage: 220~240 VAC 50/60Hz
Switching Capacity: Max.400W(Control Gear) Max.800W(Incandescent Lamp)
Stand-by Power: ≤0.5W
Interfaces: 4-pole Pluggable Clamp Terminal(L,N,N,L’)for 0.75-1.5mm2 Cable
Mounting Height: Max.4.5m(ceiling Mounted)
Detection Range: Max.ø14m(ceiling Mounted);Max.10m(wall Mounted)
High Light:

14m Motion Sensor ON OFF Switch


10m Motion Sensor ON OFF Switch


12m DIP Switch Motion Sensor

Product Description

Needle Antenna 14m Motion Sensor ON OFF Switch For Tri Proof Lights


Microwave Motion Sensor On-off Control With Needle Antenna For Tri-proof Lights



  • On-Off function for tri-proof light.
  • Stand-by power ≤ 0.5W.
  • detection area, hold time and daylight sensor could be set via DIP Switch.
  • 5 Years Guarantee.
  • HD02S-6 1 is an innovative motion sensor, switch on the light on detection of movement, and switch Off a hold time when there is no motion detected.
  • Motion can be detected through plastic, glass and thin non-metal materials.


ON-OFF function


Detailed Product Description

   Operating voltage    220~240 VAC 50/60Hz
   Switching capacity    Max.400W(Control gear)   Max.800W(Incandescent lamp)
   Function    ON/OFF Function
   Cover Color    White
   Stand-by power    ≤0.5W
   Detection area    10%/50%/75%/100%
   Hold time    5s/90s/5min/15min
   Daylight threshold    2Lux/10Lux/50Lux/Disable
   Microwave frequency    5.8GHzt±75MHz
   Microwave power    <0.3mW
   Interfaces    4-pole pluggable clamp terminal(L,N,N,L’)for 0.75-1.5mm2 cable
   Mounting height    Max.6m(ceiling mounted);Max.3m(wall mounted)
   Detection range    Max.ø14m(ceiling mounted);Max.10m(wall mounted)
   Detection angle    30°-150°
   Operating temperature    -20°C~+55°C
   IP rating    IP20
   Life time    50,000 hours
   Warranty    5 years
