ON OFF Function IP20 Automatic Motion Sensor Light Switch Flash Mounted

Place of Origin China
Brand Name HAISEN
Certification CE
Model Number HD05S
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Operating Voltage 220~240 VAC 50/60Hz Switching Capacity Max.400W(Control Gear);Max.800W(Incandescent Lamp)
Color White Stand-by Power ≤0.5W
Detection Area 10%/50%/75%/100% Hold Time 5s/90s/5min/15min
Mounting Height Max.6m(ceiling Mounted);Max.3m(wall Mounted) IP Rating IP 20
High Light

0.5W Automatic Motion Sensor Light Switch

,

IP20 Automatic Motion Sensor Light Switch

,

0.5W Light Motion Detector

Leave a Message
Product Description

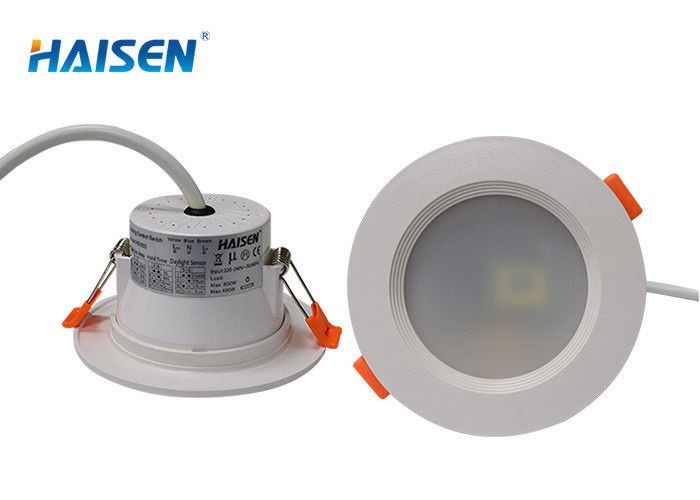

ON OFF Function Automatic Motion Sensor Light Switch Flash Mounted



Flash mounted design ON/OFF Function for Ceiling Recessed Light in corridor and pathway



Features:

  • Radar sensor with ON/OFF function.
  • Special design & 5.8GHz Micorwave Motion Sensor for easily installed inside of the lighting fixture and widely used for ceiling / panel / recessed light indoor.
  • Could detect the movement and signaled to LED light to control the light on / off to save energy.
  • Intelligently detect the daylight and keep the light off even detecting any movement.
  • when the natural light is sufficient.
  • Detection area, hold time and daylight sensor can be precisely set via DIP switch.
  • IP Rating would be IP20 and 5 years of warranty.​

Specifications:

Input Operating Voltage 220-240VAC 50/60Hz
Stand-by Power ≤0.5W
Output Load Type Max. 400W (Control gear); Max.800W(Incandescent lamp)

Sensor

Parameters

Hold Time 5s/90s/5min/15min
Detection area 10% / 50% / 75% / 100%
Daylight Threshold 2Lux/10Lux/50Lux/Disable
Mounting Height Max.6m(ceiling mounted); Max.3m(wall mounted)
Detection Range Max.14m(ceiling mounted); Max.10m(wall mounted)

Wireless

Parameters

Operating Frequency 5.8 GHz ±75 MHz
Dimming Control 0N/0FF

Operating

Environment

Operating Temperature -20℃~+55℃
Certificate Certificate Requirement CE / RoHs





Others

IP Rating IP20 (Built-in)
Installation Size 144.4*28*27.5mm
Packaging Requirement Bubble bag +Outer Carton(K=A)
Life 50000h







   ON/OFF         Daylight sensor    Detection area    Warranty 5 years        Hold time



Dimensions:

Special design & 5.8GHz Micorwave Motion Sensor for easily installed inside of the lighting fixture and widely used for ceiling / panel / recessed light indoor.





Wiring diagram:



Detection coverage:





Dip switch settings:





      Detection area                    Hold-time                      last detection



     Detection area means          Hold-time means the      Daylight sensor priors

     detection coverage. It          Time period the light      To motion sensor. Set

     can be adjusted by              Will be ON after the         threshold for specific

     combining DIP                     last detection                  needs. If disable, only

     switches for specific                                                   motion sensor works.

     application



Application Demo - Function Demo-On/off control:







       With sufficient daylight,                      With insufficient daylight,                       After the last detection

       even when motion                               when motion detected,                          and the present hold

       detected, light remains                        light ON.                                               time elapsed, light OFF.
