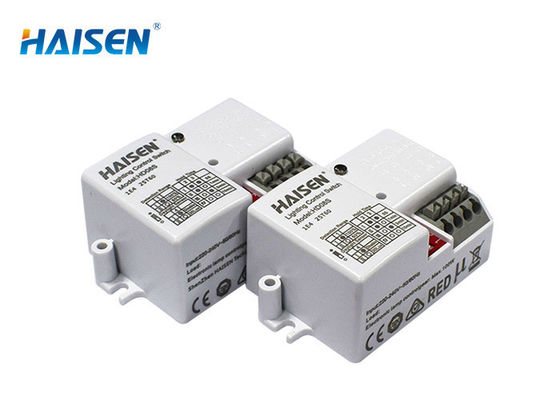

Automatic HD08S Motion Sensor ON OFF Switch Super Compact Design

Place of Origin China
Brand Name HAISEN
Certification TUV, CE, RED, SAA
Model Number HD08S
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Hold Time 5s/60s/3min/10min Daylight Threshold 30Lux/Disable
Switching Capacity Max.100W Design Super Compact
Operating Voltage 220~240 VAC 50/60Hz Detection Area 50%/100%
Mounting Height Max.6m(ceiling Mounted);Max.3m(wall Mounted) IP Rating IP 20
Warranty 5 Years
High Light

HD08S Motion Sensor ON OFF Switch

,

TUV Automatic Motion Sensor

,

HD08S Automatic Motion Sensor

Leave a Message
Product Description

Automatic HD08S Motion Sensor ON OFF Switch Super Compact Design



Super compact Microwave Motion Sensor with automatic switch ON/OFF function



Features:

  • 5.8GHz Micorwave Motion Sensor with ON/OFF function.
  • Super compact design with size of 60.6*35.5*25.1mm to be easily installed inside of kinds of LED light.
  • Automatically detect the daylight and remain OFF even detect any movement when the natural light is sufficient.
  • Particularly good value for money which would cost down the whole project.
  • Getting different effect and requirements by selecting different detection area, hold time and daylight threshold set by the DIP switch.
  • IP Rating would be IP20 and 5 years of warranty.
  • Certificate of TUV, CE, RED, SAA.

Specifications:

Input Operating Voltage 220-240VAC 50/60Hz
Stand-by Power ≤0.5W
Output Load Type Max. 400W (Control gear); Max.800W(Incandescent lamp)

Sensor

Parameters

Hold Time 5s/60s/3min/10min
Detection area 50% / 100%
Daylight Threshold 30Lux/Disable
Mounting Height Max.5m(ceiling mounted); Max.3m(wall mounted)
Detection Range Max.12m(ceiling mounted); Max.10m(wall mounted)

Wireless

Parameters

Operating Frequency 5.8 GHz ±75 MHz
Switch Control 0N/0FF

Operating

Environment

Operating Temperature -20℃~+60℃
Certificate Certificate Requirement CE / TUV / RoHs / RED





Others

IP Rating IP20 (Built-in)
Installation Size 60.6 X 35.5 X 25.1mm
Packaging Requirement Bubble bag +Outer Carton(K=A)
Life 50000h





   ON/OFF        Daylight sensor     Detection area    Warranty 5 years        Hold time



Dimensions:

Super compact design with size of 60.6*35.5*25.1mm which could be easily installed inside of kinds of LED light.



Wiring Diagram:

4-pole press-in terminal (L, N,N,L′),easy assembly.



Detection coverage:

Max. detection range will be 12m for ceiling mounted; Max. Detection range will be 10m for wall mounted.



Dip switch settings:



   Detection area                           Hold time                        Daylight threshold



   Detection area means          Hold-time means the            Daylight sensor priors

   detection coverage. It          Time period the light             to motion sensor. Set

   can be adjusted by              Will be ON after the                threshold for specific

   combining DIP                     last detection.                        needs. If disable, only

   switches for specific                                                          motion sensor works.

   application.



Application:

The motion sensor can penetrate most of objects such as glass, wood, plastic but metal. It won’t be affected by ambient temperature, dust and widely applied in office, corridor, fire exit, warehouse, basement and other indoor lighting places for saving energy.
